Connections When Not Using a PS12 (continued)
Local Source Connections
Connect local audio sources to the LSWP Local Source Wall Plate using the stereo
interconnect cables provided. Use Cat-5 from the LSWP to the S12, and connect
as shown below. Only one local source per zone can be connected.
S12
+ R
GND - L + GND V+ V+ IR- IR
+
-
White/Green
Green
Brown
White/Brown
Orange
White/Orange
Blue
White/Blue
LSWP
S12 Local Source
Wall Plate
Cat-5
Blue
White/Blue
Orange
White/Orange
Green
White/Green
Brown
White/Brown
Audio Out
LR
IR
Window
Local Audio Source
Back
Front
ELAN
C45P
To S12 Local
Source Inputs
IR Emitter
(included w/ LSWP)
1 M Stereo
Interconnect Cable
(included w/ LSWP Kit)

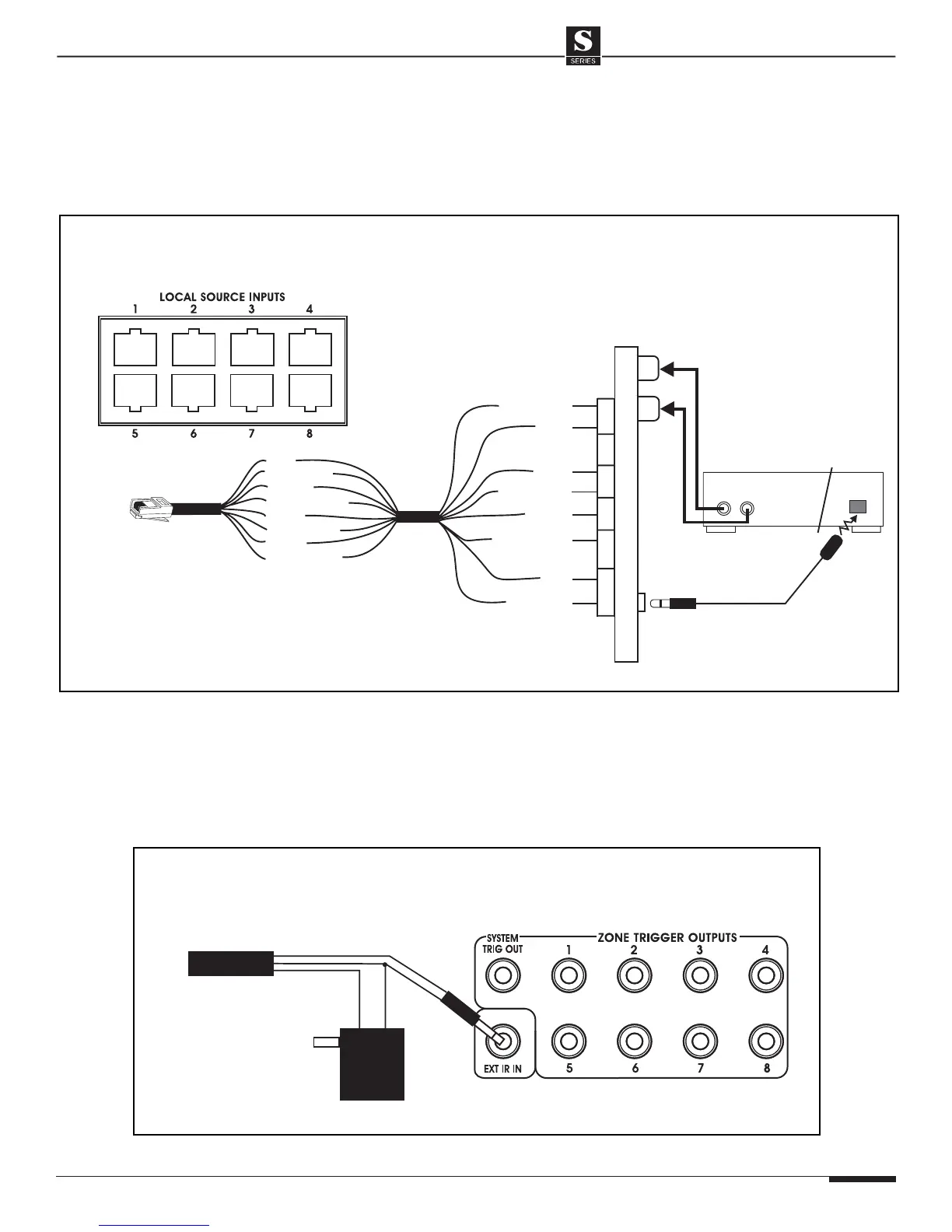

Local Source Input Connections w/ LSWP (no PS12)
External IR Connections
It is necessary to provide +12VDC for any External IR device when not using a
PS12 Precision Panel. Connect only the IR and GND leads from an IR receiver,
keypad, or other IR device to the EXT IR IN port on the S12. See VIA!TOOLS Help
for information about External IR programming.
S12
IR Receiver
+12
VDC
+12VDC
GND
IR
Tip
Sleeve
External IR Receiver to S12 External IR Input
