ELAN HOME SYSTEMS
SYSTEM12 INSTALLATION MANUAL
Page 52 © ELAN Home Systems 2004 • All rights reserved.
Video Switching (continued)

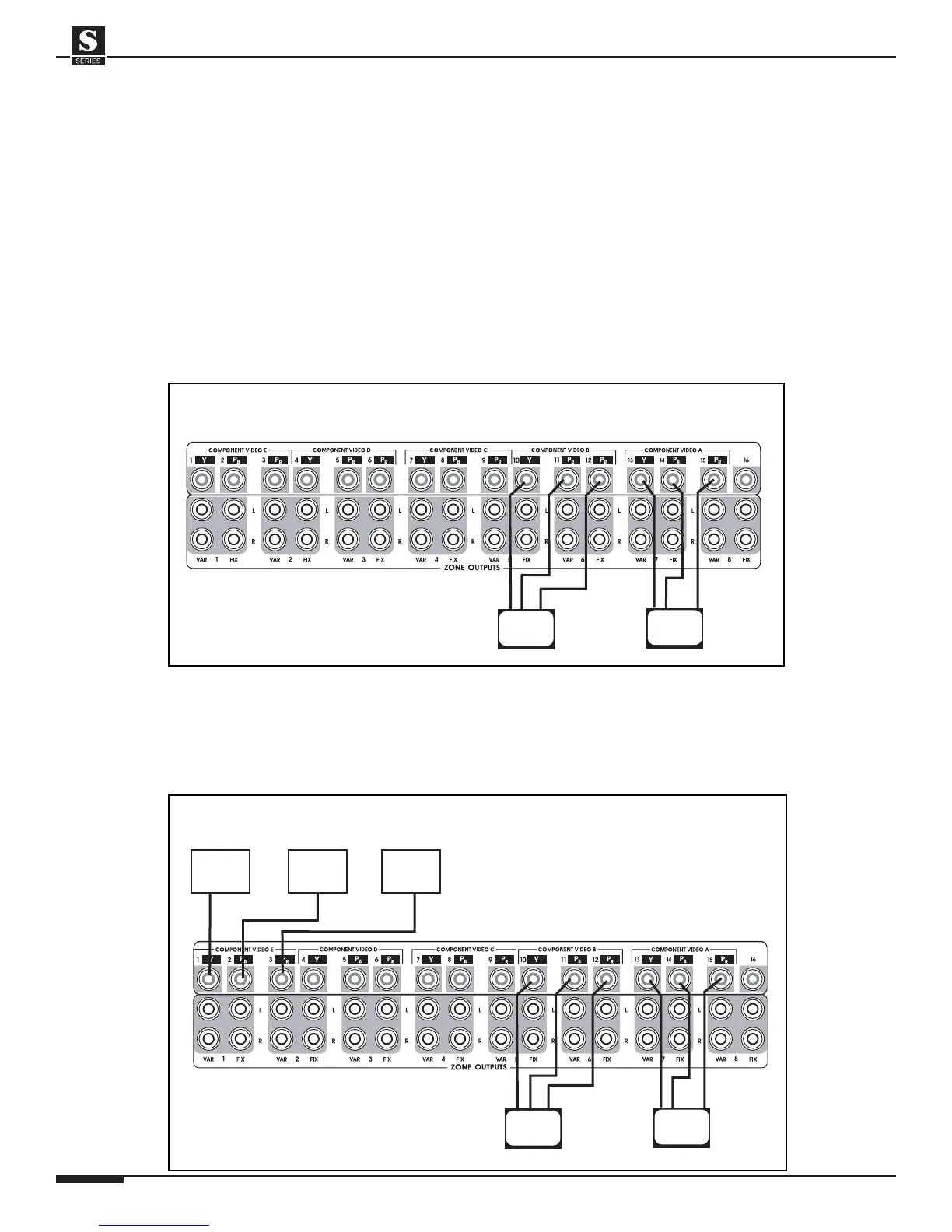

Video Zone Output Connections: Component
Component video outputs are grouped using VIA!
®
Tools setup software. As
with the Component video inputs, these outputs are designated by a letter and
go backwards in order. Output 16 is not used as a Component video output.
These groups are labeled:
• A: Outputs 13, 14, 15 • D: Outputs 4, 5, 6
• B: Outputs 10, 11, 12 • E: Outputs 1, 2, 3
• C: Outputs 7, 8, 9
Use high quality Component video cables to connect from the S12’s Zone Video
Outputs to TVs or monitors located in specific zones of the house. Please consult
VIA!Tools software for additional information about Component video routing.
Video Zone Output Connections: Composite & Component
The S12 allows you to route both Composite video and Component video simulta-
neously. Connect the Video Zone Outputs as needed, making sure to maintain
Group connections for Component video. Use VIA!Tools setup software to assign
outputs to specific zones as required by the system’s architecture. See VIA!Tools
for detailed programming instructions.
