Elan System12 User Manual

ELAN HOME SYSTEMS
SYSTEM12 INSTALLATION MANUAL
Page 34 © ELAN Home Systems 2004 • All rights reserved.
Tip (Blue)
ELAN Precision Panels save
time and make sense out
of complex wiring jobs!
XM FM
12
3
4
5 6 MONO
+
--
1
ZONE
1
LOCAL
22
ZONE LOCAL
33
ZONE LOCAL
4
ZONE
4
LOCAL
55
ZONE LOCAL
6
ZONE
6
LOCAL
8
LOCAL
8
ZONE
7
LOCAL
7
ZONE VIA!POWER
16VDC / 10A
16VDC / 4A
VIA!NET
TO SENSE INPUTS
USE STEREO 3.5mm PLUGS ONLY
EXTIR ANTENNA
Connections When Not Using a PS12 (continued)

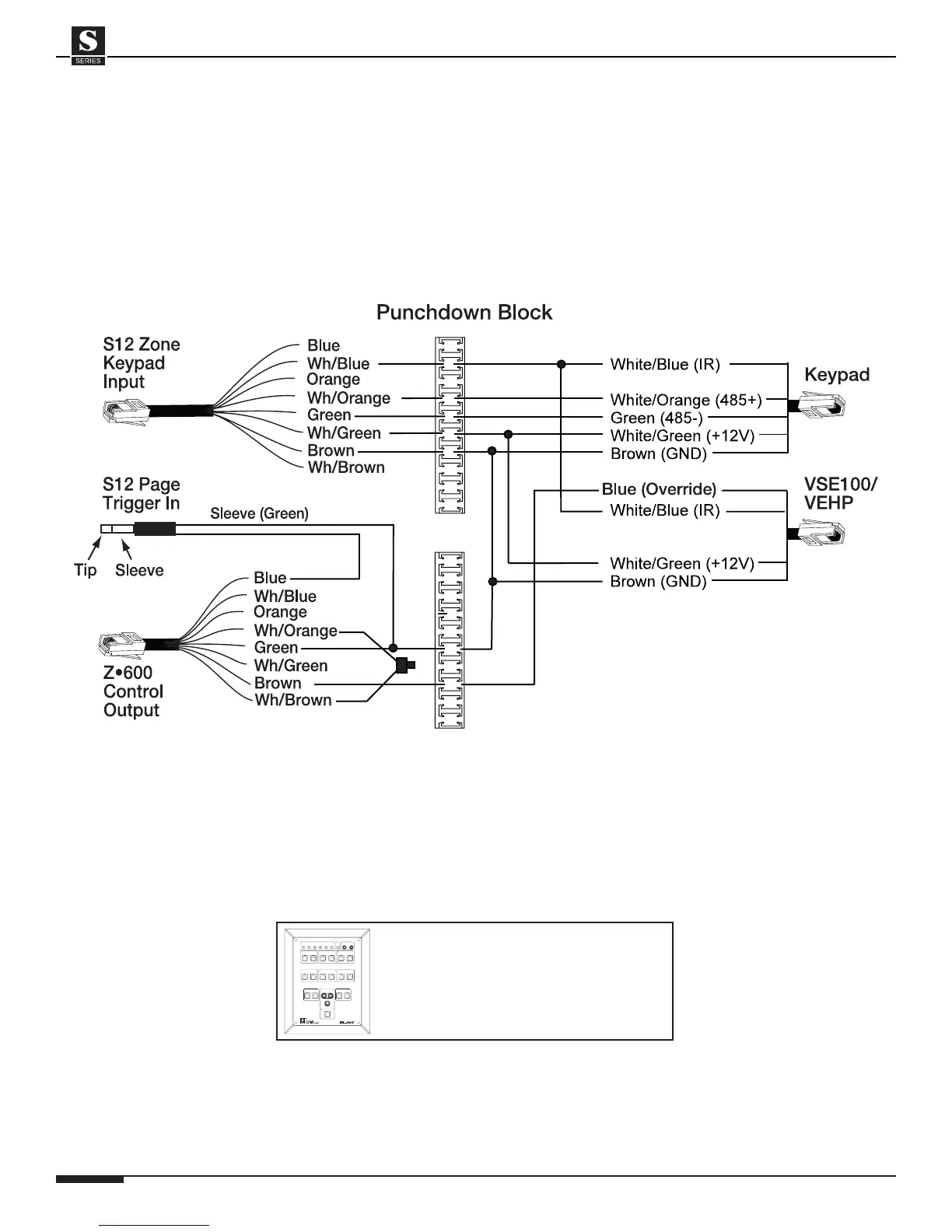

VSE/VSE100/VEHP Electronic Volume Control Connections
(No PVSE)
If not using a PS12 or a PVSE Precision Panel, interconnects will need to be made
between the electronic volume control, the S12, the Z•600 Communications Controller,
and the system amplifier. These connections include IR, 12VDC, Ground, and Override,
as shown below. Please note the Z•600 Control Output connections: WH/ORANGE ties to
WH/BROWN. GREEN is VC- and Brown is VC+.
