ELAN HOME SYSTEMS
SYSTEM12 INSTALLATION MANUAL
Page 40 © ELAN Home Systems 2004 • All rights reserved.
Audio Connections
There are 12 Audio Source Inputs and 12 Audio Source Loop Outputs on the S12.
Each system source will be connected to a specific Source Input, allowing audio
distribution to any zone of the S12. Each Source Input corresponds to the same-
numbered IR Output port.
Source Input Connections
Connect the Left/Right audio output of each source to the Left/Right Source Input
using stereo RCA audio cables. Make sure to maintain Left/Right channel
connections.

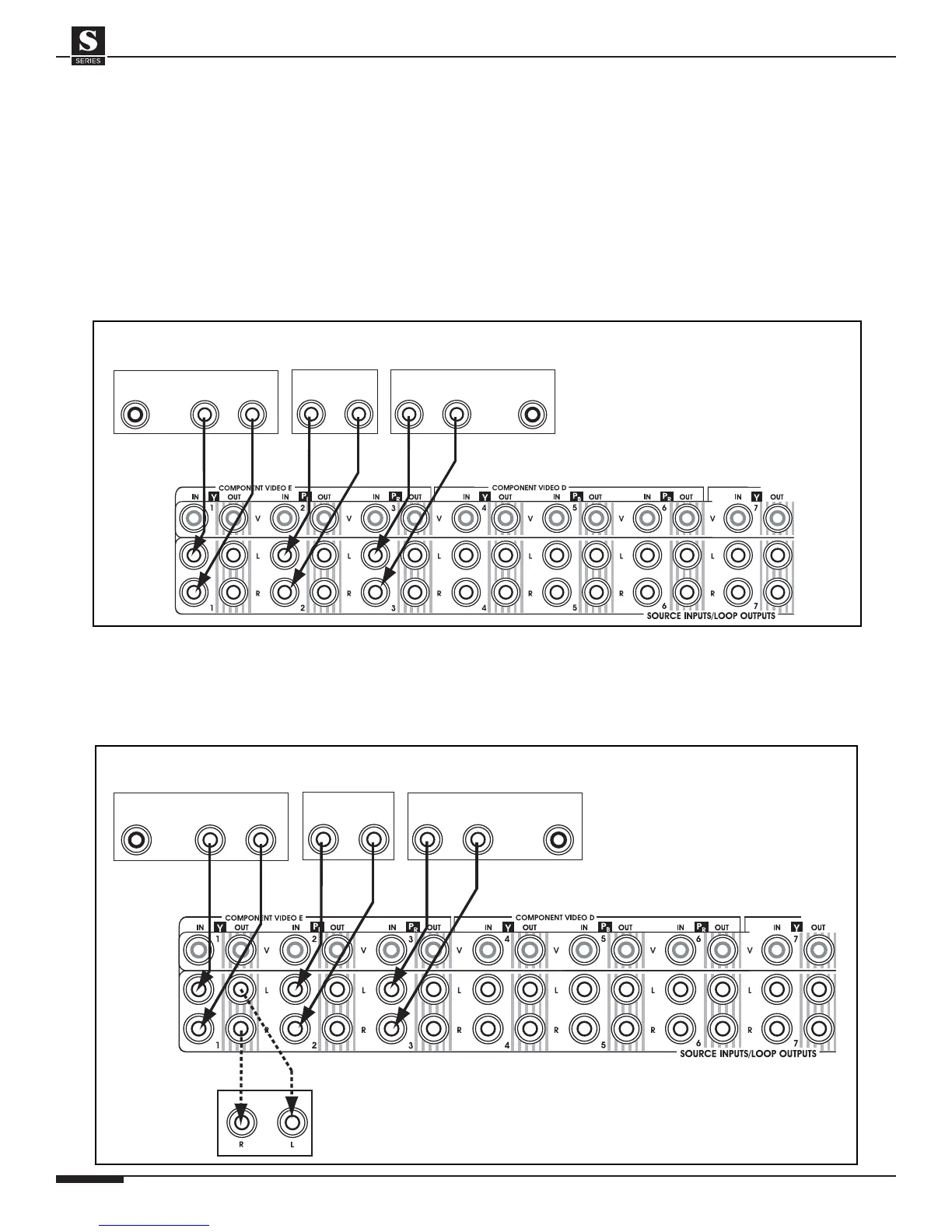

A
udio Source Connections (Sources 1-3 Shown)
VIDEO
OUT
AUDIO OUT
LR
DVD PLAYER
AUDIO OUT
LR
TUNER
VIDEO
OUT
AUDIO OUT
LR
SATELLITE RECEIVER
Loop Output Connections
Ideal for sharing sources with Home Theaters, these buffered Loop Outputs pass
line-level audio directly out of the corresponding Source Input. This audio is
buffered, therefore no signal loss will occur. Use RCA audio cables to connect a
Loop Output to a Home Theater receiver or an additional S12 chassis.
A
udio Loop Connections Source 1 Shown
VIDEO
OUT
AUDIO OUT
LR
DVD PLAYER
AUDIO OUT
LR
TUNER
VIDEO
OUT
AUDIO OUT
LR
SATELLITE RECEIVER
A/V Receiver
Audio Input
