PS12 Front Panel Connections (continued)
Antenna Connections
The PS12 provides F-to-F barrel connectors for the connection of FM and XM
antennas to the ELAN DTNR Digital Dual Tuner, XM3 Satellite Radio Tuner
(coming 2005), or other tuners.
ANTENNA
XM FM
DTNR
XM Tuner
FM
XM
PS12
ANT IN
ANT IN

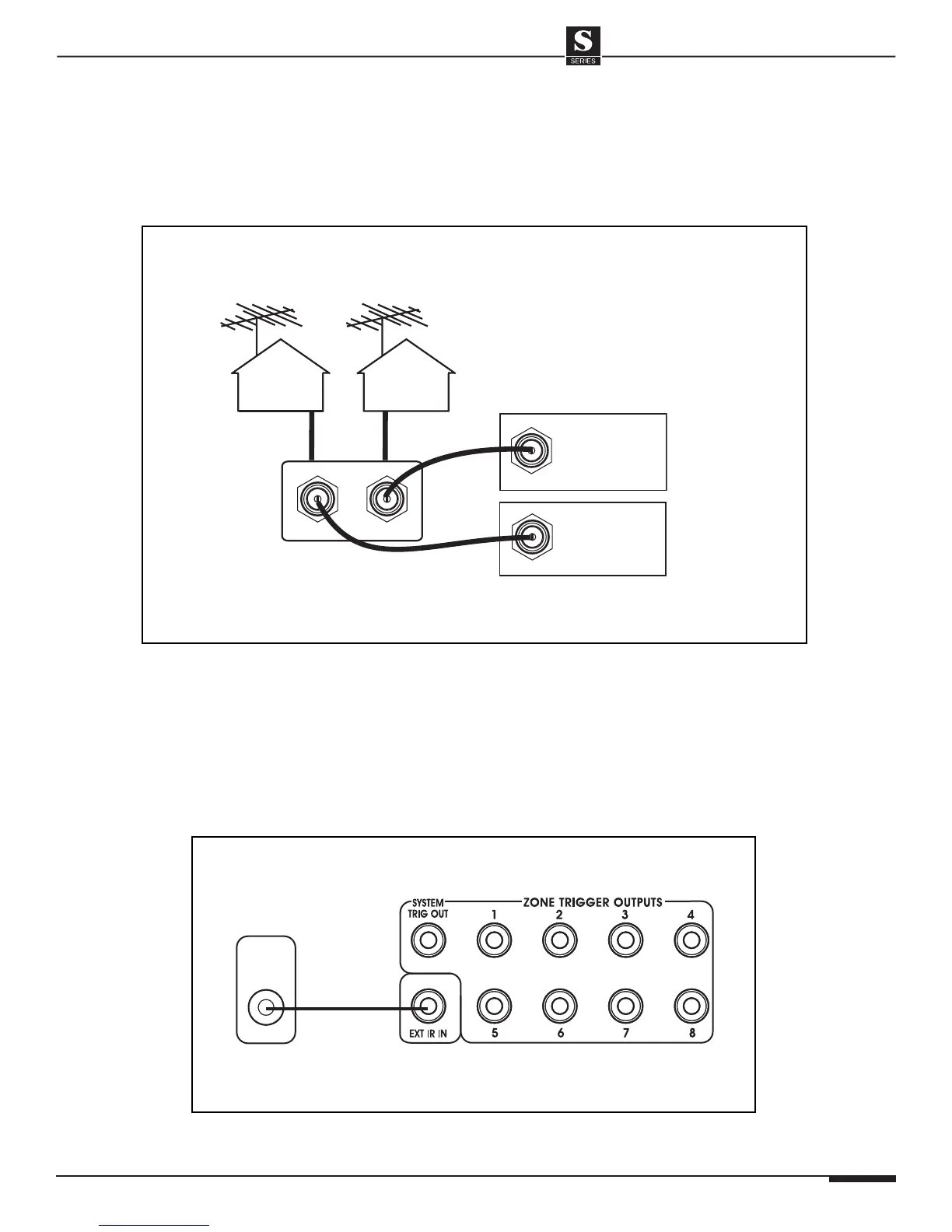

FM/XM Antenna to PS12 Connections
External IR Input Connections
The External IR Input is a powerful feature that can enable specialized functionality
in situations where system-wide (not zone-specific) IR control is required. Connect
a 3.5mm mono interconnect cable between EXT IR of the PS12 and EXT IR IN of
the System12.
EXT IR
PS12
S12
3.5mm mono
interconnect
cable
PS12 External IR Output to S12 External IR Input
