Electrolux T4900 - Internal Fuses on Electric Dryers

59
Motor
Service
manual
1
Voltage/
frequency
V/Hz
Heat
effect
kW
Fuse
size
A
2
400-480V3AC50/60Hz 48-60-72kW 16A
230-240V3AC50/60Hz 48kW 16A
440-480V3AC60Hz(USA) 48-60-72kW 15A
240V 3AC60Hz(USA) 48kW 15A
Internal fuses on electric
heated dryers
Internal control

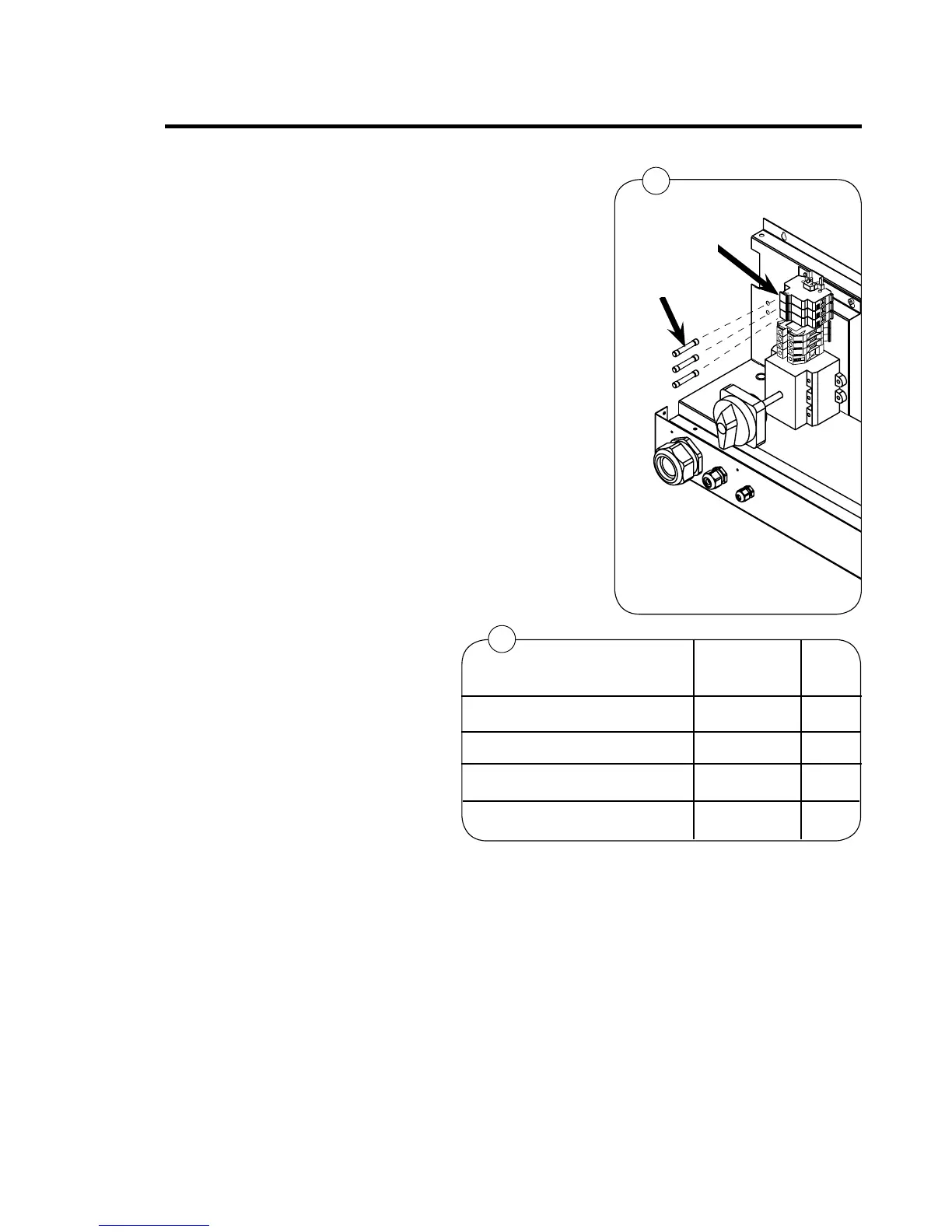

Fig.1Onelectricheateddryersthe
internalcontrolisprotectedbyinternal
fusesAlocatedinfuseretainersB on
thesupplydisconnector.
Fig.2Fusesizesareinthetablebelow.
B
A
