Electrolux T4900 - Replacing;Adjusting Gas Buner;Gas Valve; Ignition Electrode;Flame Sensor; Test Run

69
Heating - gas
Service
manual
Replacing/adjusting
gas burner/gas valve/
ignition electrode/flame sensor
 1.Disconnectpowertothedryer.

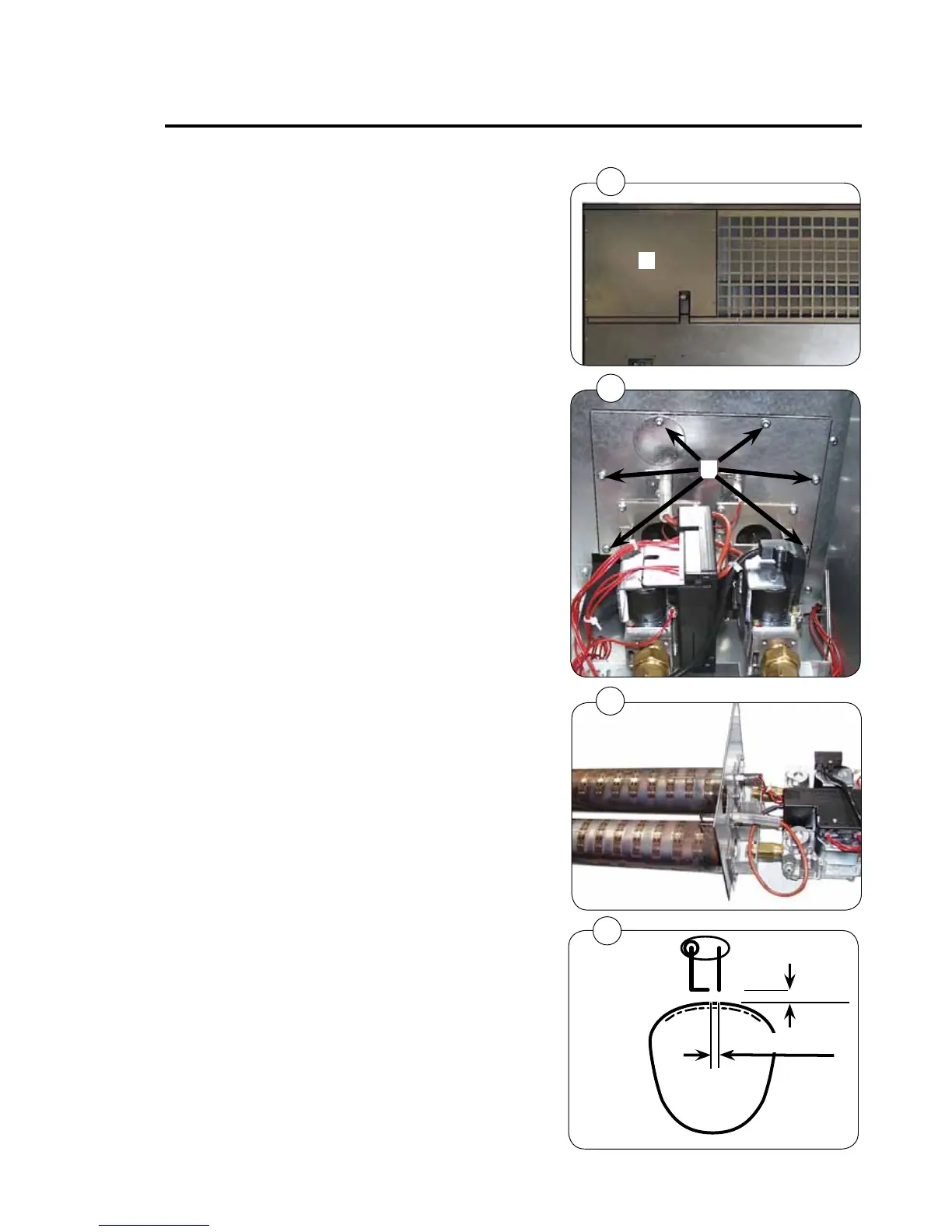

 2.Fig1Dismountthetopbackplate A.
 3.Fig.2Removethe6screwsBinorderto
dismountthe2gasburnerswithvalvesand
thecontrolbox.
 4.Fig.3Replace/adjustelectrode/flame
sensor/gasburner/gasvalve.
 5.Fig.4Checkthedistancebetweenthe
electrodes(seeGas errorearlierinthis
section).
 7.Testforleaks.
 8.Remountintheoppositeorder.
Test run
Note! To ensure the correct amount of air
to the combustion, plate A (fig. 1) must be
mounted before starting the dryer.
1
A
B
3.5 mm ±0,5
5 mm
±0.5
4
3
2
