Electrolux T4900 - Replacing Drum or Bearing Components

79
Drum with bearing
Service
manual
Replacing bearing or drum

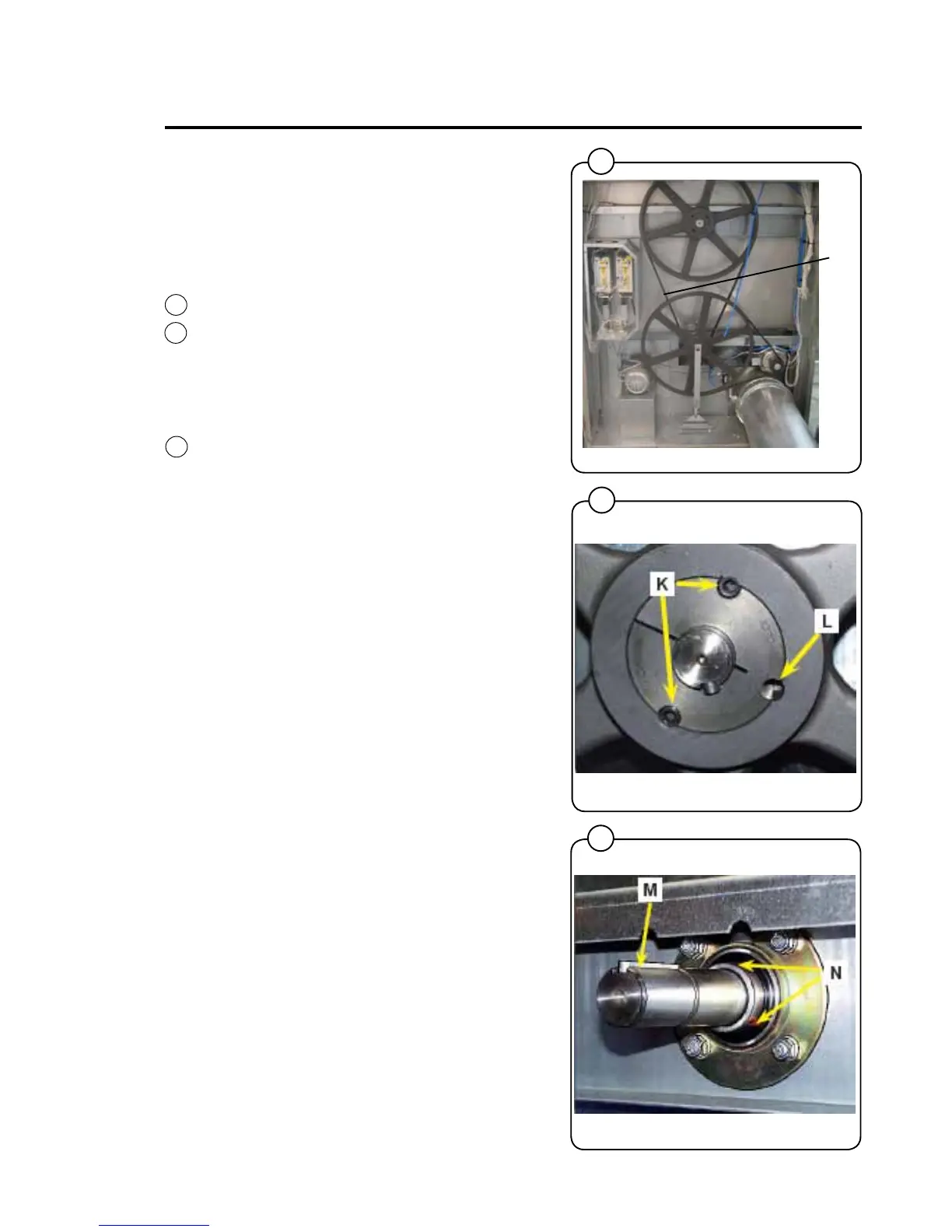

Dismount drum and bearing
 • Removethemachine'sfrontpaneland
lowerrearpanel,referto"Removalofthe
frontpanelandlowerrearpanel"
 • Removethe2V-belts(J).
 • Removescrews(K)inordertodismount
thepulley.Mountonescrewinhole(L).The
clampingsleeveisloosenedwhenholeLis
beingused.
 • Dismountpulley.
 • Dismountwedge(M).
 • Loosenthe2tailstockscrews(N).
IMGT4CR20
1
2
3
2
1
3
J
