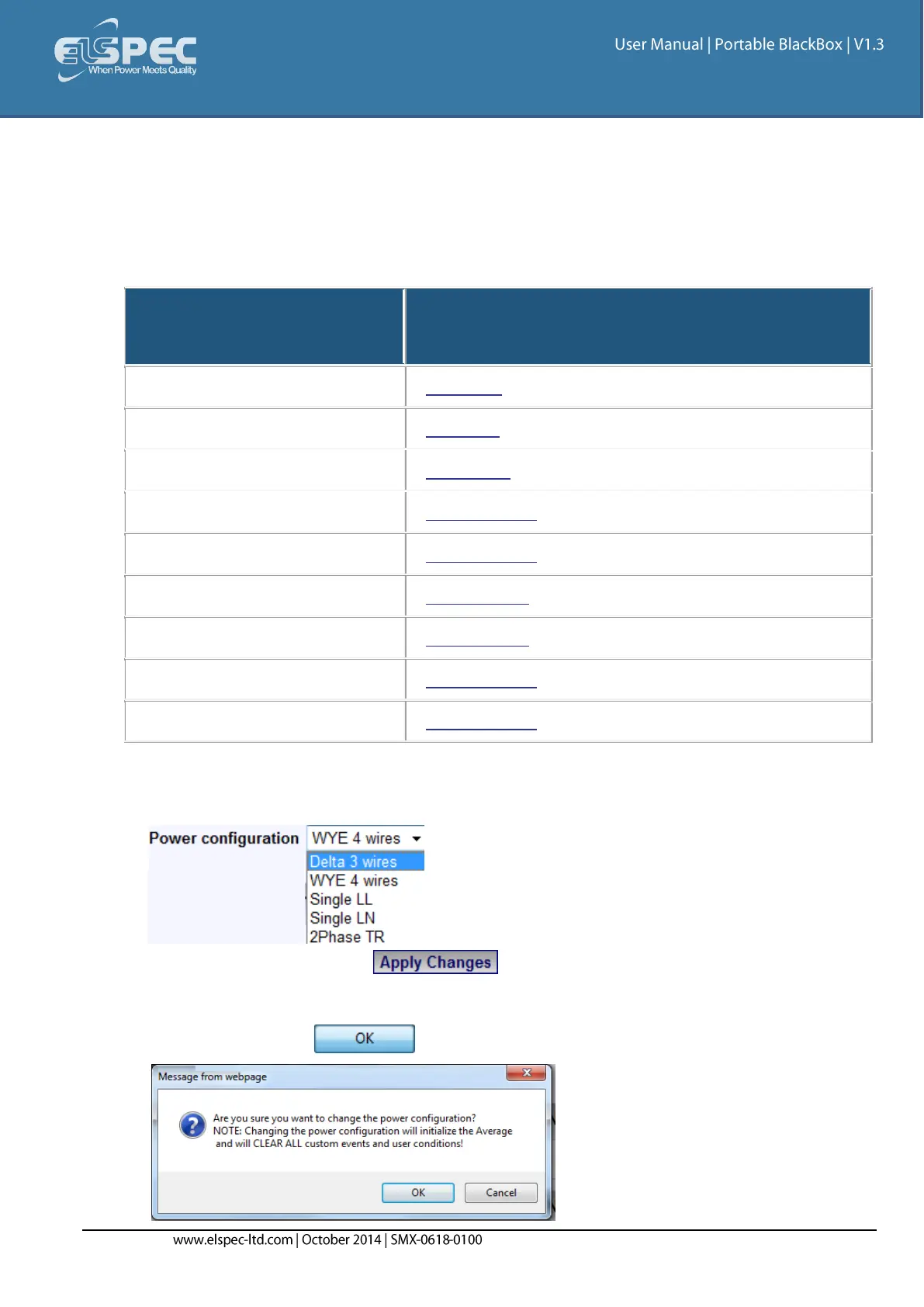

Power Configuration
The network type settings are represented by five different configurations, although the actual
number of supported networks could be extended to virtually any existing configuration. Refer to
Other Connections in order to view the types of Power Topology the Portable BLACKBOX supports.
 The following table outlines the recommended configurations for several supported power
types:
Power Type
BLACKBOX Web Interface Power
Configuration
Single Phase with Neutral
Single LN
Single Phase without Neutral
Single LL
Single Split Phase
2Phase TR
Three Wire Delta
Delta 3 Wires
Grounded Delta
Delta 3 Wires
Four Wire WYE
WYE 4 Wires
Three Wire WYE
WYE 4 Wires
Delta High Leg
Delta 3 Wires
Delta Open Leg
Delta 3 Wires
 Select the applicable Network Type Settings according to your network type from the drop-
down selection:
 To apply your changes select
 You will receive the following warning message as changing the network configuration will
result in all the energy calculations to be averaged & will clear all your Custom Event
configurations. Click in order to proceed:
