The G3500 BLACKBOX Portable PQ Analyzer
The innovative design of the G3500 BLACKBOX has been uniquely adapted for PQ Analysis at any
location. It continuously records all waveform data at a sampling rate for Voltage 512 samples per
cycle & Current 512 samples per cycle. With an onboard memory of 256MB you can capture
everything for more than a year depending on the selected resolution & the individual network
condition. It is important to remember that with the built-in PQZIP compression this onboard
memory is equivalent to 256GBG, enabling you to get to the root cause of all your PQ Anomalies. It
features an ultra capacitors' ride-through for up to 25 seconds, an AC/DC power supply, DC/DC
converter, can be powered by Power of the Ethernet (PoE In) or by an onboard battery for up to 2
Hours.
The front panel of the unit mainly facilitates the communication interfaces, the auxiliary power
supply & I/O module.
The rear panel houses another important feature of the G3500, namely the sensor sockets for all the
probes. You may use any custom / Elspec probes supplied with the device. Simply plug it in & all
the probes will be automatically recognized. The rear panel also houses the On/Off Switch of the
Main Power & Inlet Socket.
The illustrations & tables below will serve as a navigational map of all the unit's controls &
indicators.

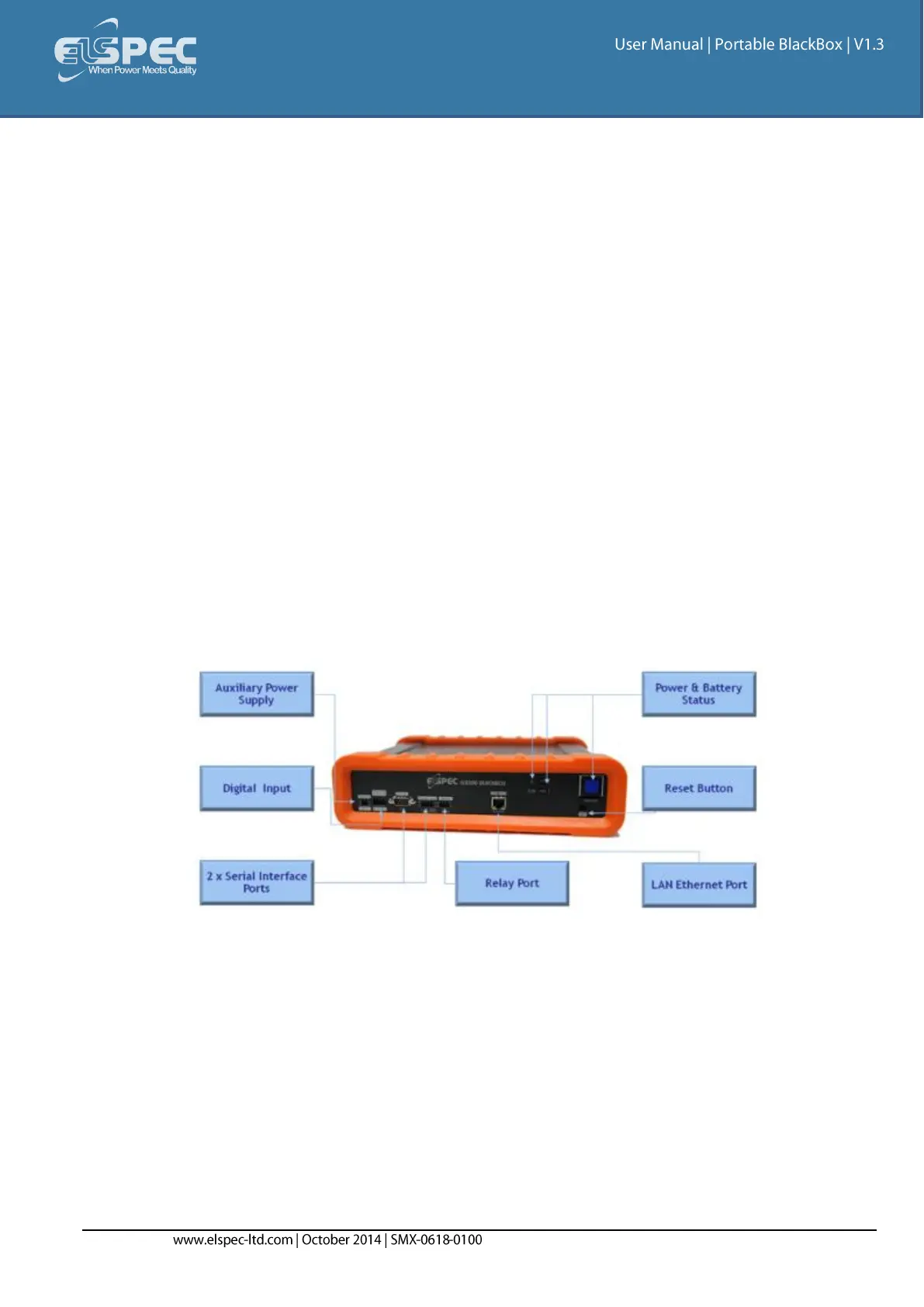

Physical layout of the controls & indicators of the G3500's Front Panel:
Physical layout of the controls & indicators of the G3500's Rear Panel:
