GPS Configuration
Elspec's Portable BLACKBOX supports a unique time synchronization approach, enabling each
individual device to be continuously synchronized to an external to an external time source or to
each other. The unique time synchronization algorithm supports two main time-synchronization
schemes: SNTP (Network time source) & GPS (GPS time source obtained from satellites). The
algorithm presents the highest level availability of time, at an accuracy of 100-200µs for both SNTP
& GPS. Once you have Connected the GPS, the device will automatically recognize the connection &
you will be able to configure the GPS settings in the Web Interface. The process is two fold & you
will need to set the Time Setup to GPS & configuring the GPS connection itself:

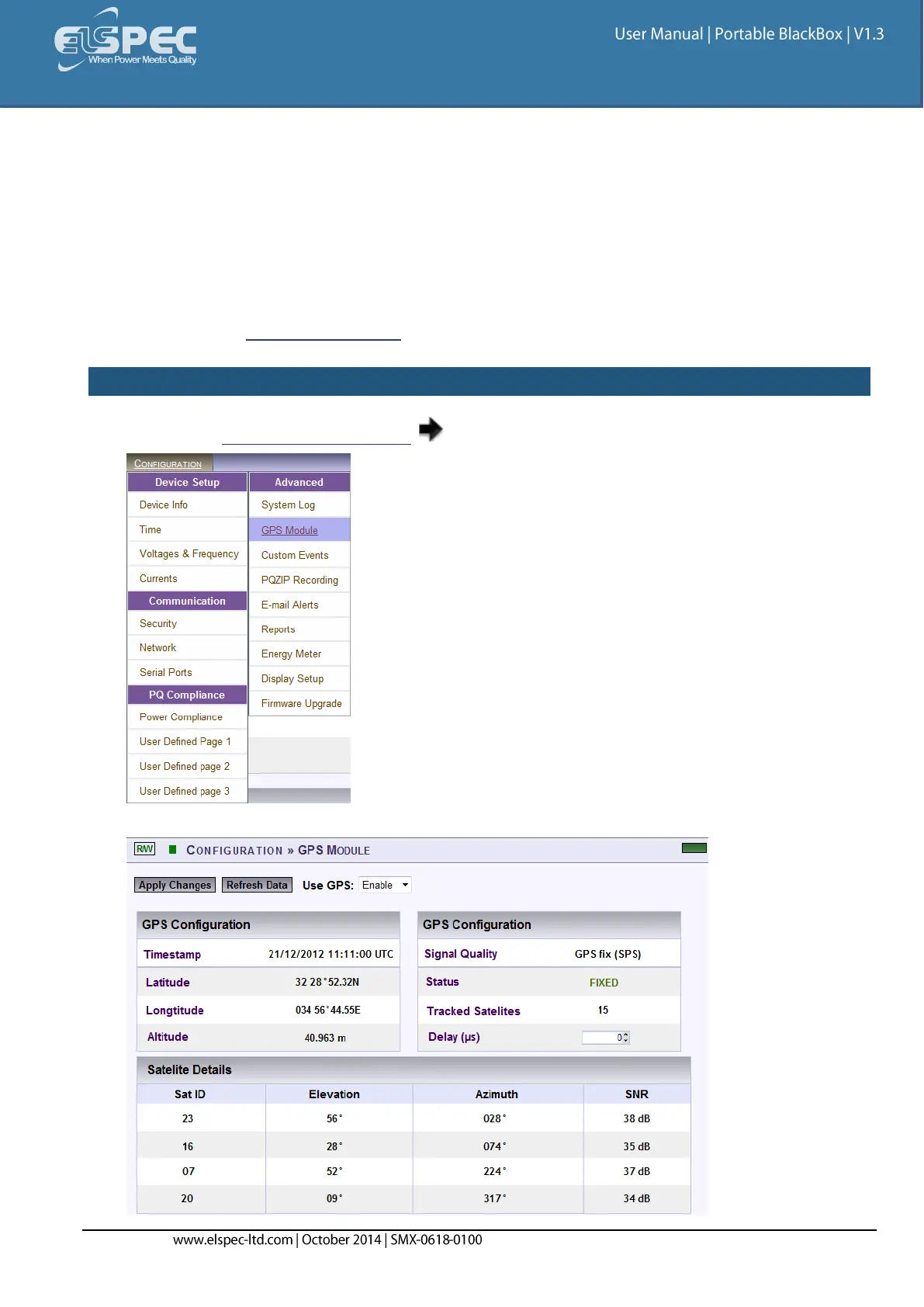

CONFIGURE THE GPS
Open the Advanced Settings Tab select GPS Module:
The GPS Module Window will now open:
