G4500 & G3500 Unit Wiring
An essential part of the Wiring Procedure is the Power Configuration, which is configured in the Web
Interface. Prior to proceeding with Plugging in & Playing your Voltage & Current Probes,
familiarize yourself with the types of Power Topology the BLACKBOX Portable supports & Grounding
of the unit.
BLACKBOX PORTABLE POWER TOPOLOGY SUPPORTS

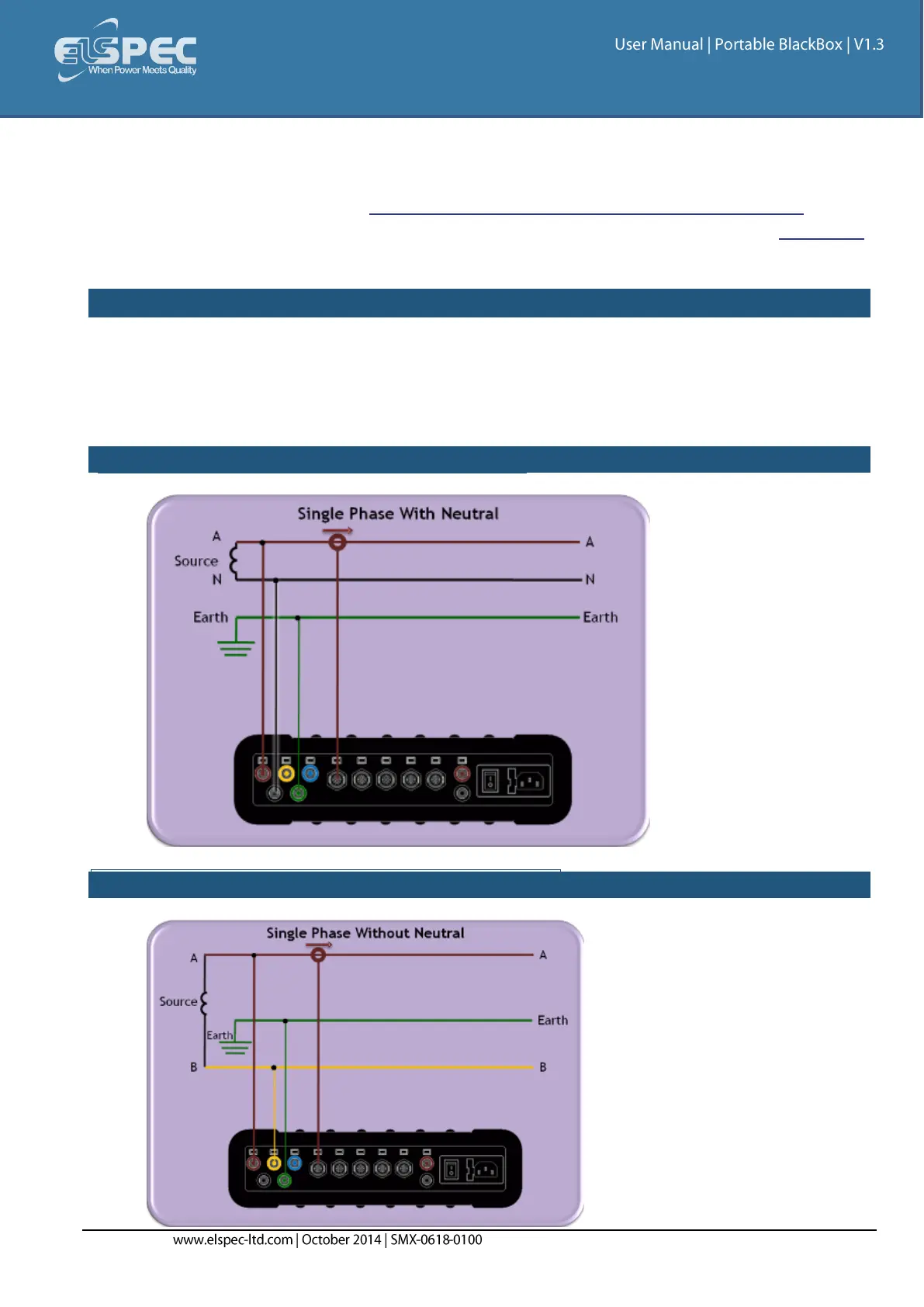

The BLACKBOX is designed to serve in virtually any power topology configuration. The diagrams
below outline the types of topologies with their applicable Configuration in Elspec's Web Interface.
It includes the Portable BLACKBOX configurations followed by the actual power configuration in
brackets:
Single LN [SINGLE PHASE WITH NEUTRAL]:
Single LL [SINGLE PHASE WITHOUT NEUTRAL]:
