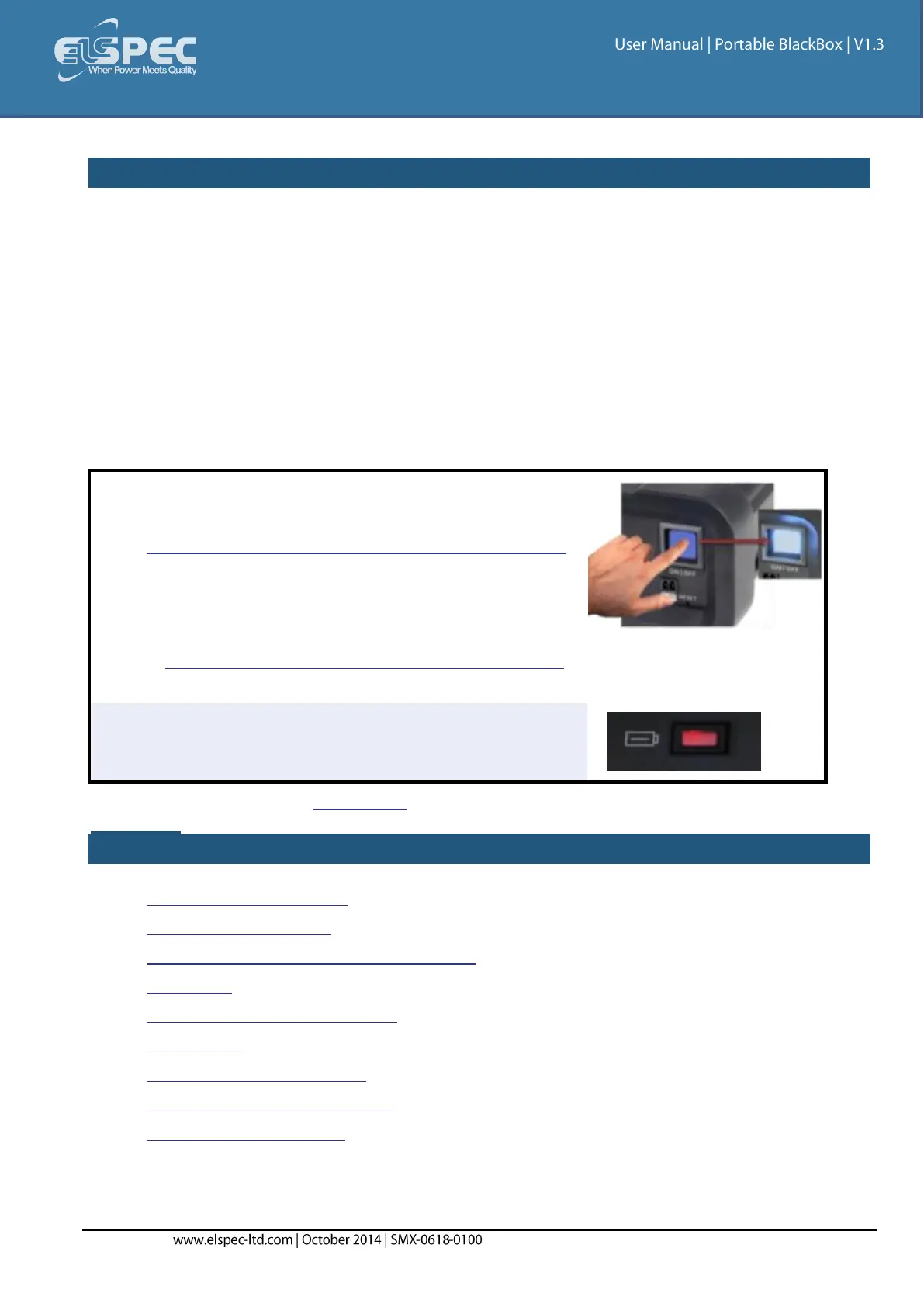

Power the unit by using the Battery Supply:
The BLACKBOX Portable contains an internal, uninterrupted power supply module providing a short
period of self-powered measurements sessions &/or power supply interruptions ride-through. The
Internal UPS system contains a lithium battery for a up to 2 hours of fully- functioning operation & a
super capacitors module allowing an additional 25 seconds of short interruptions ride-through even
in the case of the main battery being fully discharged. The battery & super capacitors modules
require no maintenance and are designed for a long service life. However, if the battery shows a
significant decrease in performance, it should be replaced with a factory original. Consult with your
local Elspec agency for replacement battery ordering information & see Battery Replacement, in
order to change your Battery.
Procedure for using the Battery Supply:
On the Front Panel turn on the Main Power Supply
Switch to the ON position:
Verify that the unit is running on Battery Power by using the status indicator
lights:
Powered by the Internal Battery
Go to the next step - Unit Wiring
