Installation
8
8. Remove package and filling of the internal space and place the balance pedestal on the
intended device at the lower heating element. Please note that the pedestal is positioned
nearly central and horizontally. If there is a strong displacement the balance has to be
adjusted, (see below).

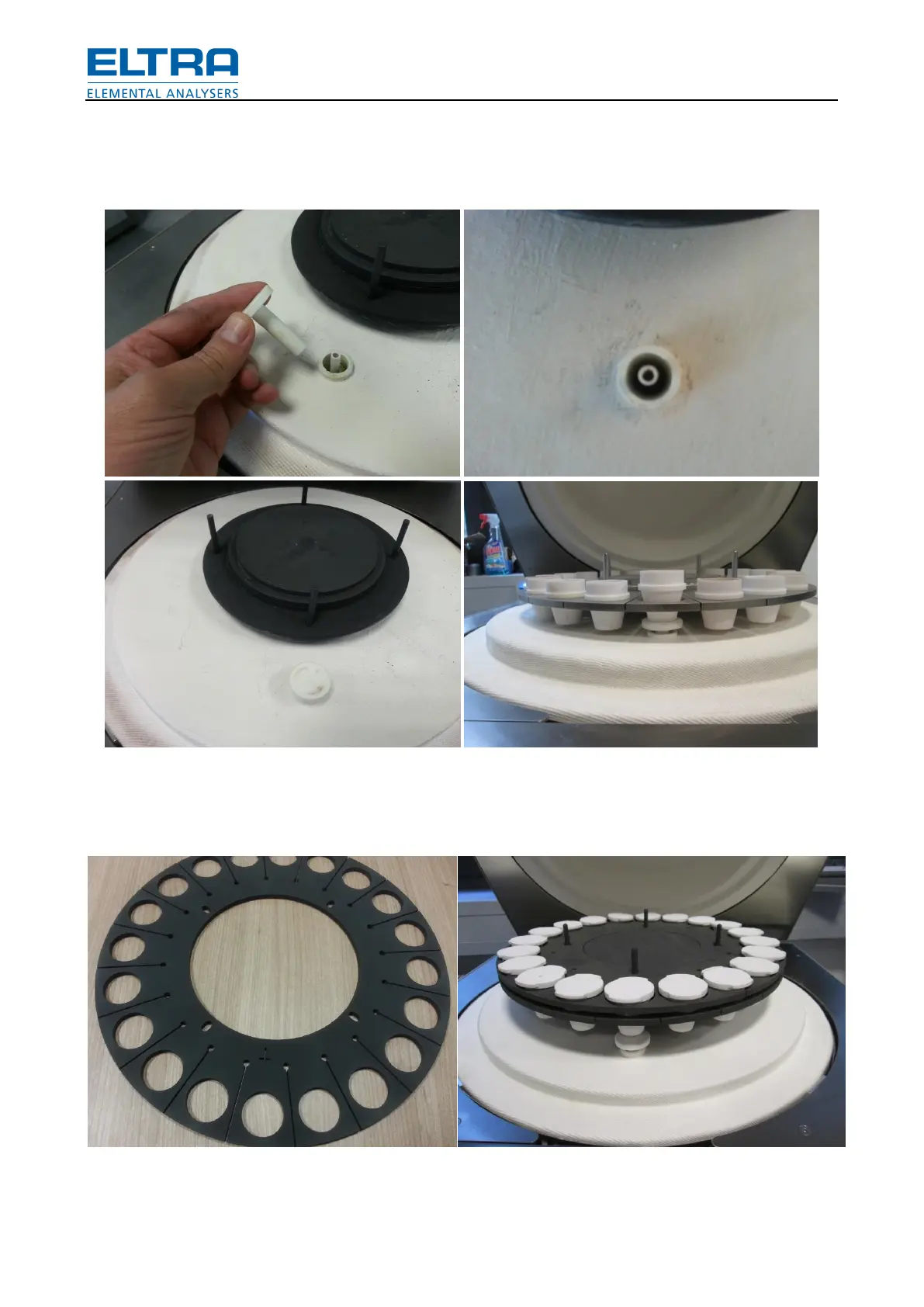

Fig.
: Placement of the balance pedestal (inside furnace)
9. Place the provided crucible carousel (smaller holes) on the device, as well the lid
carousel when ordered.
10. Insert all the crucibles and lids to check their proper position to each other. Start in the
motor window the home position procedure to be sure that nothing is disturbed after
