Emerson DCX S - Setting the Amplitude; Figure 7.1 LCD at Power up; Table 7.1 Setting the Amplitude Using the Front Panel Controls

100-412-183 REV. 13 91
7.2 Setting the Amplitude
7.2.1 Using the Front Panel Controls
At power up the DCX S Power Supply will display the last amplitude setting on the LCD.

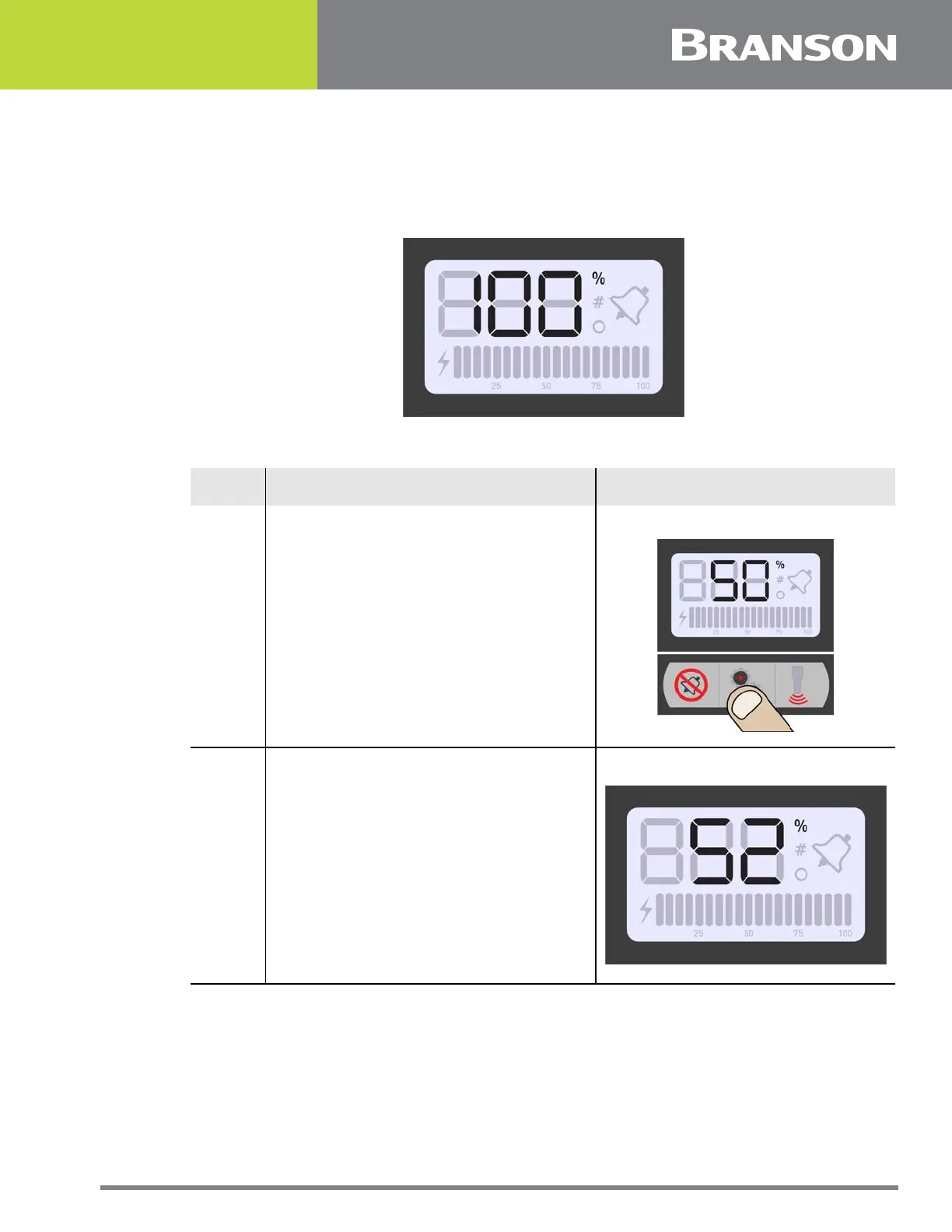

Figure 7.1 LCD at Power Up
Table 7.1 Setting the Amplitude Using the Front Panel Controls
Step Action Reference
1
Press the Configuration key until the
percentage icon (%) appears on the
LCD.
2
Press and release the Up or Down
arrow keys to select the desired
amplitude at 1% increments.
Press and hold down the Up or Down
arrow keys and the Amplitude will auto
increment at 1% increments every
quarter of a second.
After holding down an arrow key for
four straight seconds, the amplitude
will auto increment at 5% increments
every quarter of a second.
