Emerson DCX S - Table 7.12 Power Supply Ultrasonic Test Procedure (Web

108 100-412-183 REV. 13

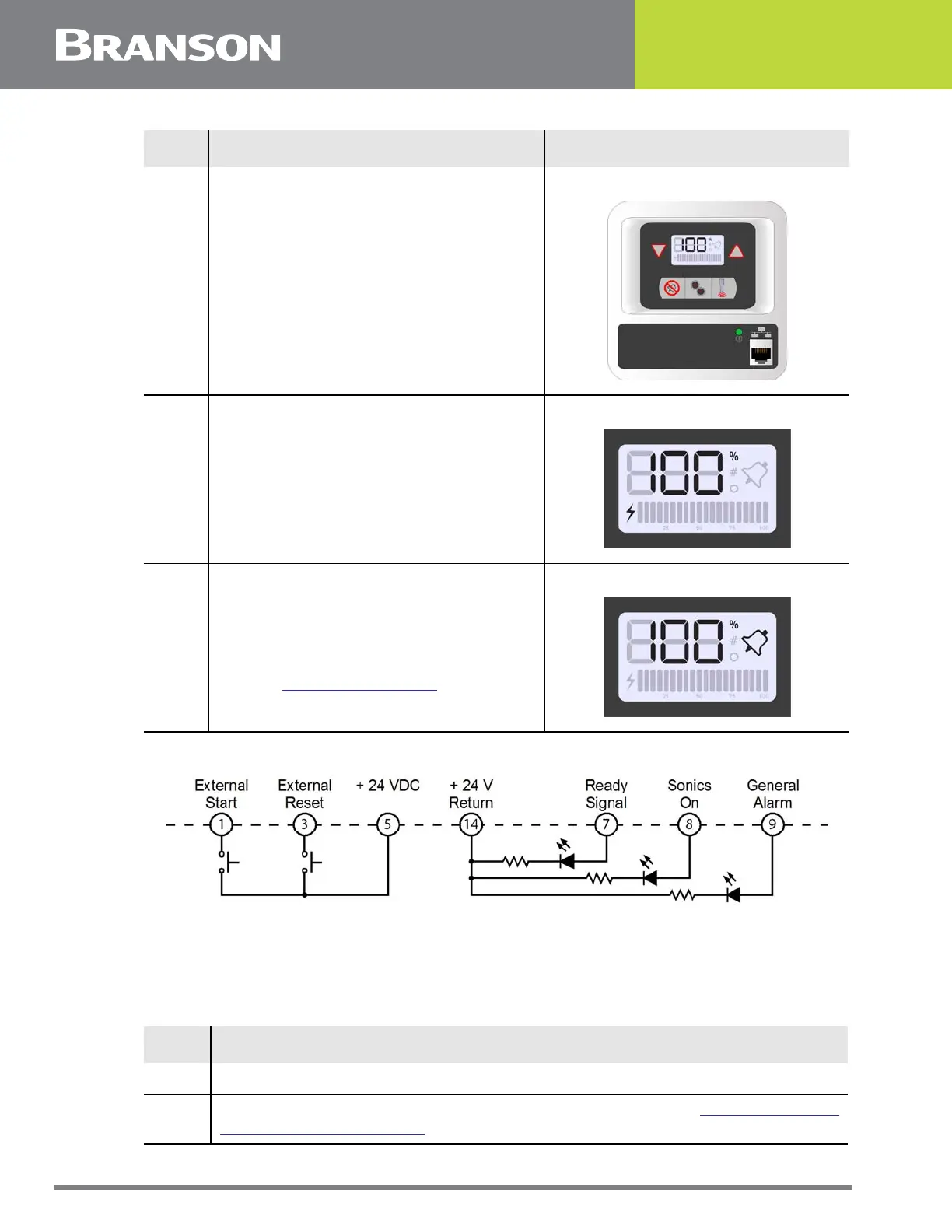

Figure 7.3 Test Connections
7.7.3 Using the Web page interface
2
Turn on the power supply. The front
panel Power LED should turn on. Ready
Signal should become active.
3
Send an External Start signal for 1-2
seconds. The Sonics Active output will
become active and the Sonics Active
indicator appears while the External
Start Signal is present. If the General
Alarm output/ alarm indicator do not
become active, the test procedure is
finished
4
If the General Alarm output/alarm
indicator become active, send an
External Reset signal and repeat step 2
one time only. If the alarm persists,
refer to
8.6 Troubleshooting.
Table 7.11 Power Supply Ultrasonic Test Procedure (User I/O)
Step Action Reference
Table 7.12 Power Supply Ultrasonic Test Procedure (Web Page Interface)
Step Action
1 Turn on the power supply. The front panel Power LED should turn on.
2
Connect to the DCX S Power Supply Web Page Interface. See 7.6.2 Connecting
to the Web Page Interface.
