Emerson DCX S - Figure 6.2 20 Khz Booster Dimensions; Table 6.2 20 Khz Booster Dimensions

80 100-412-183 REV. 13

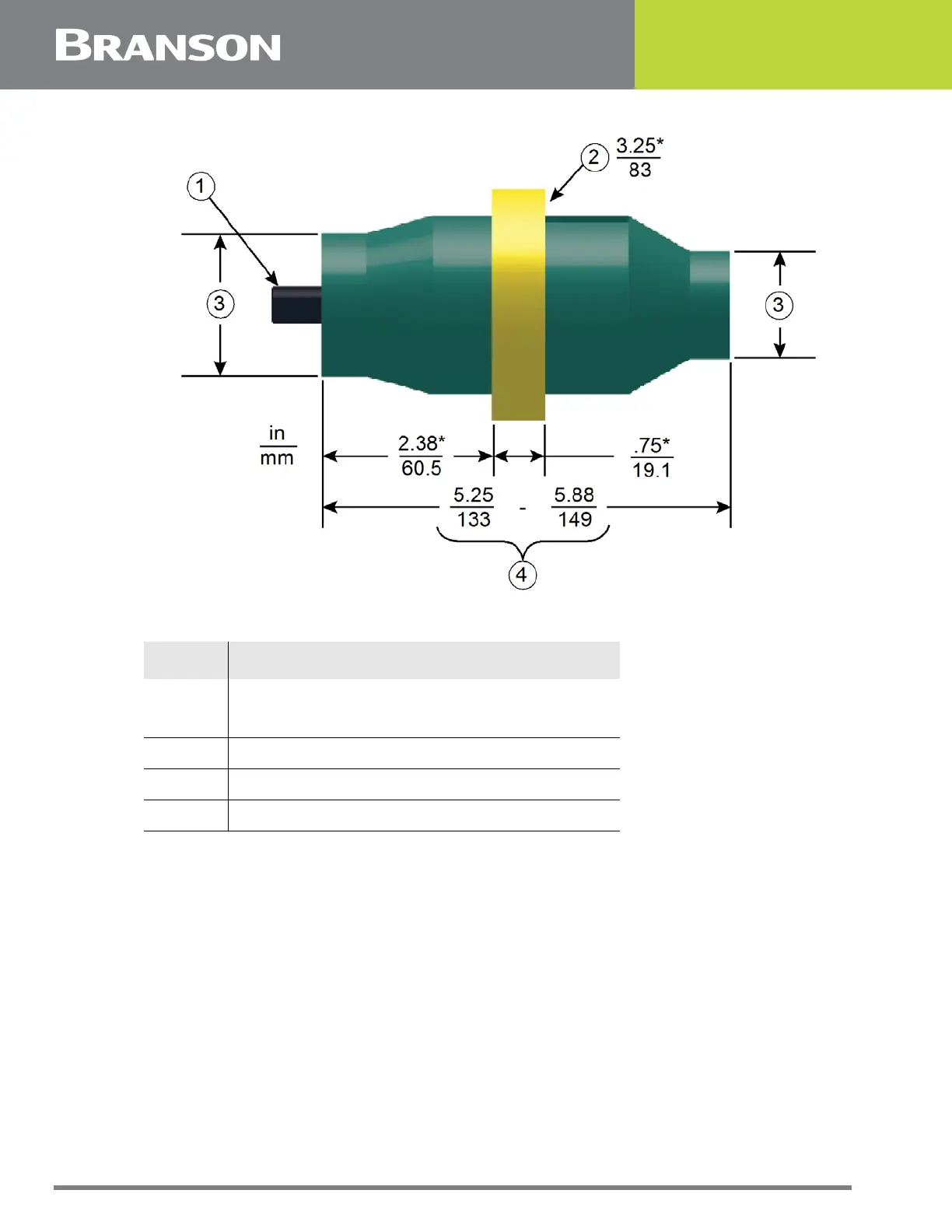

Figure 6.2 20 kHz Booster Dimensions
* These dimensions do not vary.
Table 6.2 20 kHz Booster Dimensions
Item Description
1
1/2 - 20 x 1 - 1/4 stud (Ti boosters)
1/2 - 20 x 1 - 1/2 stud (Al boosters)
2 Grip Ring Diameter
3 Variable
4 Varies with tuning and gain
