Emerson DCX S - Figure 5.4 DCX S Power Supply Vertical Mount Dimensional Drawing (2.5 Kw and 4 Kw)

100-412-183 REV. 13 47

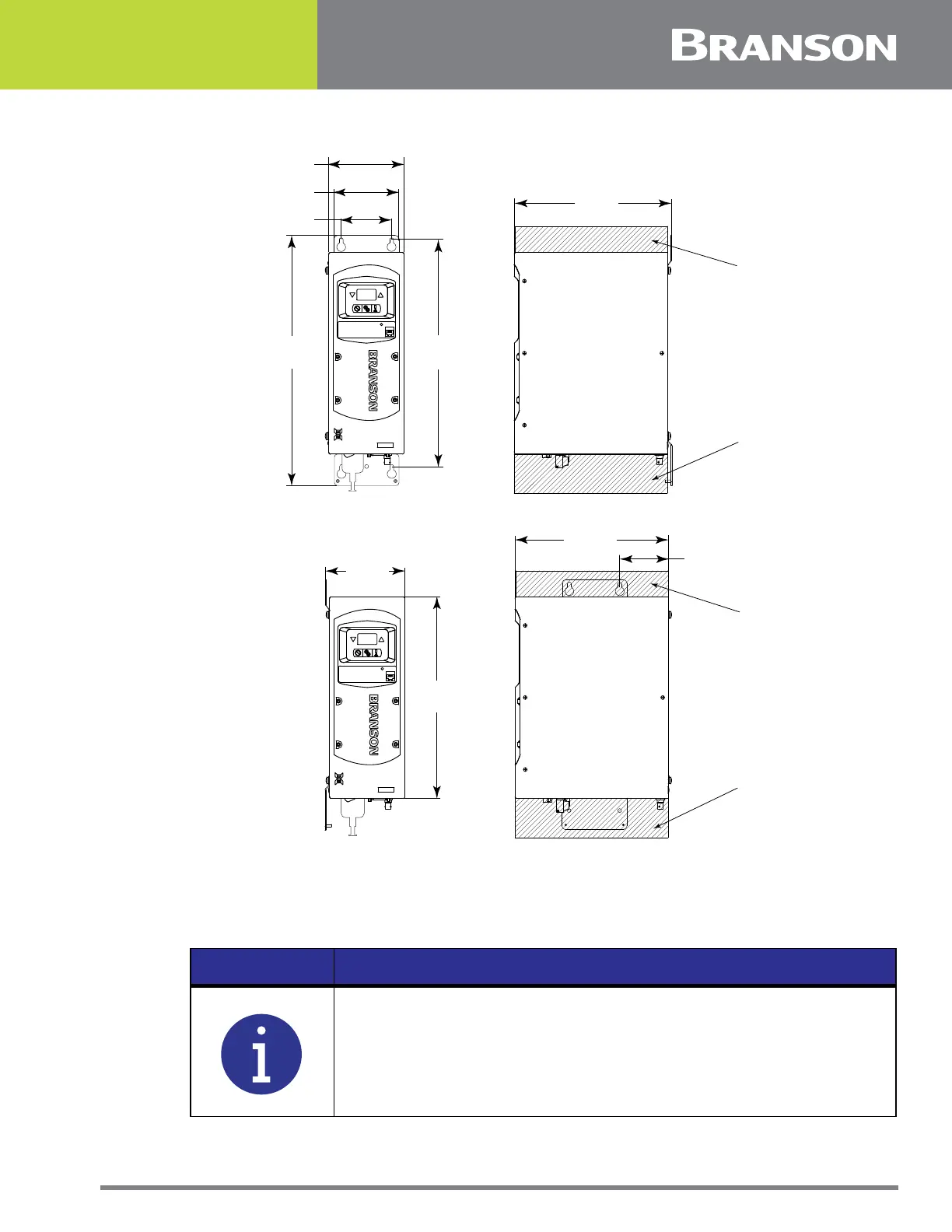

Figure 5.4 DCX S Power Supply Vertical Mount Dimensional Drawing (2.5 kW and 4 kW)
NOTICE
Use the keyhole mounting bracket to mount the unit in the needed
position. Use M6 (6mm) screws to mount the unit.
4.5 in
(114 mm)
3.5 in
(89 mm)
11.0 in
(279 mm)
15.75 in
(400 mm)
17.38 in
(441.5 mm)
Back-mounted
5.53 in
(140 mm)
10.63 in
(270 mm)
3.62 in
(91.9 mm)
14.00 in
(355.6 mm)
Side-mounted
5.0 in (127 mm)
recommended
clearance for cables
5.0 in (127 mm)
recommended
clearance for cables
3.0 in (76 mm)
recommended
fan clearance
3.0 in (76 mm)
recommended
fan clearance
5.22 in
(132.6 mm)
