68 100-412-183 REV. 13

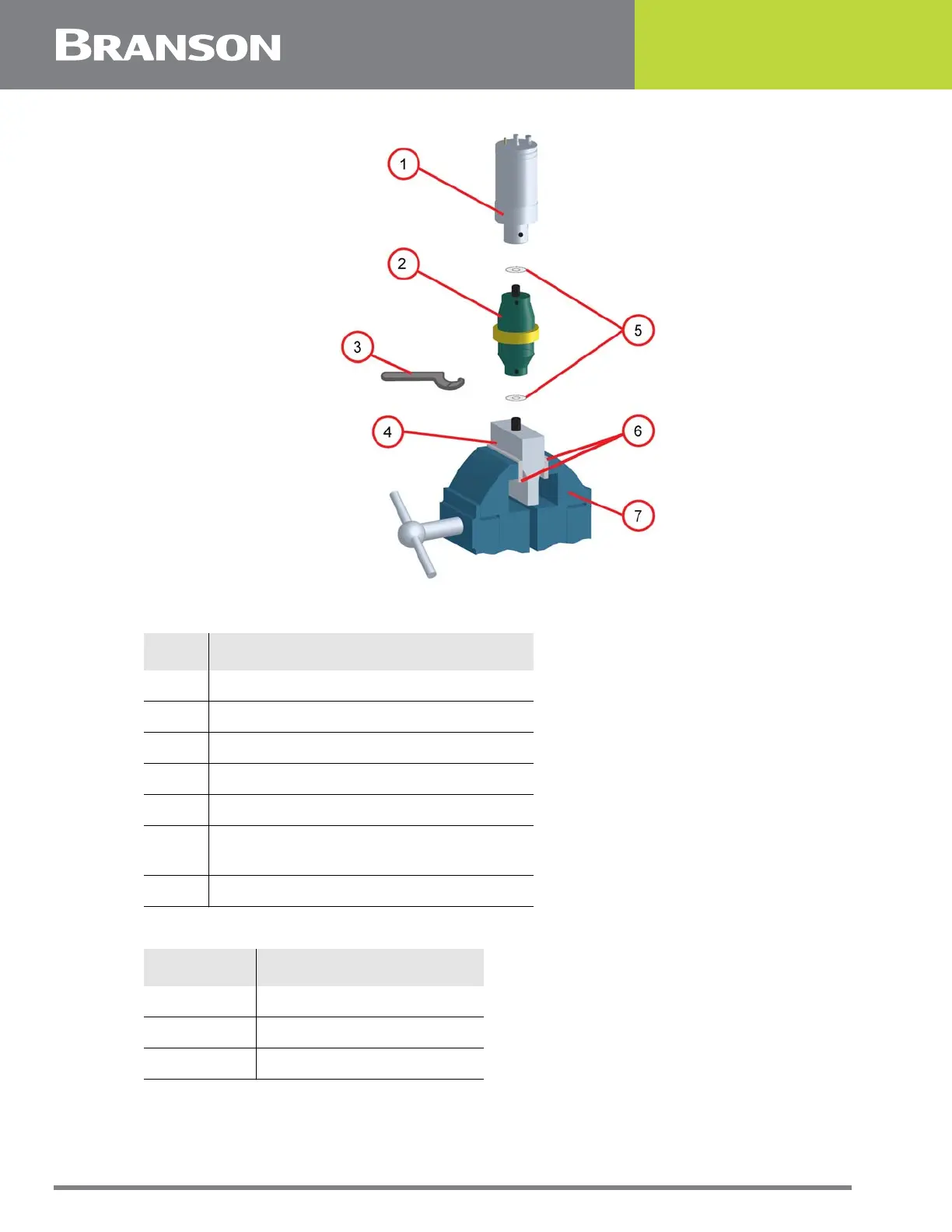

Figure 5.12 Assembling the Acoustic Stack
Table 5.13 Acoustic Stack Description
Item Description
1 Converter
2 Booster
3 Spanner (provided)
4 Horn
5 See stack assembly procedure
6
Vise Jaw protectors (aluminum or soft
metal)
7 Vise
Table 5.14 Stack Torque Values
Frequency Torque
20 kHz 220 in·lb (24.85 N·m)
30 kHz 185 in·lb (21 N·m)
40 kHz 95 in·lb (10.73 N·m)
