82 100-412-183 REV. 13

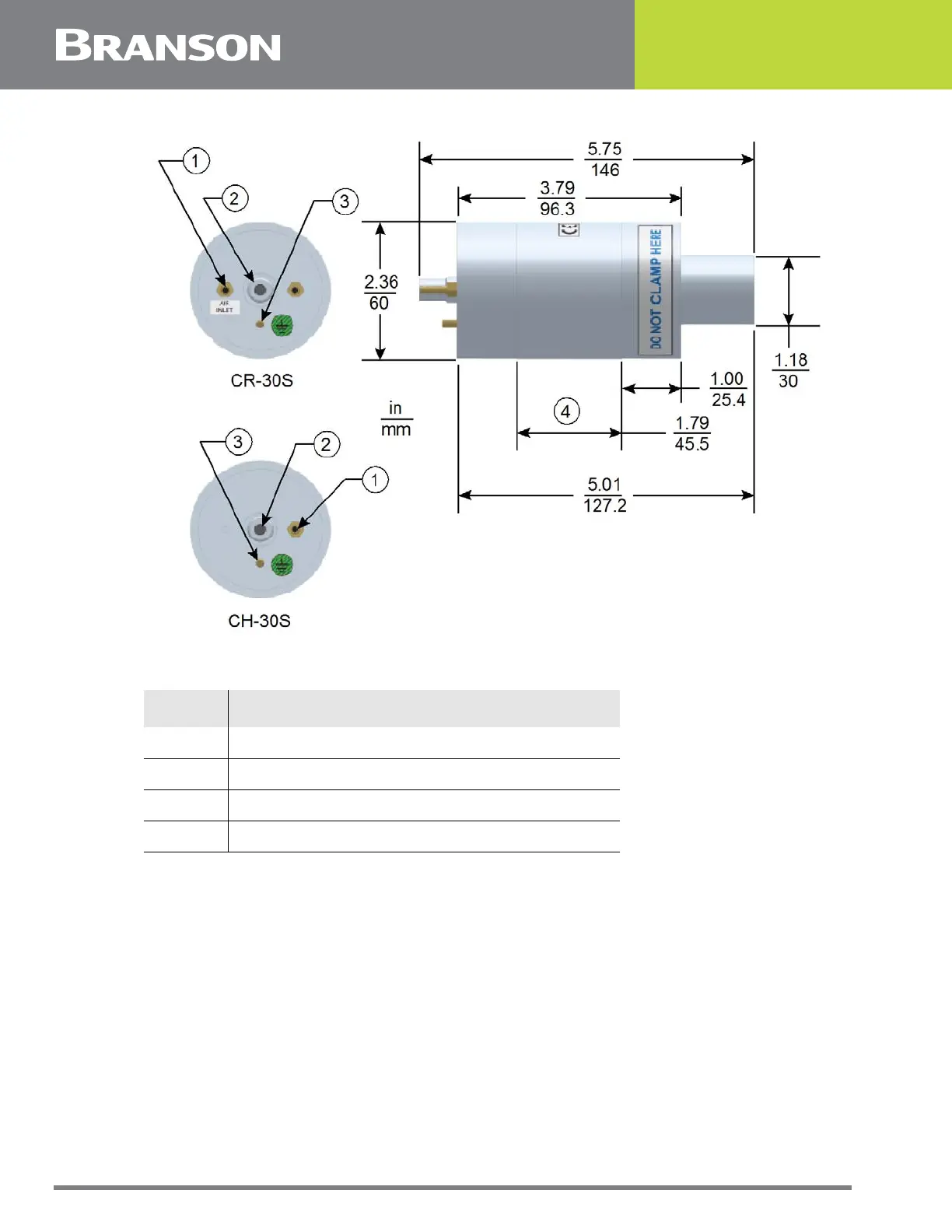

Figure 6.4 30 kHz Converter Dimensions

CR-30S and CH-30S are dimensionally identical, and differ only in their respective cooling

feature.

CR-30S has flow through cooling, and CH-30S has closed loop cooling (air circulates in the

converter and returns to its source).

Table 6.4 30 kHz Converter Dimensions

Item Description

1 Air inlet

2 SHV connector

3 Ground stud

4 Grip area
