5.3.15 Output Power (RF Cable) Connection
Ultrasonic energy is delivered to the SHV connector on the power supply, which is then
transmitted to the converter via the RF cable. The RF connector position depends on the
power supply configuration. For Horizontal models it is located on the rear panel of the
power supply. For Vertical models it is located on the bottom panel of the power supply.
To reduce electromagnetic interference (EMI), RF cables are equipped with a ferrite core
(plastic case) on one end. This end is meant to be connected to the power supply.

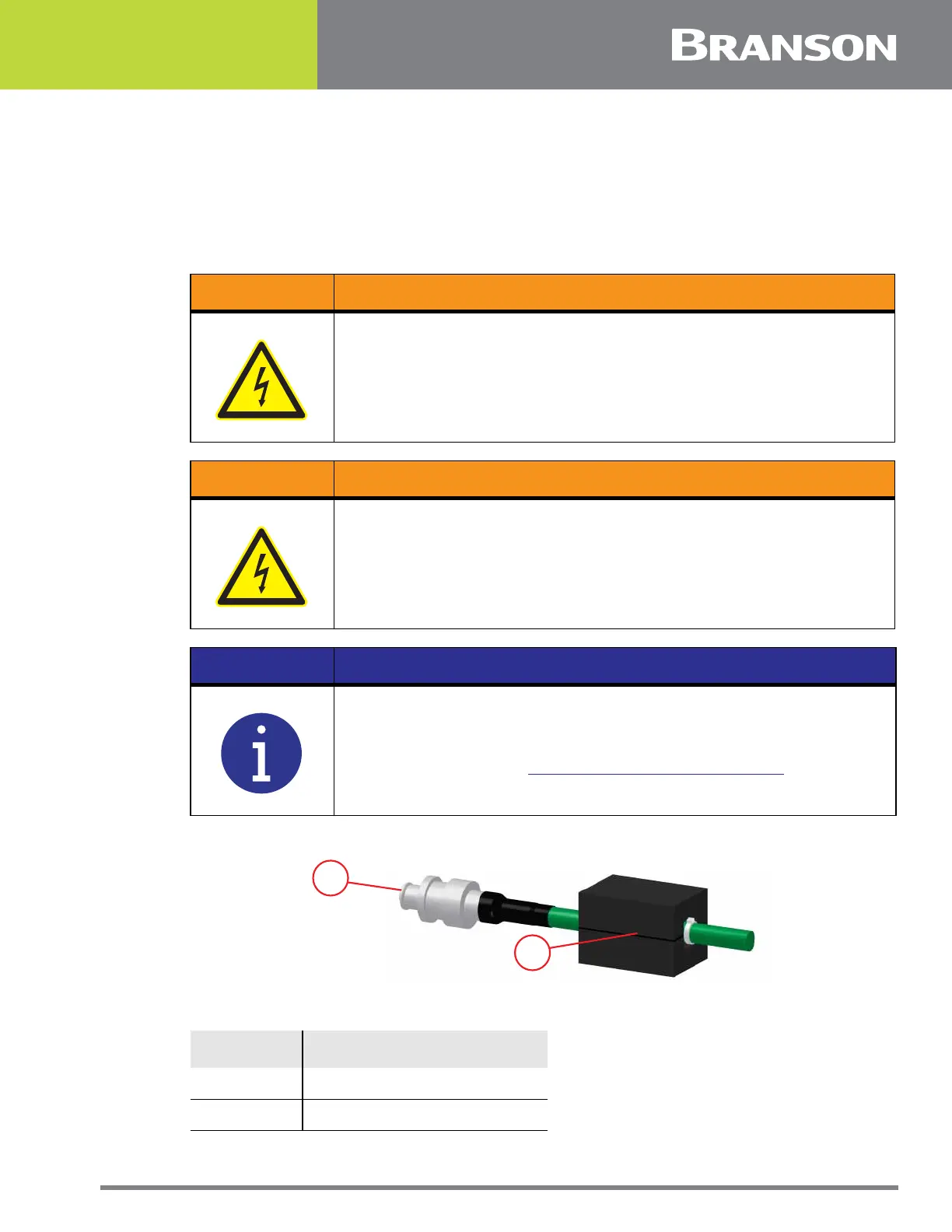

Figure 5.11 RF Cable Connection
WARNING High Voltage Hazard
Operating the System with the RF Cable disconnected or damaged
can present an electrical shock hazard.
WARNING High Voltage Hazard
To avoid the possibility of electrical shock. Converters need to be
properly grounded.
NOTICE
To avoid the possibility of EMI interference, ensure the RF connection
to the power supply is made with the cable end that has the ferrite
core box attached (see Figure 5.11 RF Cable Connection).
Table 5.11 RF Cable Connections
Item Description
1 To Power Supply
2 Ferrite Core Box
