104 100-412-183 REV. 13
7.6.4 Point to Point Connection (Windows XP)
1. To connect directly to the DCX S Power Supply Web Page Interface using a PC with Windows XP®
operating system, complete the following steps:
2. Connect the power supply to a computer via the Ethernet port.
3. Turn on the power supply.

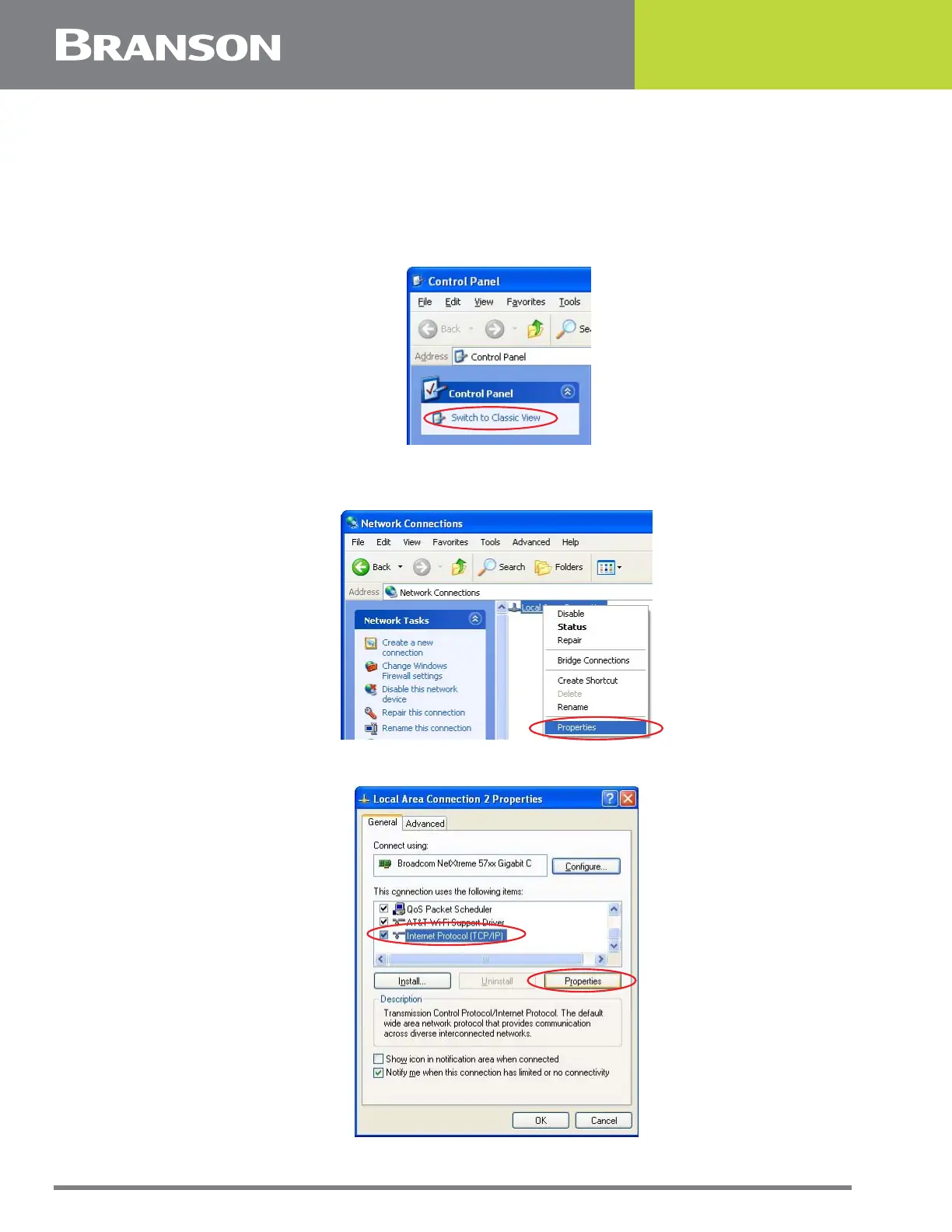

4. On your PC, select Start > Control Panel.
5. Select Switch to Classic View on the top left corner.
6. Select Network Connections.
7. Right click on Local Area Connection and select Properties to bring up the General tab.
8. Highlight Internet Protocol (TCP/IP) from the list and click on Properties.
