Emerson Rosemount 5402 - Page 116

102
Reference Manual
00809-0100-4026, Rev KC
Configuration
October 2018
Configuration

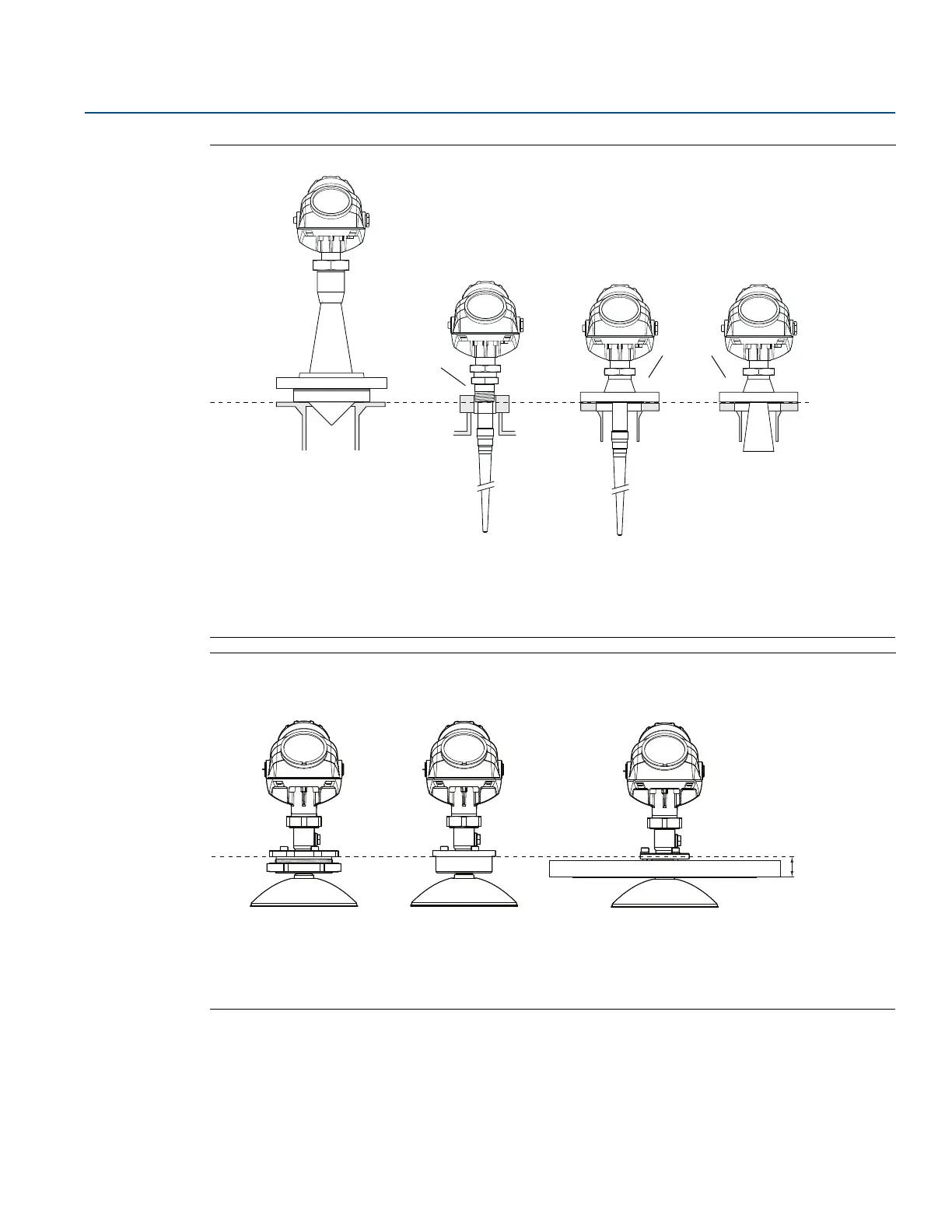

Figure 5-2. Upper Reference Point for Cone, Process Seal and Rod Antennas
Figure 5-3. Upper Reference Point for Parabolic Antenna
A. Upper reference point E. Cone antenna
B. Process seal antenna F. Adapter
C. Rod antenna with threaded tank connection G. Flange
D. Rod antenna with flange
A. Upper reference point D. Parabolic antenna with flange connection
B. Parabolic antenna with welded connection E. Upper reference point for the flanged connection is
1.2 in (30 mm) above the underside of the flange
C. Parabolic antenna with threaded connection
E
D
C
A
F
G
B
G
A
B
C
D
E
