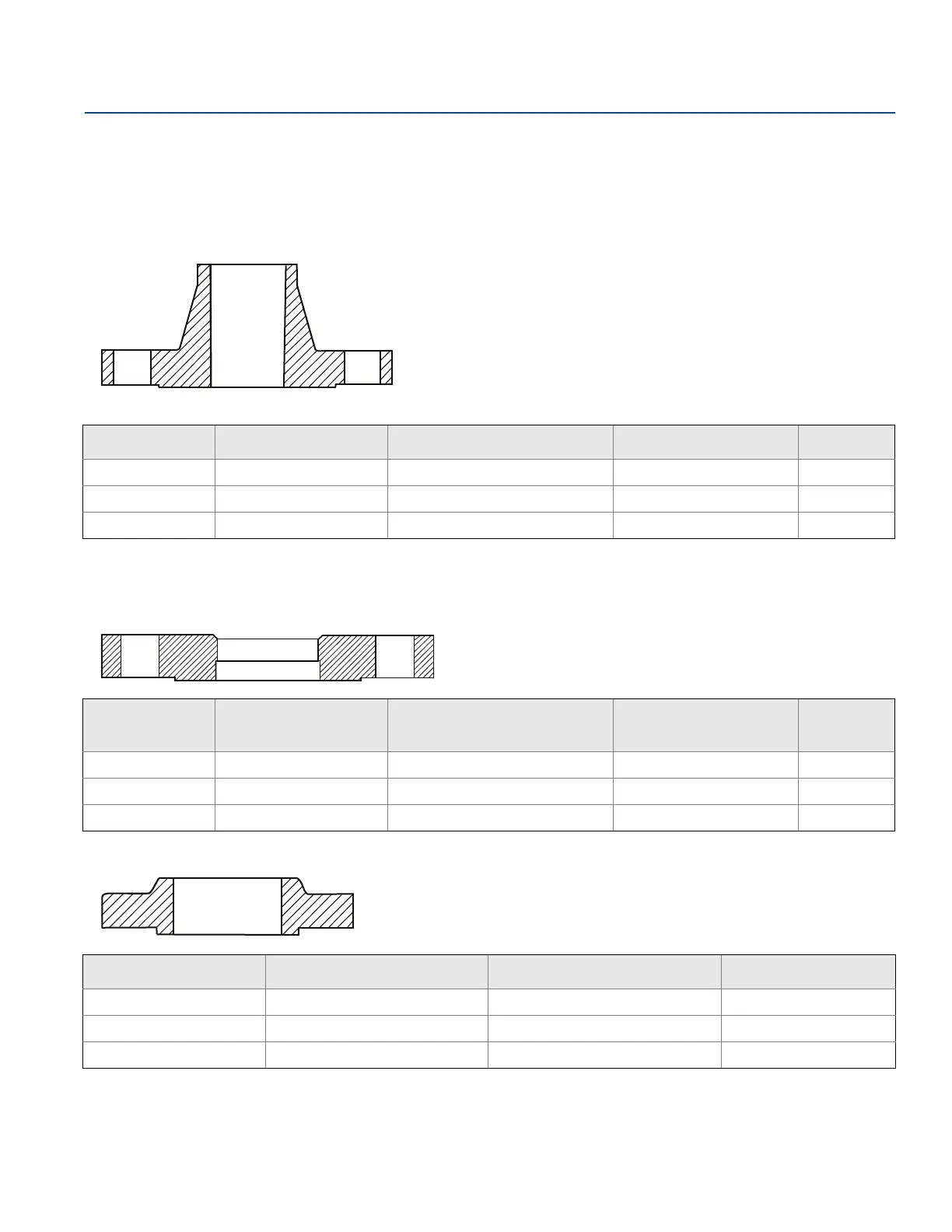

A.4.1 Process connections
Standard flanges
Cone and rod antennas (model code: 2S-8S
and 1R-4R)
Cone antennas with protective plate
(model code: 2H-8H, 2M-8M, and 2N-8N)
Process seal antennas
Designation Mating standard Face style
(1)
Face surface finish Material
ASME ASME B16.5 0.06 in. raised face R
a
= 125-250 μin 316/316L
EN EN 1092-1 2 mm raised face (Type B1) R
a
= 3.2-12.5 μm EN 1.4404
JIS JIS B2220 2 mm raised face R
a
= 3.2-6.3 μm EN 1.4404
1. Face gasket surface is serrated per mating standard.
Designation Mating standard
Face style including
protective plate
Plate surface finish Material
ASME ASME B16.5 Raised face R
a
= 3.2-6.3 μm 316/316L
EN EN 1092-1 Raised face R
a
= 3.2-6.3 μm EN 1.4404
JIS JIS B2220 Raised face R
a
= 3.2-6.3 μm EN 1.4404
Designation Standard Style Material
ASME ASME B16.5 Slip-on 316/316L
EN EN 1092-1 Slip-on (Type 01) EN 1.4404
JIS JIS B2220 Slip-on plate (SOP) EN 1.4404
