Emerson Rosemount 5402 - Cone Antenna with Threaded Tank Connection and Customer Supplied Flange

38
Reference Manual
00809-0100-4026, Rev KC
Mechanical Installation
October 2018
Mechanical Installation

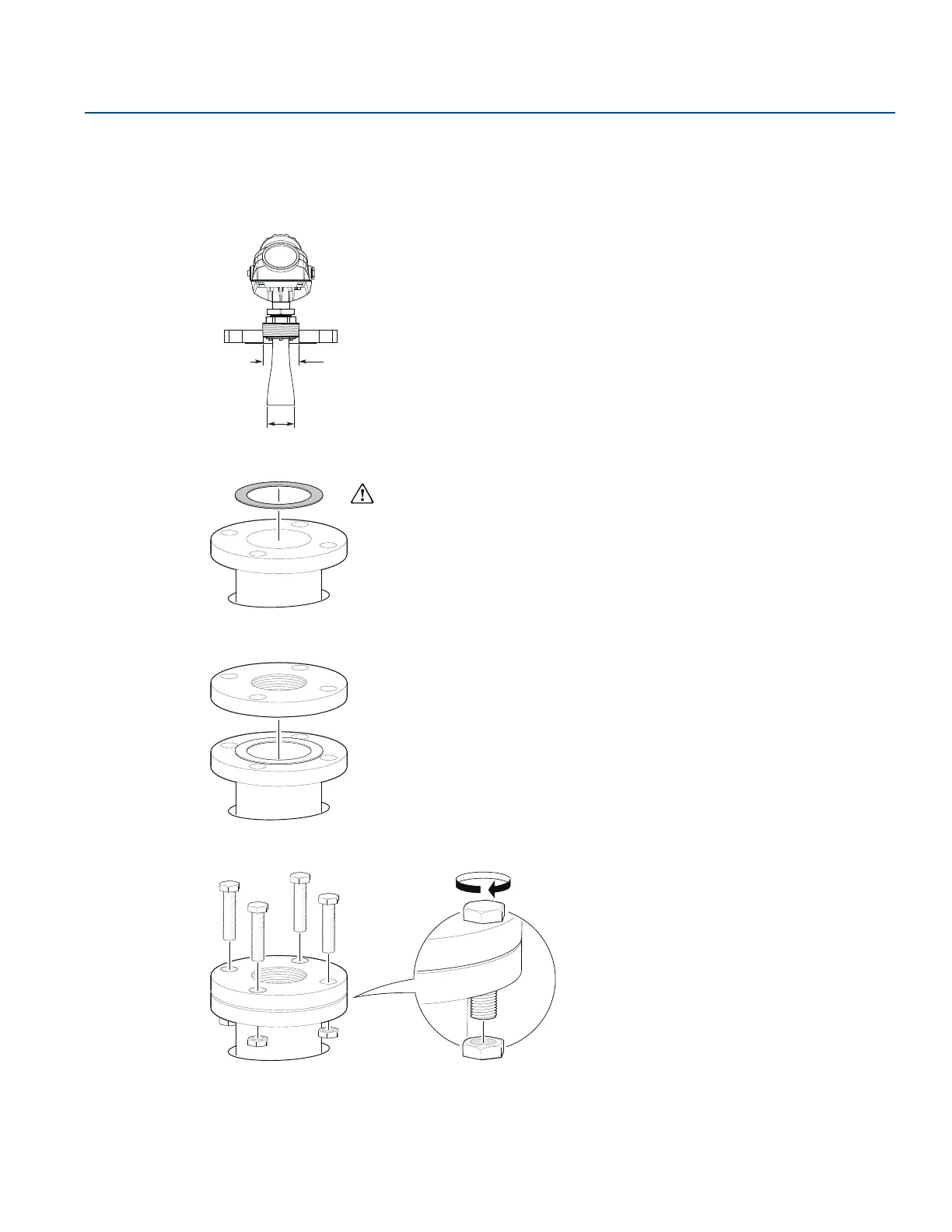

3.4.3 Cone antenna with threaded tank connection and customer
supplied flange
Antenna diameter (D) ≤ Flange hole diameter (d)
1. Place a gasket on the tank flange.
2. Place the customer supplied flange over the gasket.
3. Tighten the bolts and nuts with sufficient torque for the flange and gasket choice.
d
D
Gasket
