A.1.4 Rosemount 2410 Tank Hub
connectivity (output option
code U)
Output
The Rosemount 5400 Level Transmitter communicates with
the Rosemount 2410 Tank Hub via a daisy-chain
connection. The Rosemount 2410 supports
auto-configuration of the F
OUNDATION Fieldbus based
Tankbus. The hub identifies and auto-addresses the
different field devices in the network, manages
communication, and supervises the status of all connected
devices.
Primary fieldbus: Rosemount 2410 communicates with a
host or a Field Communication Unit via TRL2 Modbus
®
,
RS485 Modbus, Enraf or HART
Secondary fieldbus: TRL2 Modbus, Enraf, IEC 62591
(WirelessHART)
Signal wiring
Recommended output cabling is twisted shielded pairs,
18-12 AWG (cable characteristics specified for FISCO
according to IEC 60079-27).
Power supply
The Rosemount 5400 Level Transmitter and other
connected devices are powered by the Rosemount 2410.
A.1.5 RS-485 with Modbus
communication (output option
code M)
Output
The RS-485 Modbus version communicates by Modbus RTU,
Modbus ASCII, and Level Master Protocols.
Data Bits: 8 data bits, 1 start bit, 1 or 2 stop bits, and
software configured parity
Baud Rate: 1200, 2400, 4800, 9600 (default), and 19200
bits/s
Address range: 1 to 255 (default device address is 246)
HART communication is used for configuration via HART
terminals, or tunneling via the RS-485.

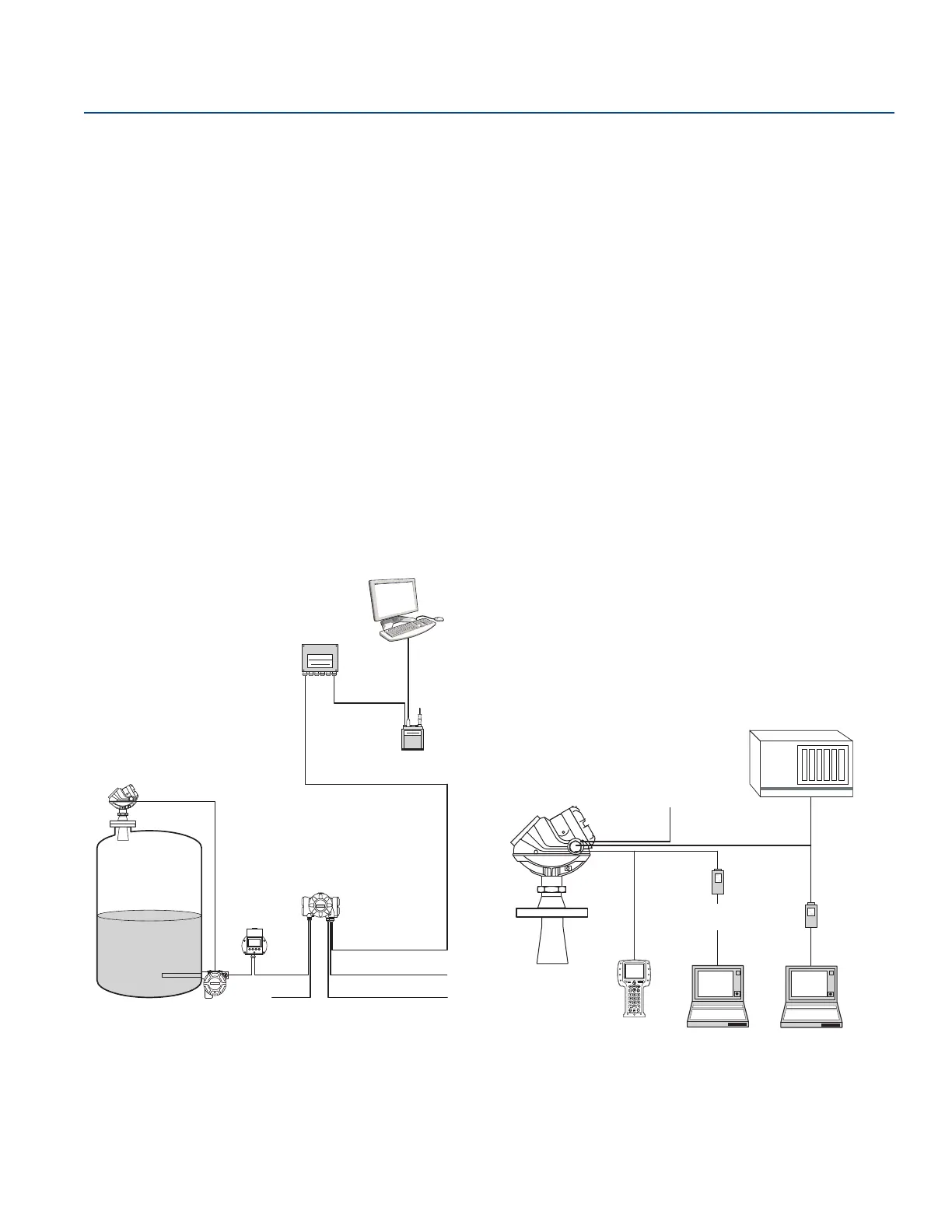

Ta nk Master
™
Rosemount 2410
Tank Hub
Field
Communication
Unit
Rosemount 5400
Level Transmitter
Rosemount 644
Temperature Transmitter
with sensor
Ta nk bus
Secondary bus
(Non-IS)
Relay Outputs
Secondary bus
(IS)
Rosemount 2180
Field Bus Modem
Primary bus
Rosemount
2230 Display
Control
system
Rosemount 5400
Power
Modbus, Levelmaster
Emulation/RS485
HART
modem
RS-232/RS-485
converter
475 Field
Communicator
PC Rosemount
5400 Setup in
Rosemount
Radar Master
PC Rosemount
5400 Setup in
Rosemount
Radar Master
via tunneling
