3.4.10 Rod antenna with flanged connection

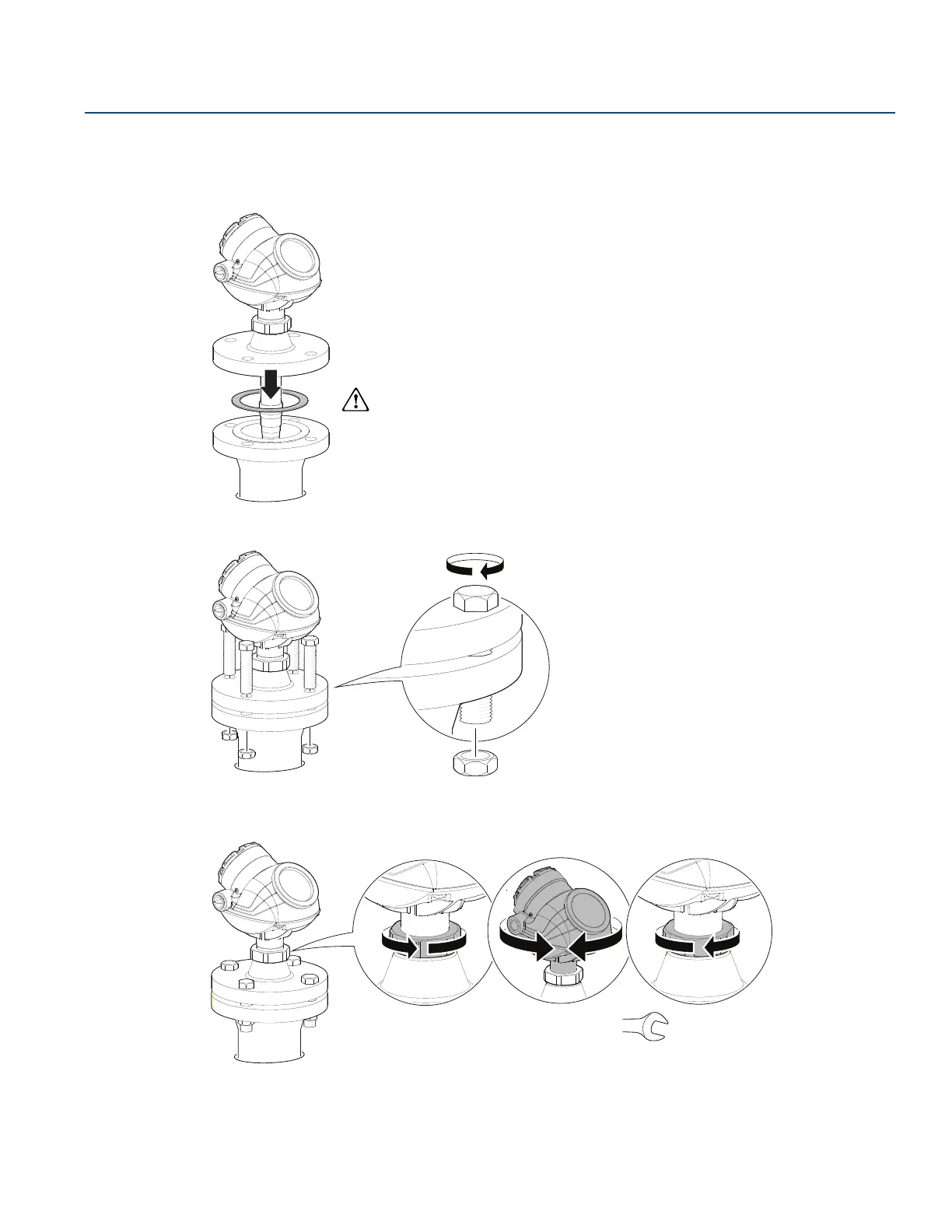

1. Lower transmitter with antenna and flange into the tank nozzle.
2. Tighten bolts and nuts with sufficient torque for the flange and gasket choice.
3. Adjust display orientation (optional).
Gasket
Torque
30 Lbft (40 Nm)
