C.6.3 View Signal Quality Metrics values in RRM
To view Signal Quality Metrics in RRM, select Tools > Device Display and select the Signal Quality
Metrics tab.

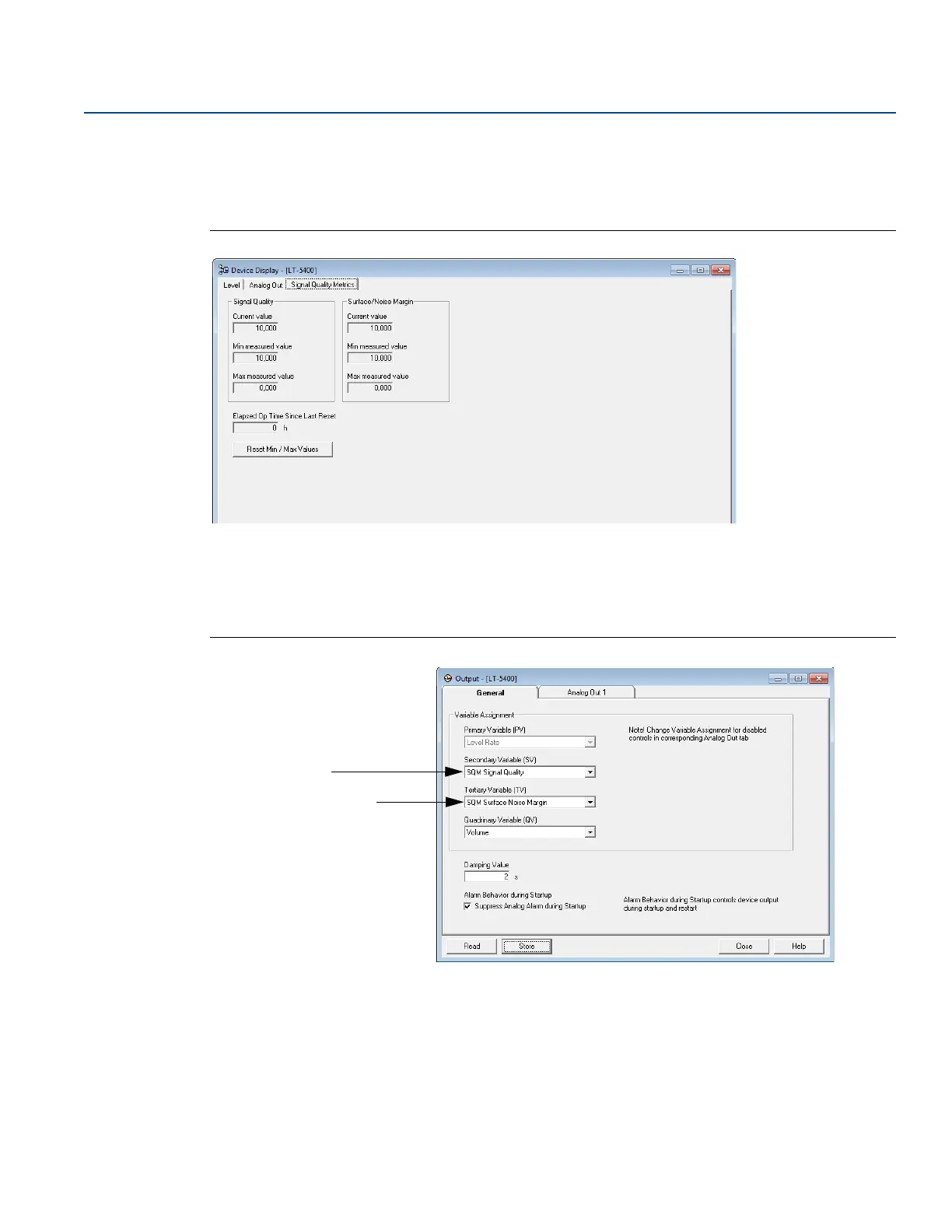

Figure C-4. View Signal Quality Metrics Values
Signal Quality Metrics can be shown on the LCD panel. See “Specifying display panel variables” on
page 151.
Signal Quality Metrics can be assigned to Transmitter Variables (SV, TV, or QV). In RRM, this can be done
by selecting Setup > Output from the menu.
Figure C-5. Configure Transmitter Variables for Signal Quality Metrics
Variables can be sent to Distributed Control System (DCS) to trigger an alarm. Suitable trigger levels vary
from application to application. Guidelines for appropriate values can be determined by logging Signal
Quality Metrics over time and viewing minimum/maximum values. The Signal Quality alarm trigger
value should be at least 1, but a better guidance is 2-3.
Signal Quality
Surface/Noise Margin
