Mechanical Installation
3.4 Mounting
Mount the transmitter on a nozzle on top of the tank making sure only qualified personnel perform the
installation.
The transmitter housing must not be opened.
If the transmitter housing must be removed for service, make sure the PTFE sealing is carefully protected
against dust and water.

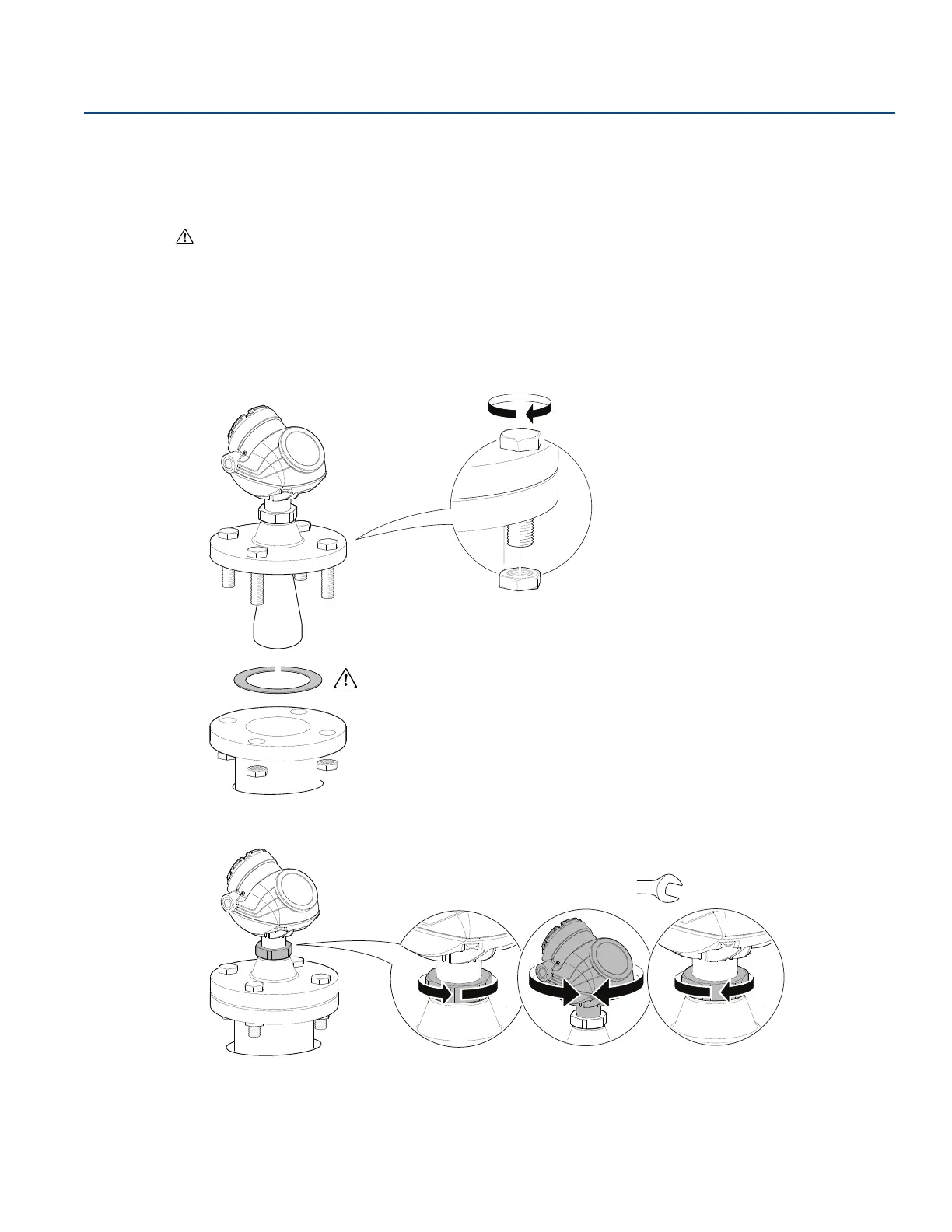

3.4.1 Cone antenna with flange connection
1. Lower transmitter with antenna and flange into the nozzle. Tighten bolts and nuts with sufficient
torque for the flange and gasket choice.
2. Adjust display orientation (optional).
Gasket
Torque
30 Lbft (40 Nm)
