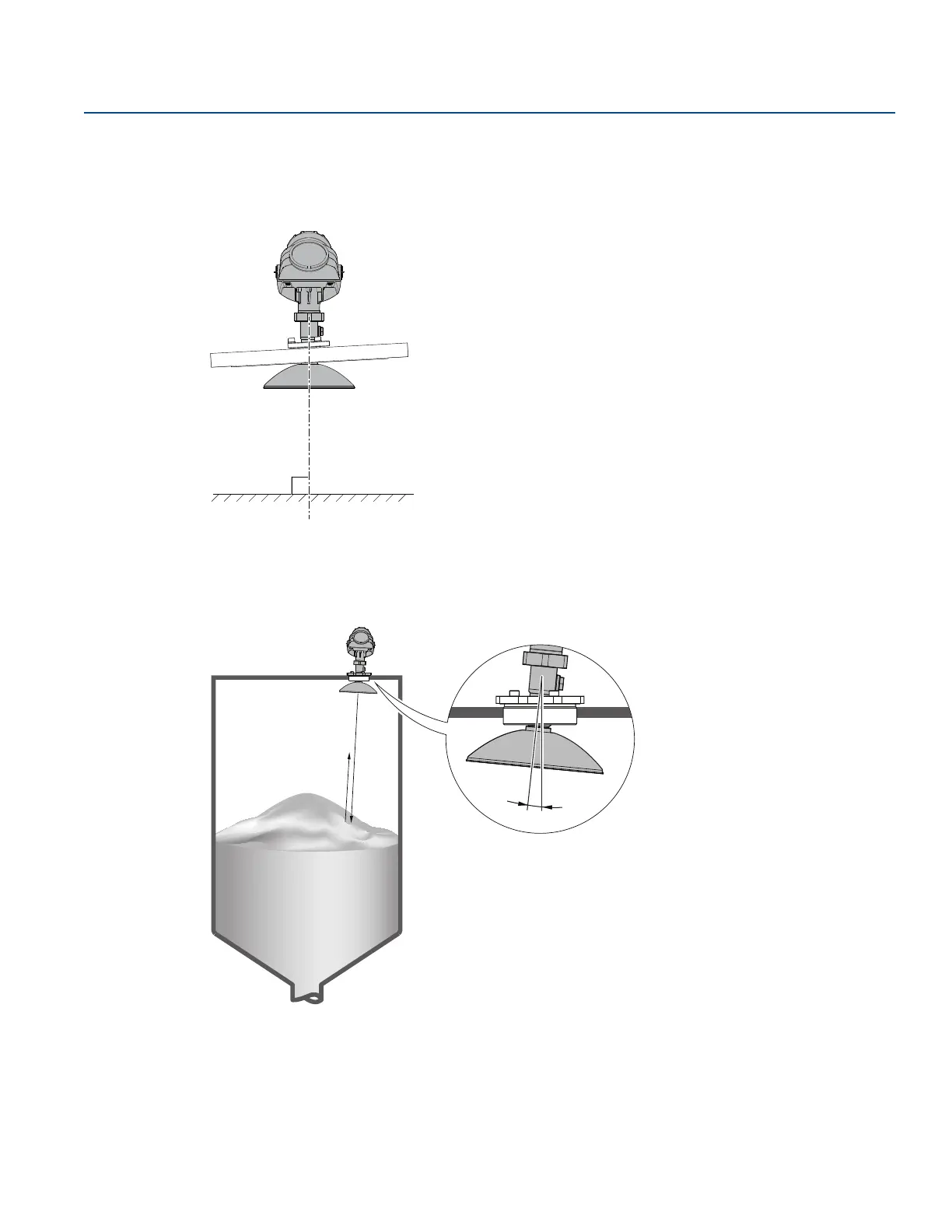

3.4.8 Adjust inclination of parabolic antenna
Orientation
 General best practice is to initially align the parabolic antenna vertically to the ground.
 If the surface echo is weak, a small inclination of the antenna toward the surface slope may improve
the performance.
The angle of slope differs during filling and emptying, and thus the signal strength. Therefore, monitor
the entire cycle to verify optimum antenna inclination.
90°
