Mechanical Installation
3.4.4 Process seal antenna with flange
(1)

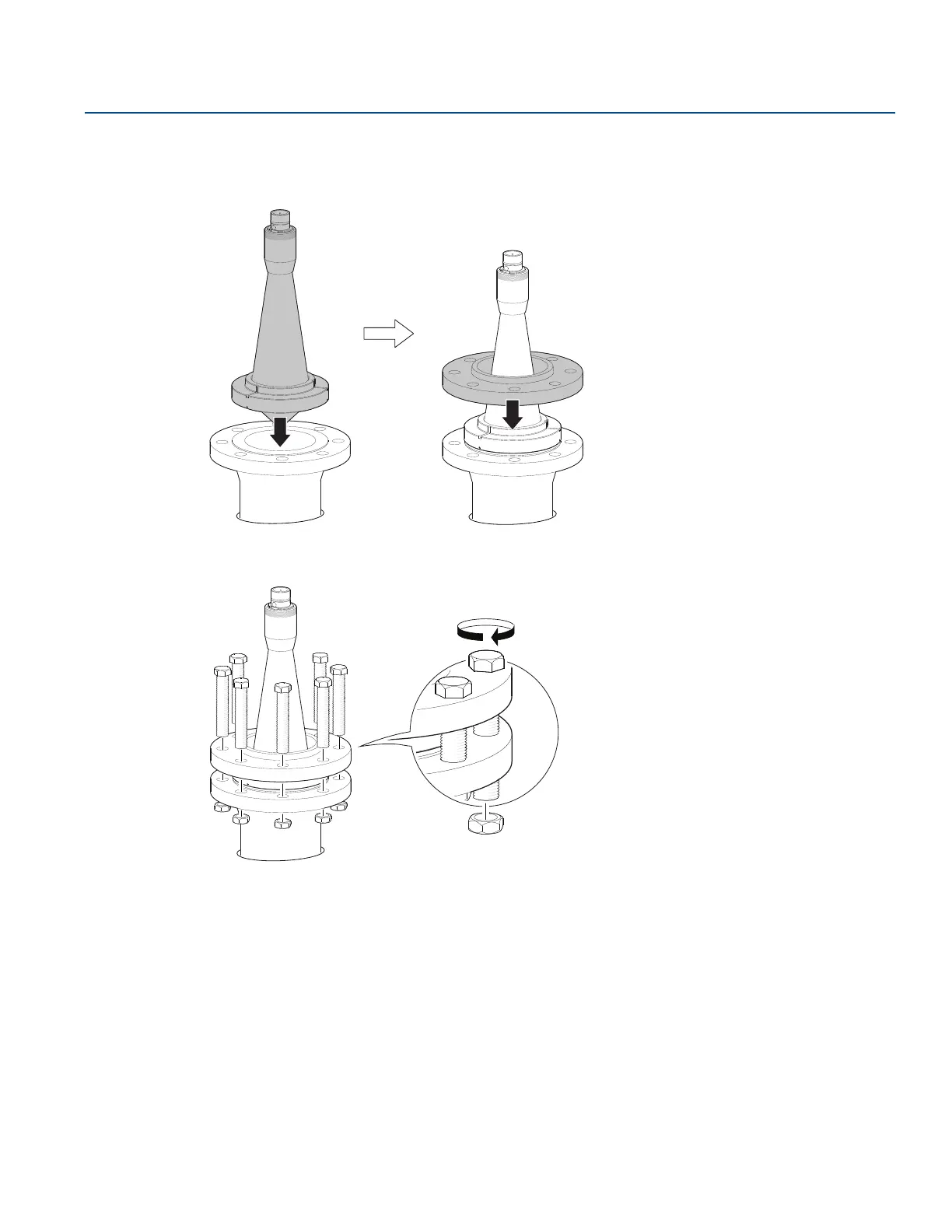

1. Place antenna on top of the nozzle and mount flange.
2. Tighten bolts cross-wise. For torque information, see Table 3-10 on page 47.
1, The mounting information applies to the updated Process Seal antenna design, released in February 2012. Antennas manufactured before this
date have wetted O-rings and require a different installation procedure. For detailed information on the updated Process Seal antenna, see the
Rosemount 5400 Series Reference Manual - Supplementary Information for Process Seal Antennas Manual Supplement.
