Emerson Rosemount 5402 - Special Considerations in Solids Applications

20
Reference Manual
00809-0100-4026, Rev KC
Mechanical Installation
October 2018
Mechanical Installation
3.3.2 Special considerations in solids applications
 The transmitter should be mounted as close to the center of the tank as possible, but not in the center
of the tank. A general practice is to mount the transmitter at
2
/
3
tank radius from the tank wall, see
Figure 3-4.

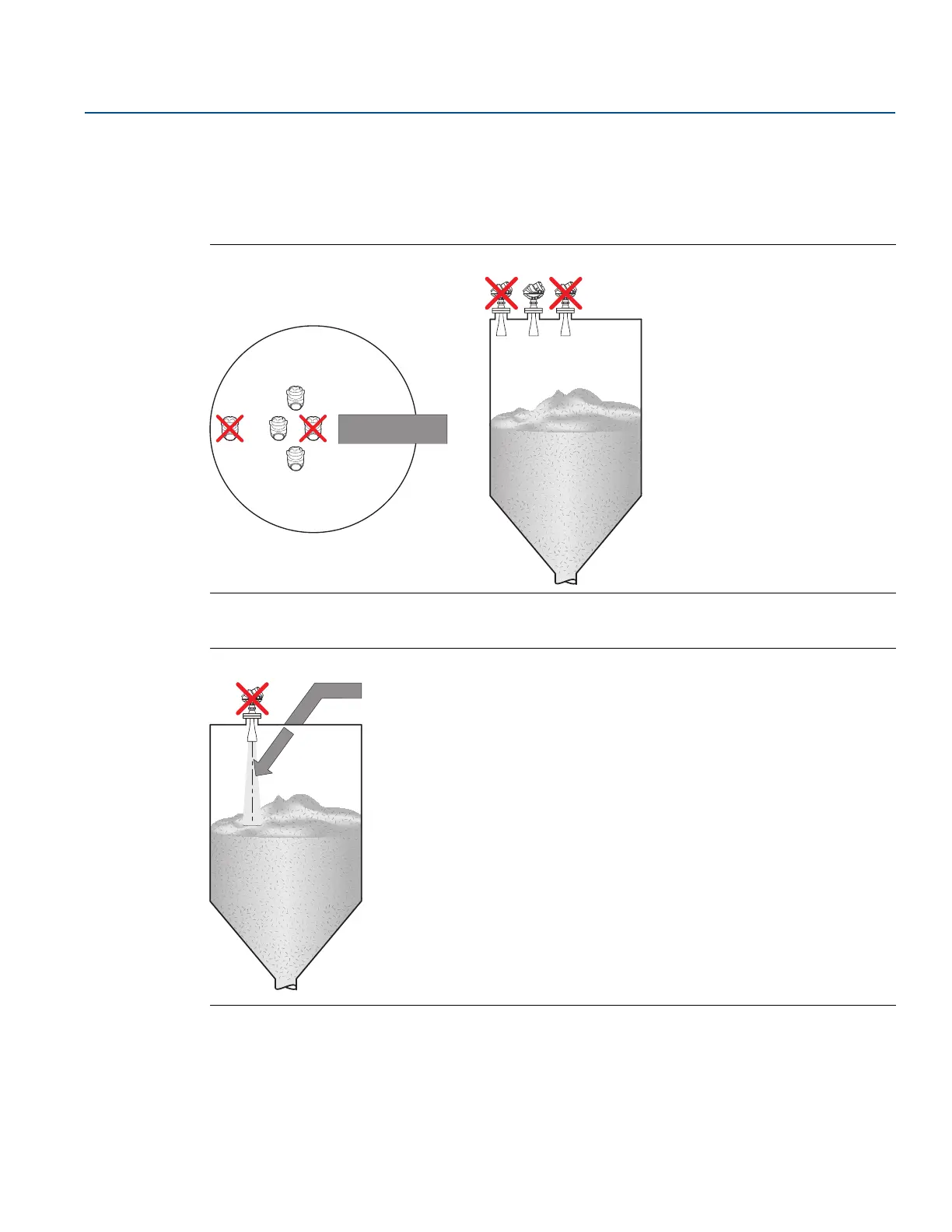

Figure 3-4. Transmitter Location in Solids Applications
 The radar signal must never be shaded by the inlet nor the injected product, see Figure 3-5.
Figure 3-5. Install the Transmitter with a Clear and Unobstructed View
