Reference Manual
00809-0100-4026, Rev KC
Mechanical Installation
October 2018
Mechanical Installation
 A metal still-pipe can be used to avoid disturbing objects, turbulence, and foam (G).

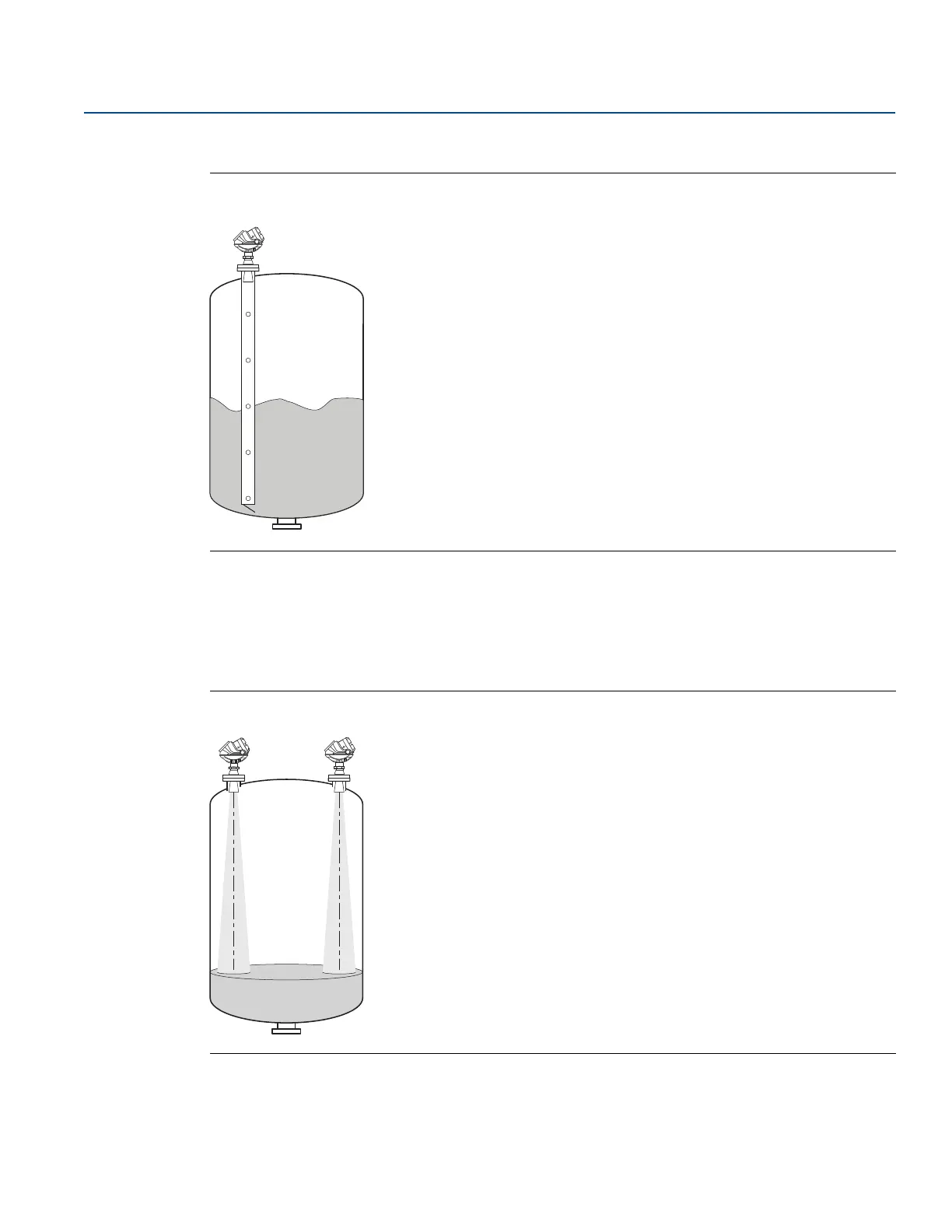

Figure 3-2. Mounting in Still-Pipe
 The walls in non-metallic tanks are invisible to the radar signal, so nearby objects outside of the tank
may be detected.
 Choose the largest possible antenna diameter for installation. A larger antenna concentrates the radar
beam, will be less susceptible to obstruction interference, and assures maximum antenna gain.
 Multiple Rosemount 5400s can be used in the same tank without interfering with each other (H).
Figure 3-3. Multiple Rosemount 5400 in the Same Tank
(G)
(H)
