Mechanical Installation
October 2018
Mechanical Installation

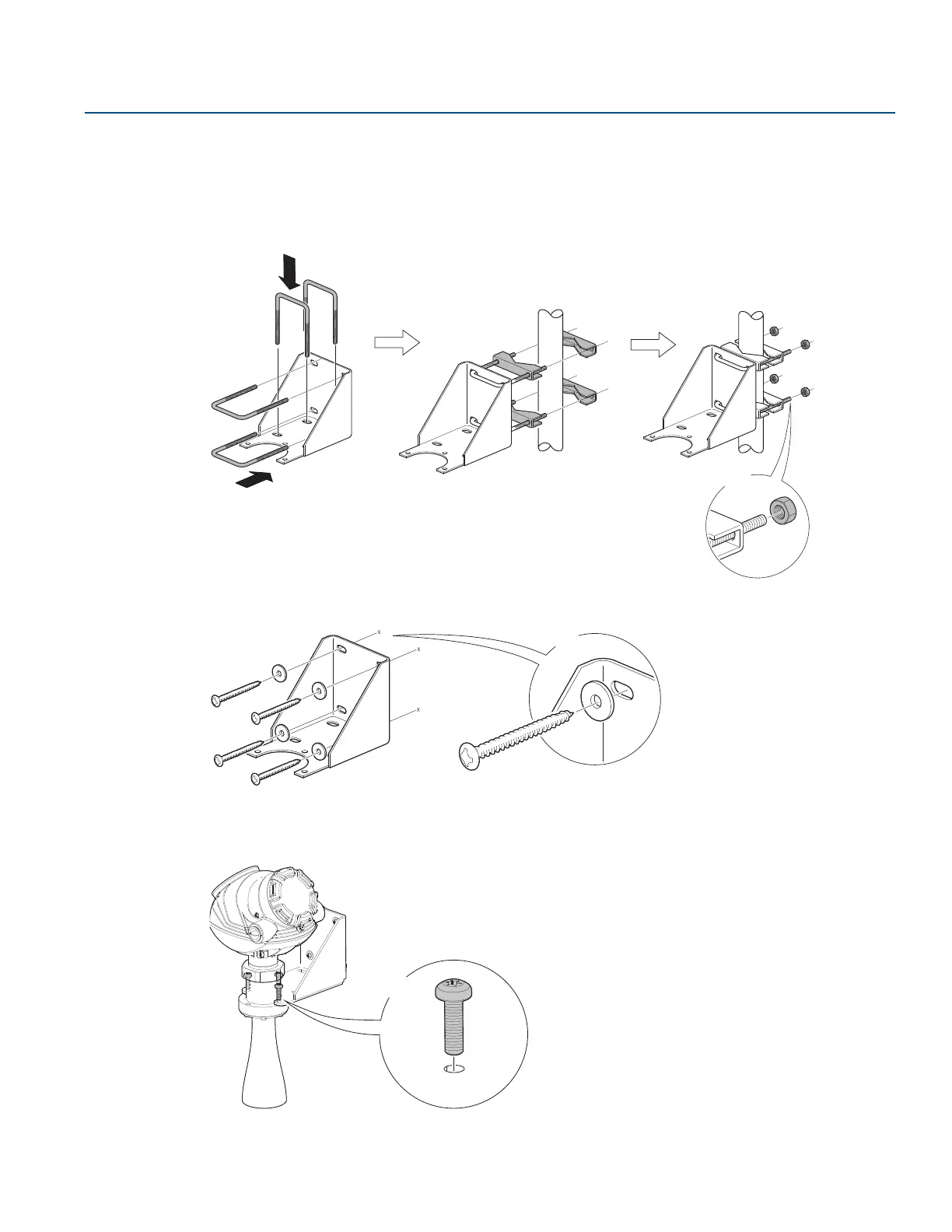

3.4.12 Bracket mounting
1. Mount bracket to the pipe/wall.
On pipe:
On wall:
2. Mount transmitter with antenna to the bracket.
4X
Horizontal pipe
Vertical pipe
4X
Use screws suitable for the purpose
3X
