Mechanical Installation
October 2018
Mechanical Installation

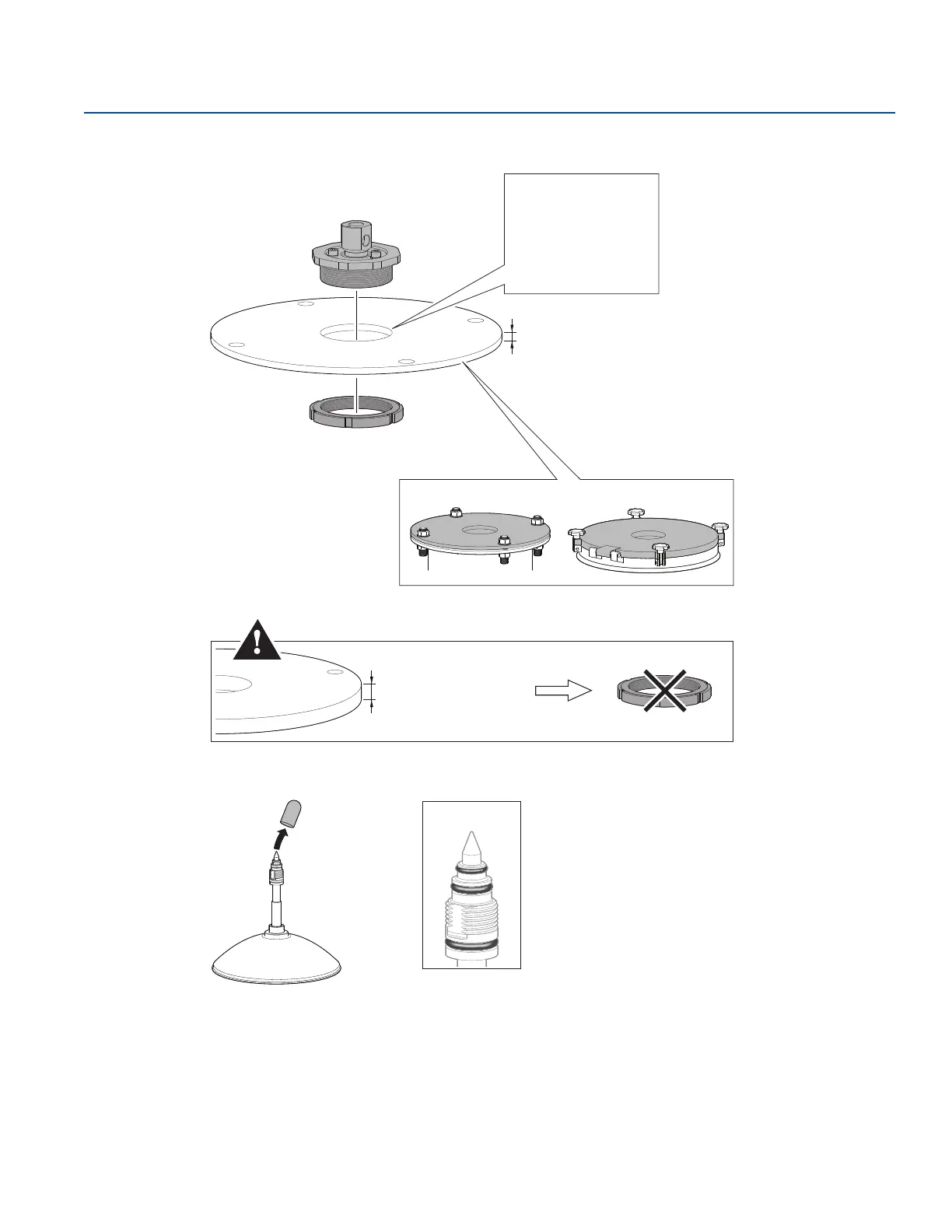

Make sure the antenna adapter fits tightly to the flange/manhole cover.
4. Remove protection cap. Visually inspect the O-rings for damage and dirt.
Ø 3.98 ± 0.02 in.
(Ø 101 ± 0.6 mm)
OR
G3½"
Max. 1.18 in. (30 mm)
> 0.59 in. (15 mm)
O-rings
D
