Mechanical Installation
October 2018
Mechanical Installation

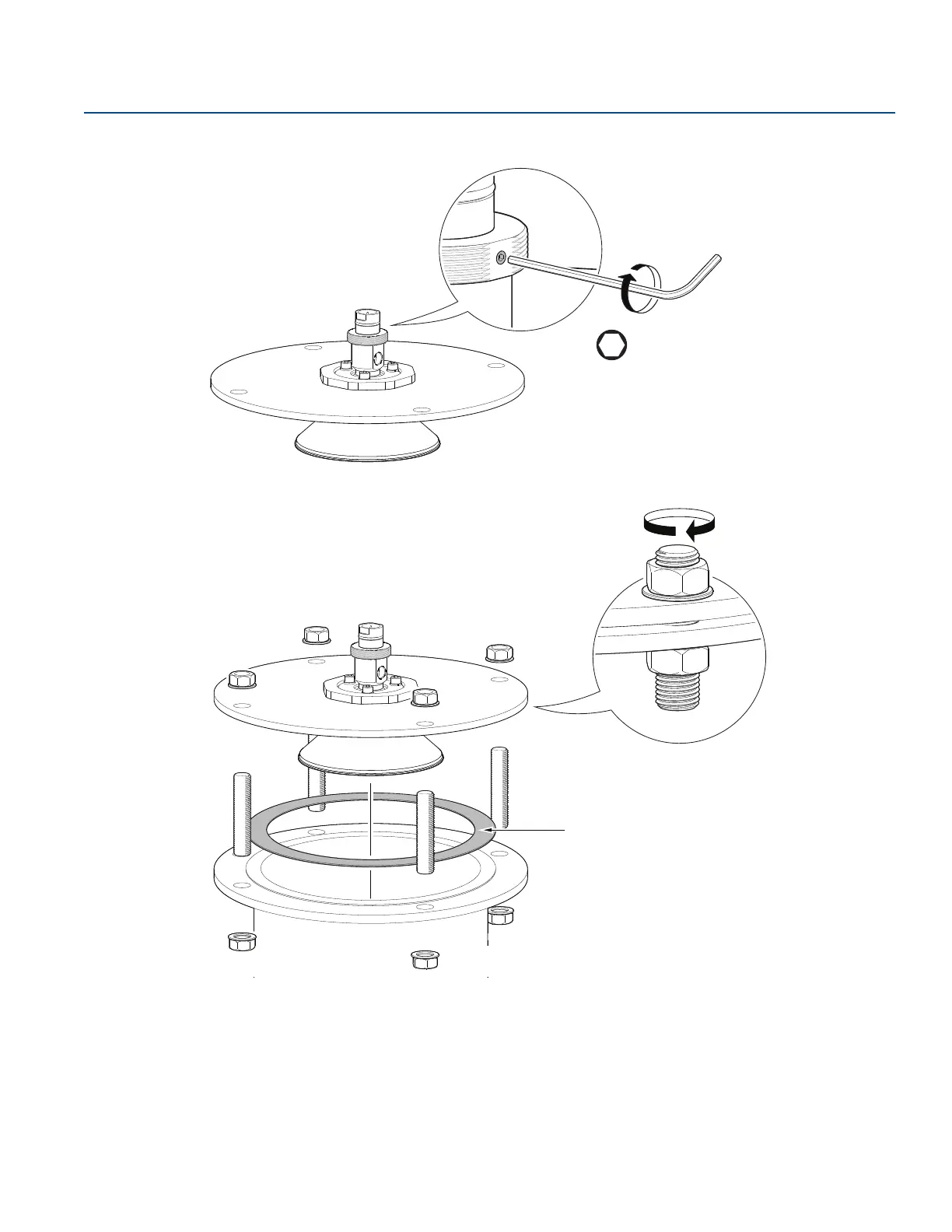

7. Tighten set screw.
8. Mount antenna assembly on tank.
9. Adjust the inclination of the antenna. See section “Adjust inclination of parabolic antenna” on page 63
for further information.
M4
Torque 5 in-lb (0.5 Nm)
Gasket
