Reference Manual

00809-0100-4026, Rev KC

Electrical Installation

October 2018

Electrical Installation

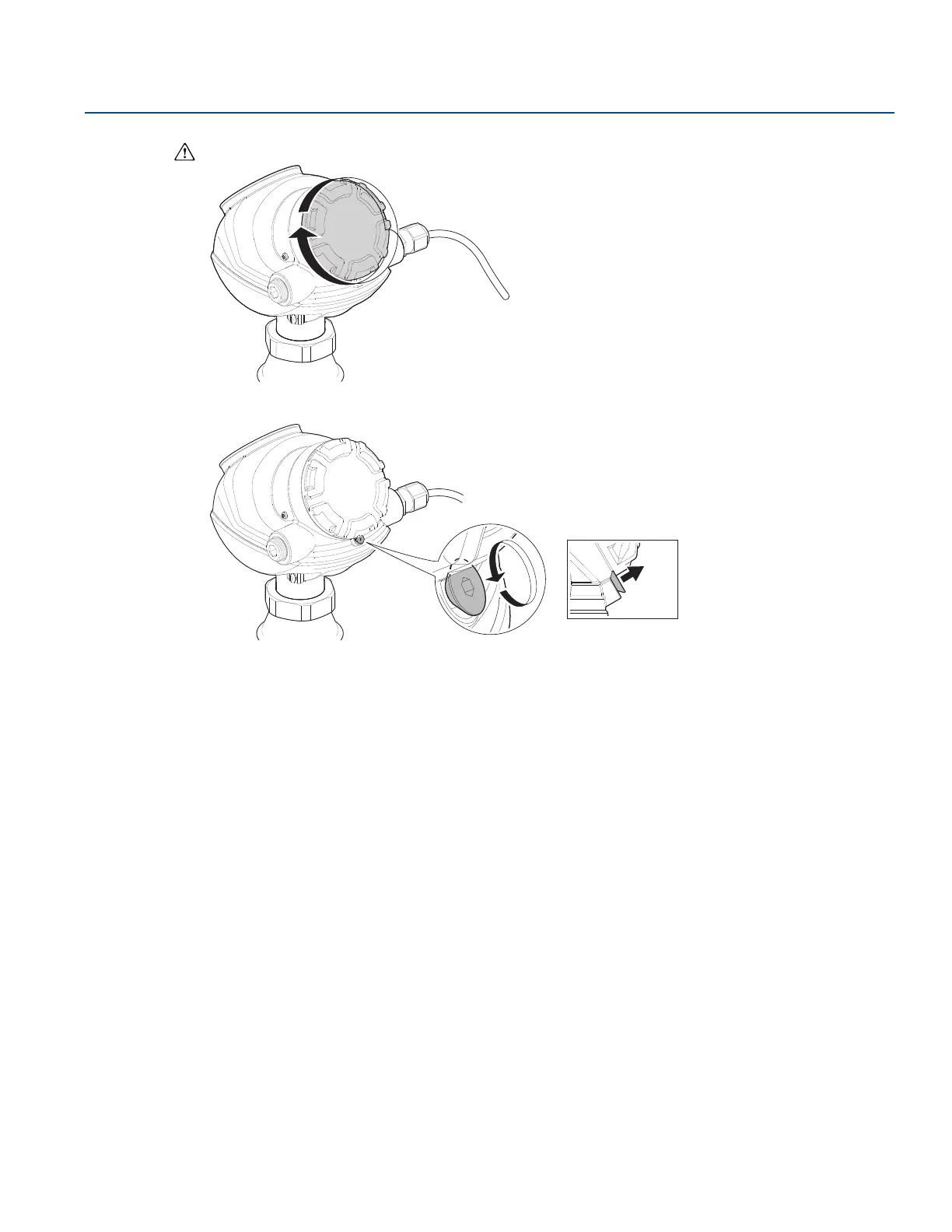

8. Mount the cover so it is secure to meet explosion-proof requirements.

9. For ATEX, IECEx, NEPSI, INMETRO, and TIIS installations, lock the cover with the locking screw.

10.Connect the power supply.
