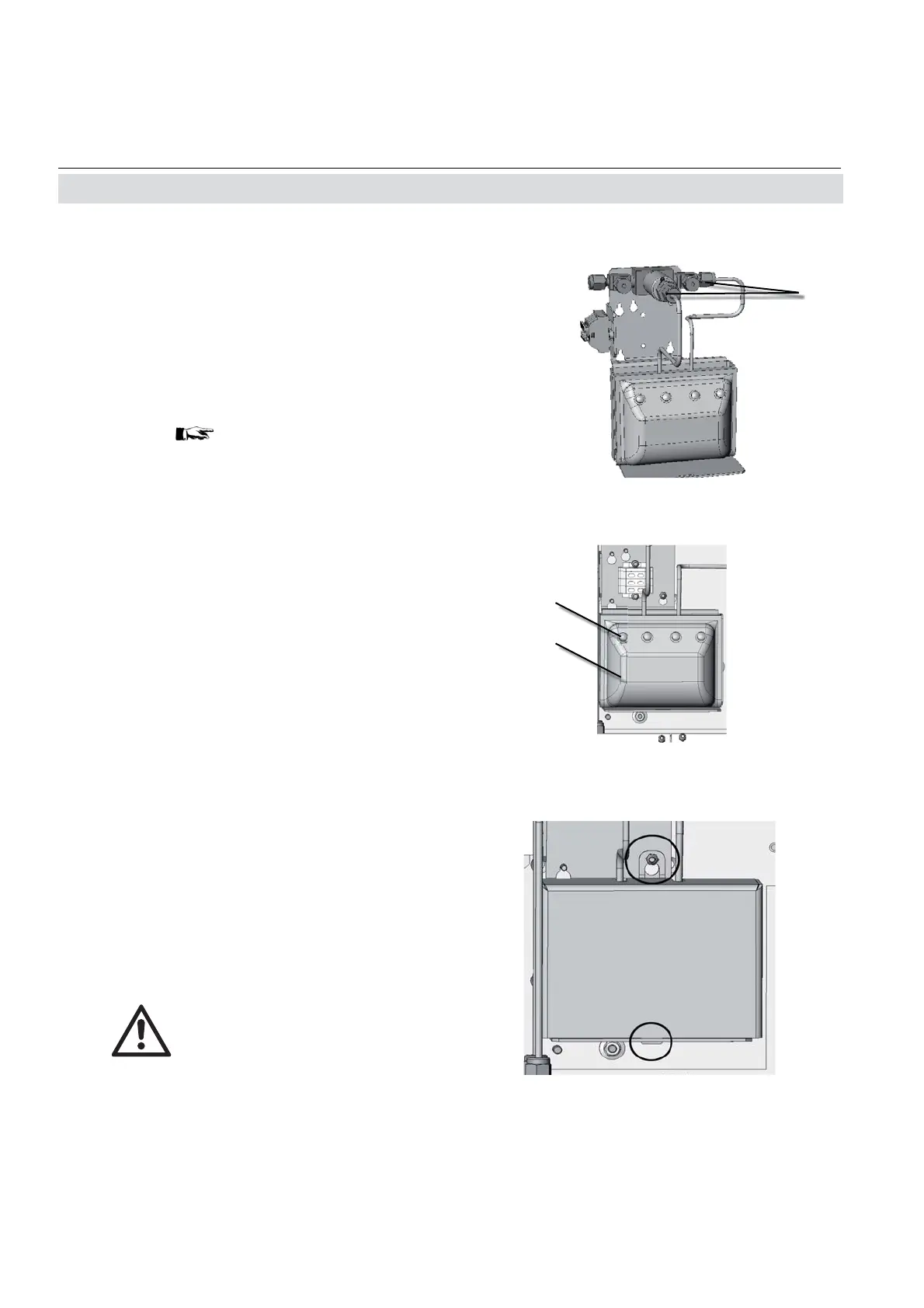

Fig. 4-9: Jacket in converter assembly
1: Jacket
2: Boot hooks
(8 pcs)
1
2
13. Lay the lace cord around the boot hooks
and close the jacket (Fig. 4-10).
Fig. 4-10: Heated jacket
1: Union nuts
4.3 Vapor Recovery Application - Special Information
11. Connect the open gas lines to the fi ttings
of the solenoid valve (Fig. 4-9). Carefully
fi x the union nuts.
12. At this point we recommend to perform a
leak test (
page 3-2), to ensure the
gas connections are tight! If some are not,
they are accessible now.
1
Fig. 4-11: Converter metallic cover
14. Install the metallic cover in such a way,
that when it is pushed downwards, the
key fi ts into the small slot and the screw
nut is on top of the butt strap (Fig. 4-11).
15. Fix the cover with the screw nut.
16. Make sure all installation has been done
properly and close the front door. Fix the
door by means of ALL 20 screws.
Tightening torque:
25 Nm (221 in.lb)
17. You‘re done!
