Emerson X-STREAM XE User Manual

Emerson Process Management GmbH & Co. OHG 5-11
X-STREAM XE
Instruction Manual
HASXEE-IM-HS
10/2012
5
Startup
The setup menu enables several additional
congurations, e.g.
• 2 pages measurement display
• different font sizes
6-29.
The very rst display line shows
• a ashing heart, showing the instrument is
operating
• one or more icons to indicate the analyzer
status. Some of these are explained by a
text message in the last line (see below)
• a channel indicator, if the current menu
page is related to a specic channel only.
The display´s bottom line shows plain text
status information (errors, maintenance
requests, function checks or off-spec perfor-
mance).
Active messages are stored in an internal
buffer. If there is more than one message in
the buffer, the display will cycle through.
Most messages also activate a NAMUR relay
(if a relay has been assigned to that NAMUR
function;
6-68 ).
Note!
There are also functions, that do activate a
relay, but are not shown on the display. In
such cases, check the STATUS menu for
more information.
5.5 Powering Up

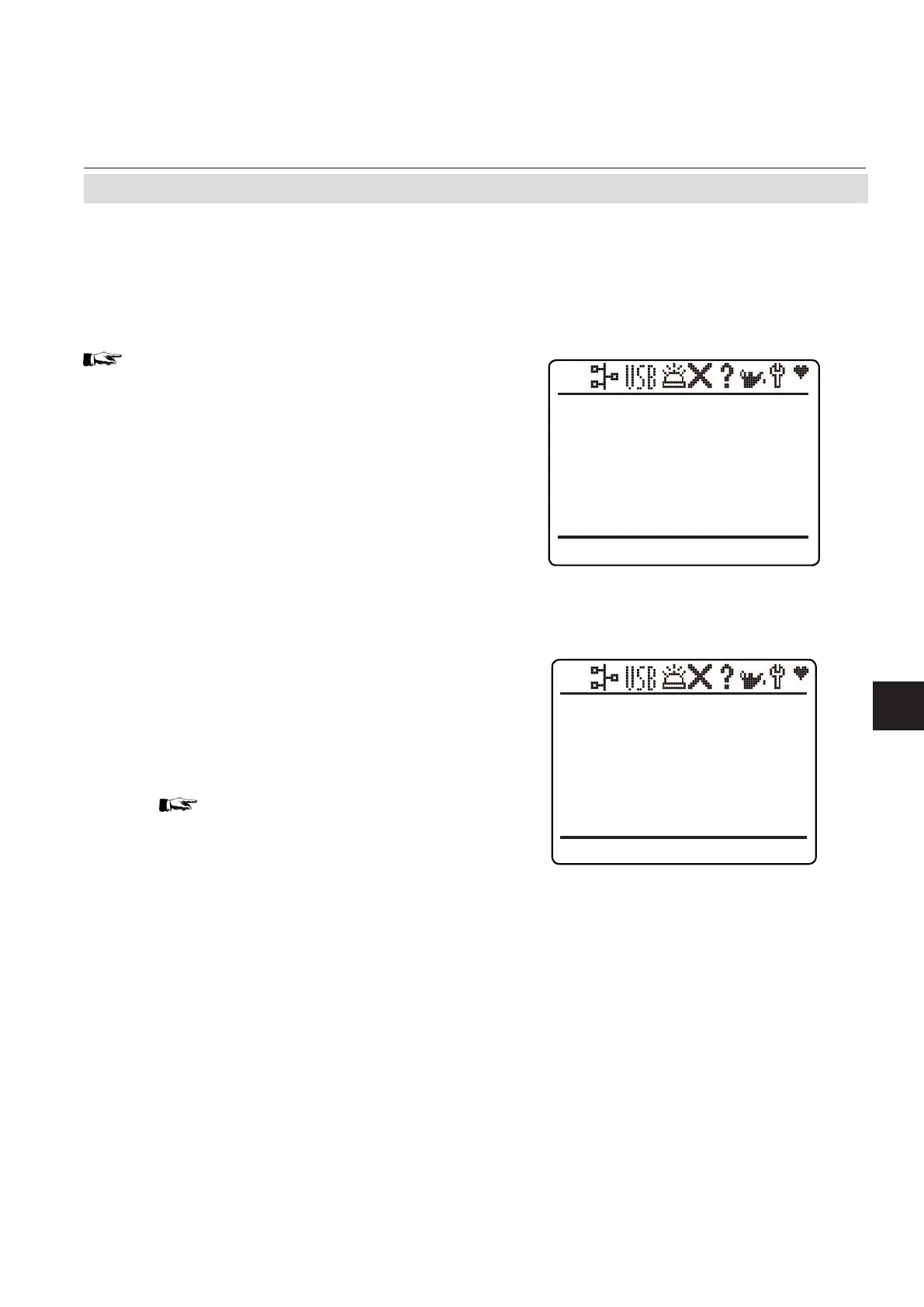

MEASUREMENT DISPLAY
4 lines display
2 lines display with additional
secondary measurement line
Input
0.000
ppm
Ch1 CO
Output
0.000
ppm
Ch2 CO
Sample
0.000
ppm
Ch3 CO
Boiler
0.000
ppm
Ch4 CO
10.0000
ppm
Input
Ch1
CO
10.0000
ppm
Output
Ch2
CO
Flow 1 0.00 l/min
