Ch1

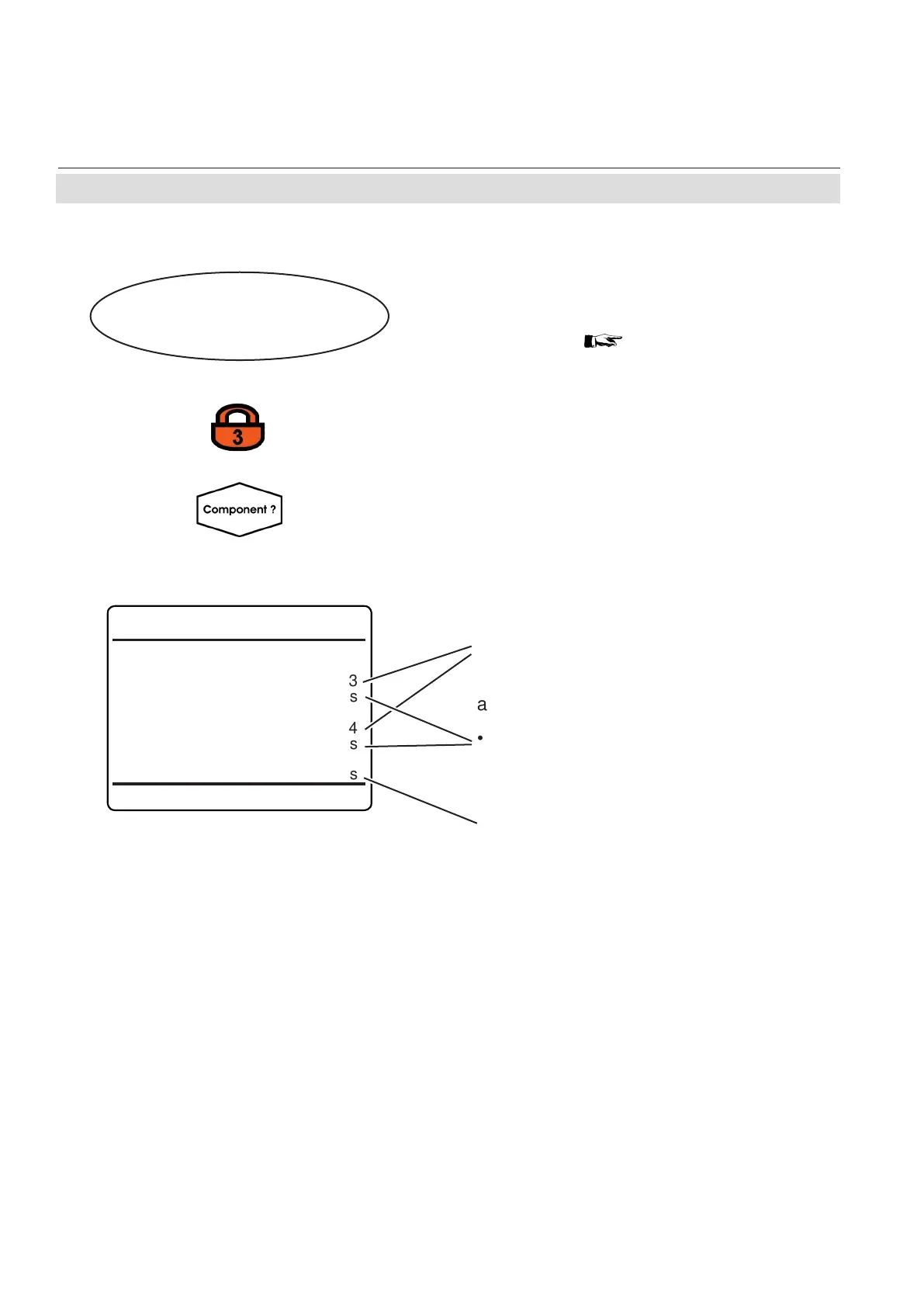

Valve Assignment 1of3
Sample Valve: V3
Purge Time: 10 s
Zero Valve: V4
Purge Time: 5 s

Correct Assign Yes
6.2.3.2.4 Setup Calibration Valves
6.2.3 Setup Menu
If the system is setup accordingly, the access
code for level 3 must be entered to gain ac-
cess to this menu.
Multi-channel unit:
In SELECT COMPONENT, select the chan-
nel to be congured.
Setup..
Calibration..
Valve Assignment..
For the selected channel:
• assign the valves to be used for the diffe-
rent functions, (available options: None,
V1 ... V20)
and
• specify the purge time for each valve (ac-
cepted values: 0 ... 10,000 s)
If there is no conict in valve assignment, this
line shows Yes, otherwise check if, e.g. one
valve has been assigned different functions
for the same channel.
Note!
The purge time depends on the gas line
design and length, and is the time it takes
for the gas stream to completely ll the mea-
suring cell, after the related valve has been
opened.
Take care, that measured concentrations are
faulty, because the cell is lled with improper
gas, if purge times are too short.
Note!
This line is available only if “Valves” in IN-
STALLED OPTIONS is set to a value other
than none. (
6-88 ) .
