CG Drives & Automation 01-7318-01r1 Functional description 109
Timer 2 Value [659]
Timer 2 Value shows actual value of the timer.
11.7.6 Counters [660]
Counter functions for counting pulses and signalling on
digital output when counter reaches specified high and low
limit levels.
The counter is counting up on positive flanks on the
triggered signal, the counter is cleared as long as the Reset
signal is active.
The counter can be automatically decremented with
specified decrement time, if no new trigger signal has
occurred within the decrement time.
The counter value is clamped to the high limit value and the
digital output function (C1Q or C2Q) is active when
counter value equals high limit value.
See Fig. 84 for more information of the counters.

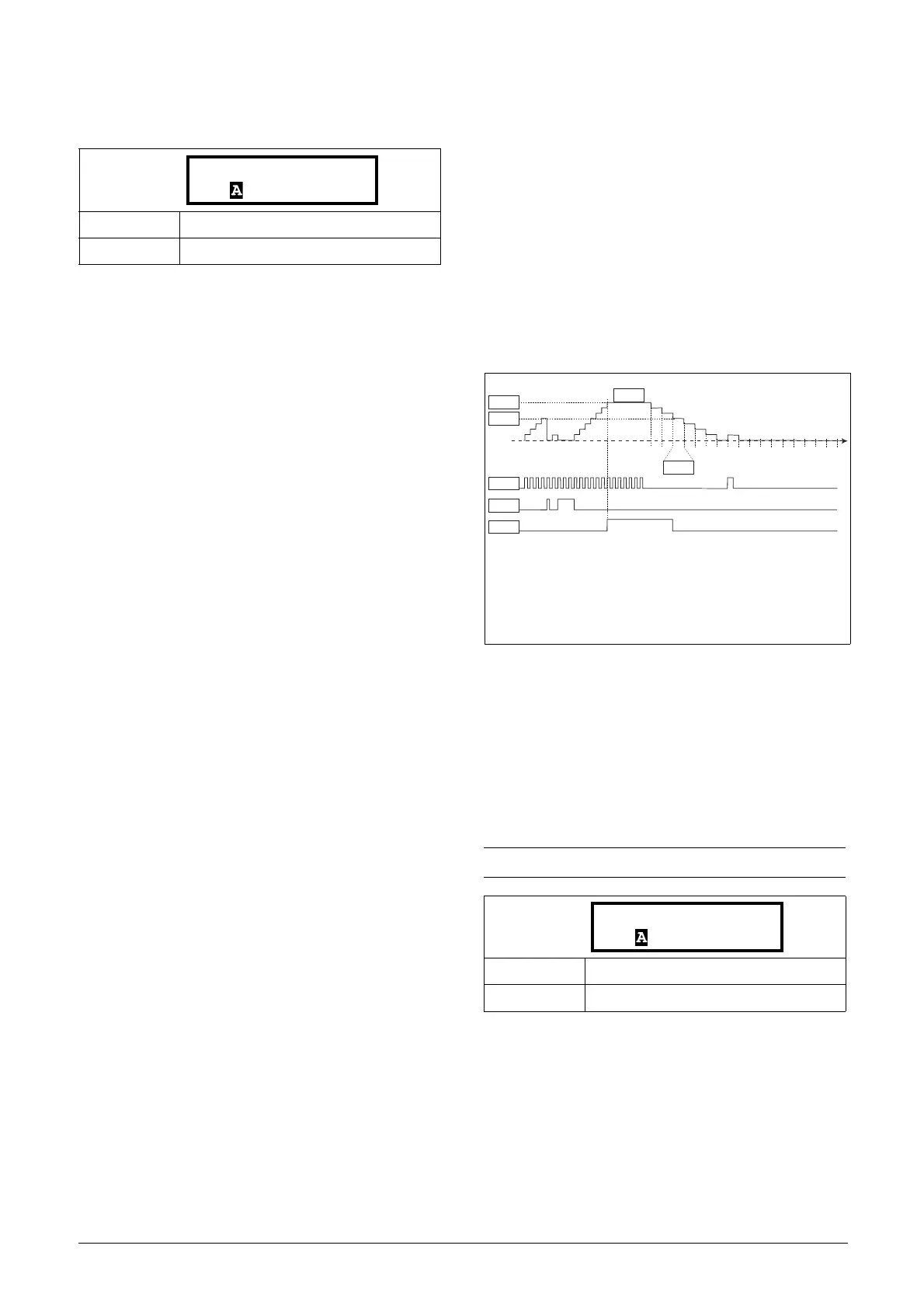

Fig. 84 Counters, operating principle.
Counter 1 [661]
Counter 1 parameter group.
Counter 1 Trigger [6611]
Selection of the digital output signal used as trigger signal
for counter 1. Counter 1 is incremented by 1 on every
positive flank on the trigger signal.
Default: 00:00:00, hr:min:sec
Range: 00:00:00–9:59:59
659 Timer2 Value
Stp 00:00:00
NOTE: Maximum counting frequency is 8 Hz.
Default: Off
Selection: Same selections as “Digital Out 1 [541]”.
6619
6615
6614
6611
6612
541
541 = Digital Out 1 function
6611= Counter 1 trigger
6612= Counter 1 reset
6613= Counter 1 High value
6614= Counter 1 Low value
6615= Counter 1 Decrement timer
6619= Counter 1 value
6613
6611 C1 Trig
Stp Off
