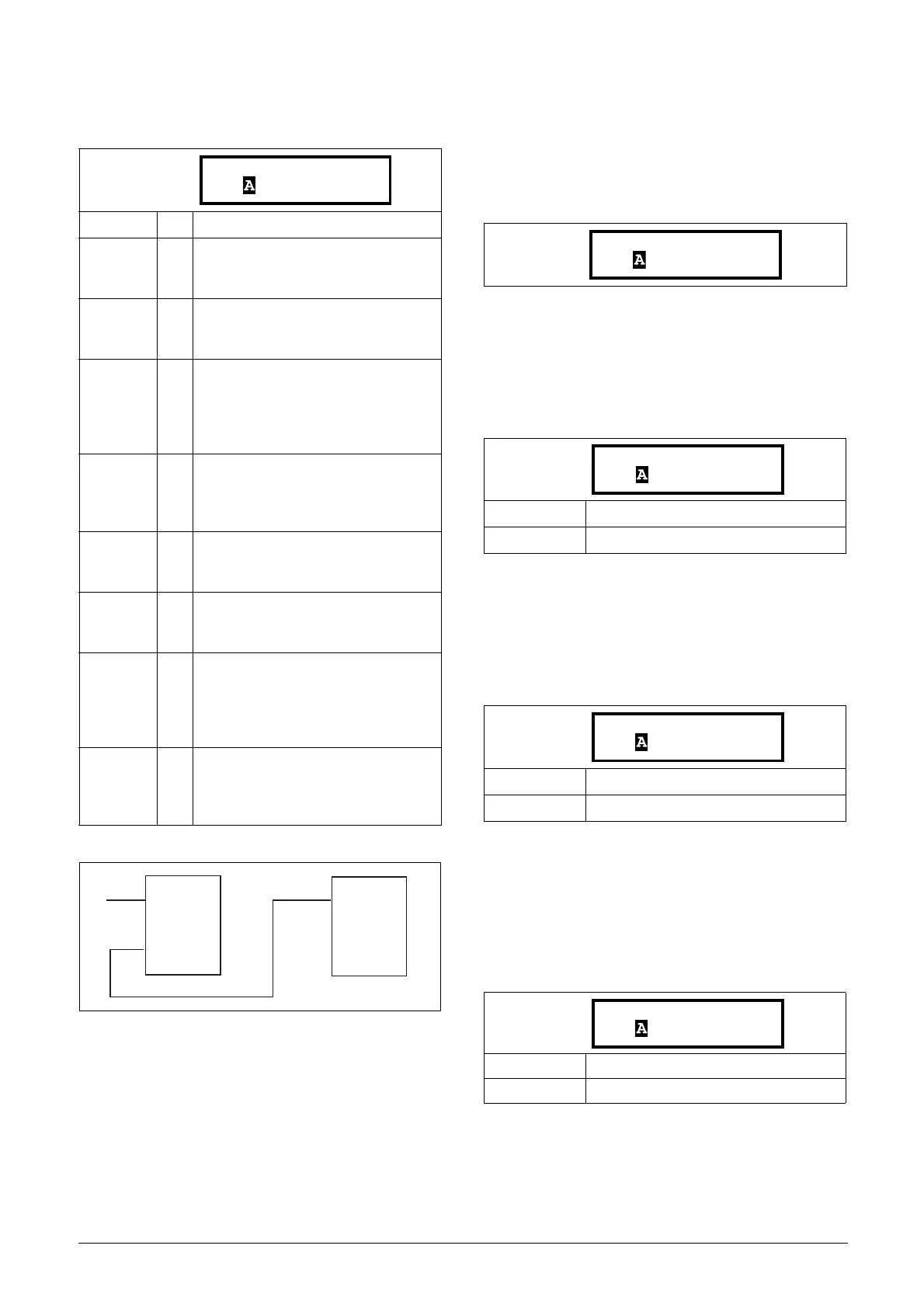

CG Drives & Automation 01-7318-01r1 Functional description 91
AnOut 1 Setup [532]
Preset scaling and offset of the output configuration.
Fig. 74
AnOut1 Advanced [533]
With the functions in the AnOut1 Advanced menu, the
output can be completely defined according to the
application needs. The menus will automatically be adapted
to “mA” or “V”, according to the selection in “AnOut1
Setup [532]”.
AnOut1 Min [5331]
This parameter is automatically displayed if User mA or
User V is selected in menu “AnOut 1 Setup [532]”. The
menu will automatically adapt to current or voltage setting
according to the selected setup. Only visible if [532] = User
mA/V.
AnOut1 Max [5332]
This parameter is automatically displayed if User mA or
User V is selected in menu “AnOut1 Setup [532]”. The
menu will automatically adapt to current or voltage setting a
ccording to the selected setup. Only visible if [532] = User
mA/V.
AnOut1 Bipol [5333]
Automatically displayed if User Bipol mA or User Bipol V is
selected in menu AnOut1 Setup. The menu will
automatically show mA or V range according to the selected
function. The range is set by changing the positive
maximum value; the negative value is automatically adapted
accordingly. Only visible if [512] = User Bipol mA/V.
Default: 4-20mA
4–20mA 0
The current output has a fixed threshold
(Live Zero) of 4 mA and controls the full
range for the output signal. See Fig. 71.
0–20mA 1
Normal full current scale configuration of
the output that controls the full range for
the output signal. See Fig. 70.
User mA 2
The scale of the current controlled
output that controls the full range for the
output signal. Can be defined by the
advanced AnOut Min and AnOut Max
menus.
User Bipol
mA
3
Sets the output for a bipolar current
output, where the scale controls the
range for the output signal. Scale can be
defined in advanced menu AnOut Bipol.
0-10V 4
Normal full voltage scale configuration of
the output that controls the full range for
the output signal. See Fig. 70.
2–10V 5
The voltage output has a fixed threshold
(Live Zero) of 2 V and controls the full
range for the output signal. See Fig. 71.
User V 6
The scale of the voltage controlled
output that controls the full range for the
output signal. Can be defined by the
advanced AnOut Min and AnOut Max
menus.
User Bipol V
7
Sets the output for a bipolar voltage
output, where the scale controls the
range for the output signal. Scale can be
defined in advanced menu AnOut Bipol.
532 AnOut1 Setup
Stp 4-20mA
AC drive 1
Master
AC drive 2
Slave
Ref.
AnOut
Ref.
Default: 4 mA
Range: 0.00 – 20.00 mA, 0 – 10.00 V
Default: 20.00 mA
Range: 0.00–20.00 mA, 0–10.00 V
Default: 20.00 mA
Range: -10.00–10.00 V, -20.0–20.0 mA
5332 AnOut 1 Max
Stp 20.00mA
5333 AnOut1Bipol
Stp 20.00 mA
