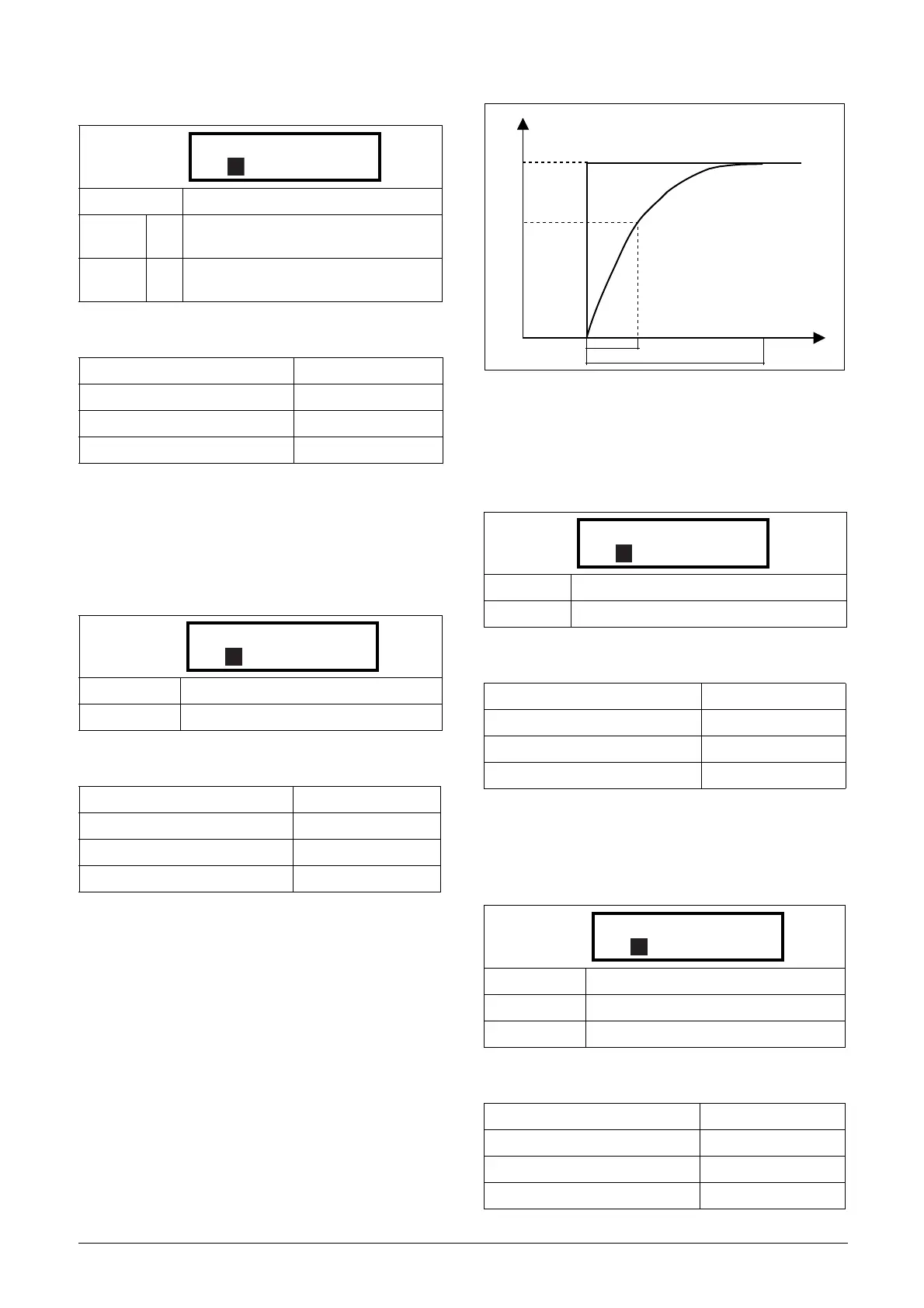

116 Functional Description Emotron AB 01-3694-01r2
AnIn1 Operation [5138]
Communication information
AnIn1 Filter [5139]
If the input signal is unstable (e.g. fluctuation reference
value), the filter can be used to stabilize the signal. A change
of the input signal will reach 63% on AnIn1 within the set
AnIn1 Filter time. After 5 times the set time, AnIn1 will
have reached 100% of the input change. See Fig. 102.
Communication information
Fig. 102
AnIn2 Function [514]
Parameter for setting the function of Analogue Input 2.
Same function as AnIn1 Func [511].
Communication information
AnIn2 Setup [515]
Parameter for setting the function of Analogue Input 2.
Same functions as AnIn1 Setup [512].
Communication information
Default: Add+
Add+ 0
Analogue signal is added to selected func-
tion in menu
[511].
Sub- 1
Analogue signal is subtracted from
selected function in menu
[511].
Modbus Instance no/DeviceNet no: 43208
Profibus slot/index 169/112
Fieldbus format UInt
Modbus format UInt
Default: 0.1 s
Range: 0.001 – 10.0 s
Modbus Instance no/DeviceNet no: 43209
Profibus slot/index 169/113
Fieldbus format Long, 1=0.001 s
Modbus format EInt
5138 AnIn1 Oper
Stp Add+
A
5139 AnIn1 Filt
Stp 0.1s
A
Default: Off
Selection: Same as in menu
[511]
Modbus Instance no/DeviceNet no: 43211
Profibus slot/index 169/115
Fieldbus format UInt
Modbus format UInt
Default: 4 – 20 mA
Dependent on Setting of switch S2
Selection: Same as in menu
[512].
Modbus Instance no/DeviceNet no: 43212
Profibus slot/index 169/116
Fieldbus format UInt
Modbus format UInt
AnIn change
100%
63%
Original input signal
Filtered AnIn signal
T
5 X T
514 AnIn2 Fc
Stp Off
A
515 AnIn2 Setup
Stp 4-20mA
A
