Emotron VFX 2.0 User Manual

Emotron AB 01-4429-01r2 Functional Description 81
Process Min [324]
This function sets the minimum process value allowed.
Communication information
Process Max [325]
This menu is not visible when speed, torque or frequency is
selected. The function sets the value of the maximum proc-
ess value allowed.
Communication information
Ratio [326]
This menu is not visible when speed, frequency or torque is
selected. The function sets the ratio between the actual proc-
ess value and the motor speed so that it has an accurate proc-
ess value when no feedback signal is used. See Fig. 61.
Communication information

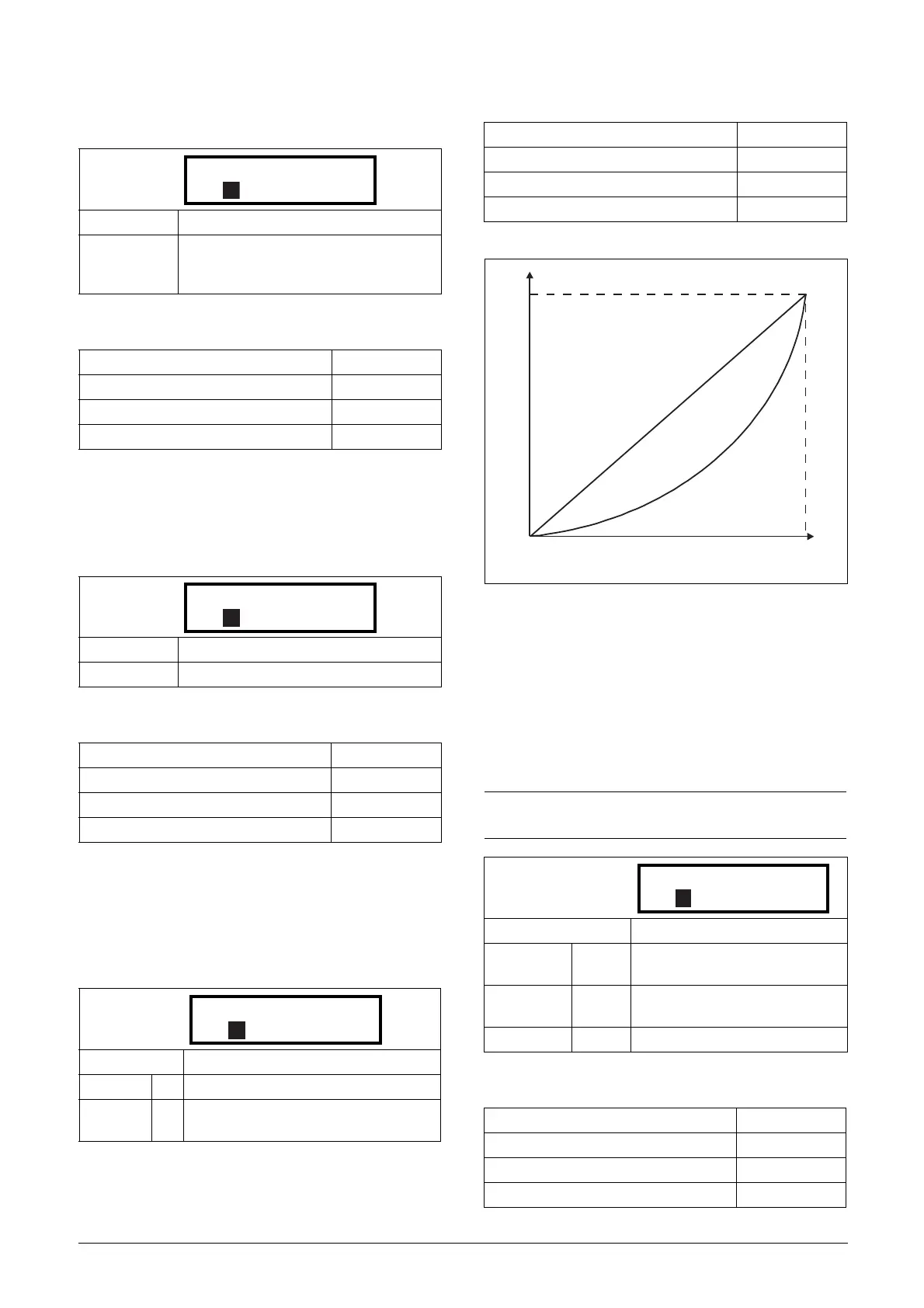

Fig. 61 Ratio
F(Value), Process Min [327]
This function is used for scaling if no sensor is used. It offers
you the possibility of increasing the process accuracy by scal-
ing the process values. The process values are scaled by link-
ing them to known data in the VSD. With F(Value), Proc
Min [327] the precise value at which the entered Process
Min [324] is valid can be entered.
Communication information
Default: 0
Range:
0.000-10000 (Speed, Torque, F(Speed),
F(Torque))
-10000– +10000 (F(AnIn, PT100, F(Bus))
Modbus Instance no/DeviceNet no: 43310
Profibus slot/index 169/214
Fieldbus format Long, 1=0.001
Modbus format EInt
Default: 0
Range: 0.000-10000
Modbus Instance no/DeviceNet no: 43311
Profibus slot/index 169/215
Fieldbus format Long, 1=0.001
Modbus format EInt
Default: Linear
Linear 0 Process is linear related to speed/torque
Quadratic 1
Process is quadratic related to speed/
torque
324 Process Min
Stp 0
A
325 Process Max
Stp 0
A
326 Ratio
Stp Linear
A
Modbus Instance no/DeviceNet no: 43312
Profibus slot/index 169/216
Fieldbus format UInt
Modbus format UInt
NOTE: If Speed, Torque or Frequency is chosen in menu
[321] Proc Source, menus [322]- [328] are hidden.
Default: Min
Min -1
According to Min Speed setting in
[341].
Max -2
According to Max Speed setting in
[343].
0.000-10000 0-10000 0.000-10000
Modbus Instance no/DeviceNet no: 43313
Profibus slot/index 169/217
Fieldbus format Long, 1=1 rpm
Modbus format EInt
Ratio=Linear
Ratio=Quadratic
Process
Process
Process
Min Max
unit
Max
[325]
Min
[324]
Speed
[341]
Speed
Speed
[343]
327 F(Val) PrMin
Stp Min
A
