48 | Setting Up the Printer
Installing and Connecting to an Optional Interface Card
To connect the printer to an optional FireWire or Ethernet card, you first
need to install the card in your printer. You also need the appropriate cable.
Follow the steps below.
1. Turn off your computer and your printer.
2. IMPORTANT: Unplug the printer from its electrical outlet. Not doing
so may cause damage to the printer and the card.
3. Disconnect any interface cables from the printer.

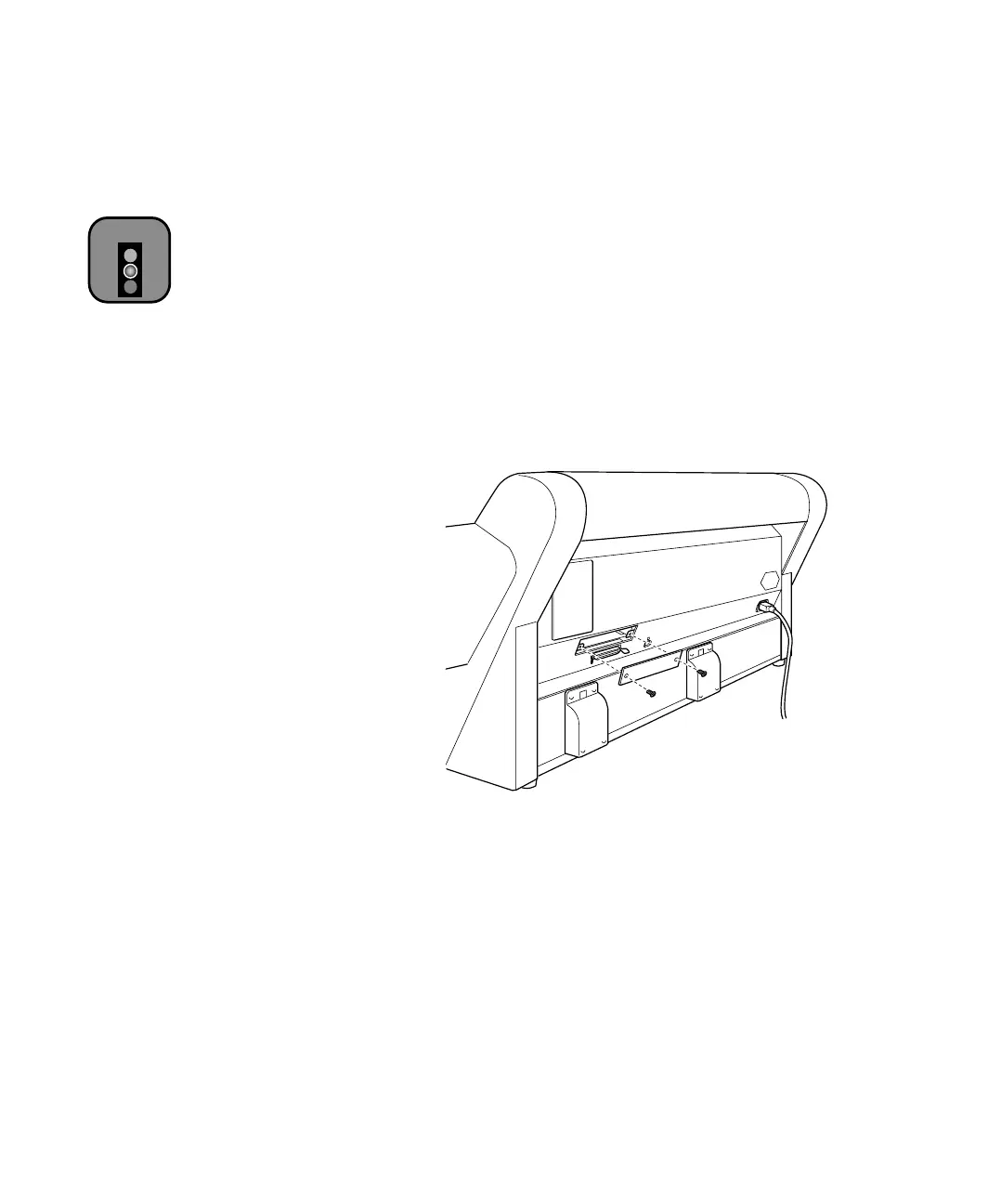

4. Remove the two screws and take off the interface slot cover as shown:
5. Set the DIP switches and jumpers on the card, if necessary. See the
manual that came with the card for details.
Caution
You must unplug the
printer from the power
outlet, or you may
damage the printer and
the card.

Epson 9600 Specifications

General

Maximum Resolution	2880 x 1440 dpi
Max Resolution (BW)	2880 x 1440 dpi
Max Resolution (Color)	2880 x 1440 dpi
Media Thickness	Up to 1.5 mm
Ink Type	UltraChrome Ink
Maximum Print Width	44 inches
Media Handling	Roll and Sheet
Ink Cartridge Type	Individual Cartridges
Connectivity	USB, Ethernet
Media Size	Up to 44 inches wide
Ink Colors	Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black
Media Width	Up to 44 inches
Interface	USB 2.0, Ethernet
Operating Systems	Windows, Mac OS
Print Technology	Inkjet
