Epson 9600 User Manual

1-61
Setting Up the Printer | 61
Examining the BI-D ALL Alignment Pattern
Follow the steps below when the BI-D ALL patterns finish printing.
IMPORTANT: Do not enter an adjustment value for K1 when
prompted, or your color alignments won’t be accurate.
1. Depending on the width of the paper loaded in the printer, more than
one set of patterns may be printed. Locate the patterns in the middle of
your printout. In the steps that follow, refer to those patterns to make
your adjustments, instead of the ones printed toward the left or right.
2. Look at the display screen on the printer. It shows
#1 K1.
Do not change the adjustment value for K1. Press
Enter and continue
with the following steps.
Note
Be sure to perform the
BI-D BLACK alignment
before running this one.

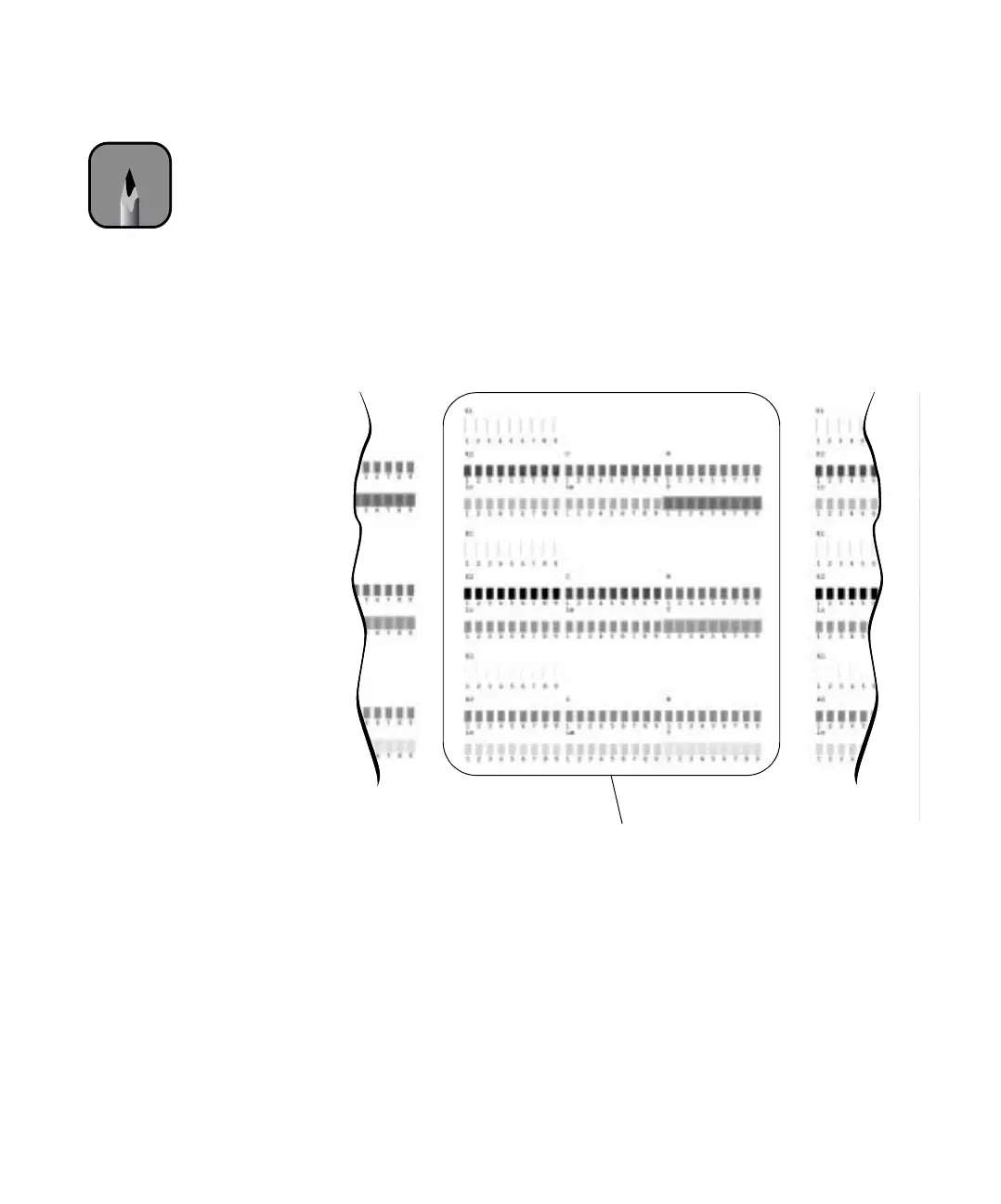

Refer to middle set of patterns
when making adjustments

Epson 9600 Specifications

General

Maximum Resolution	2880 x 1440 dpi
Max Resolution (BW)	2880 x 1440 dpi
Max Resolution (Color)	2880 x 1440 dpi
Media Thickness	Up to 1.5 mm
Ink Type	UltraChrome Ink
Maximum Print Width	44 inches
Media Handling	Roll and Sheet
Ink Cartridge Type	Individual Cartridges
Connectivity	USB, Ethernet
Media Size	Up to 44 inches wide
Ink Colors	Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black
Media Width	Up to 44 inches
Interface	USB 2.0, Ethernet
Operating Systems	Windows, Mac OS
Print Technology	Inkjet
