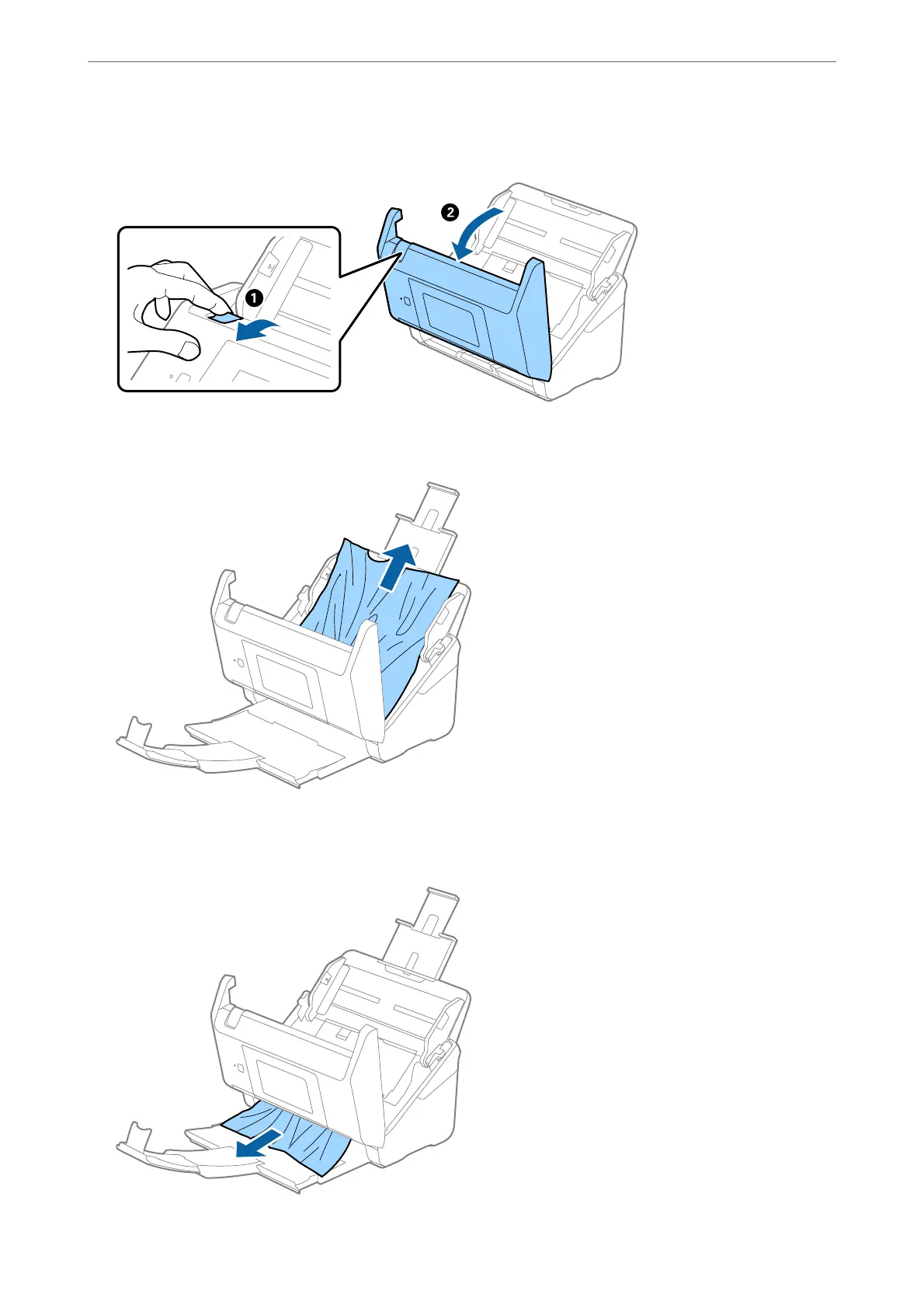

Pull the lever and open the scanner cover.

Carefully remove any originals remaining inside the scanner.

If you cannot pull originals straight up, carefully pull out any jammed originals from the output tray in the

direction of the arrow.

Solving Problems

Paper Feeding Problems

Removing Jammed Originals from the Scanner

212
