Epson LX-810 User Guide

Interface Specifications
.
“Direction” refers to signal direction as viewed from printer.
.
“Return” denotes twisted-pair return, connected at signal
ground level. Be sure to use a twisted-pair for each signal, and
to complete the connection on the return side. Cables should be
shielded and connected to the chassis of the host computer and
the printer.
Interface timing

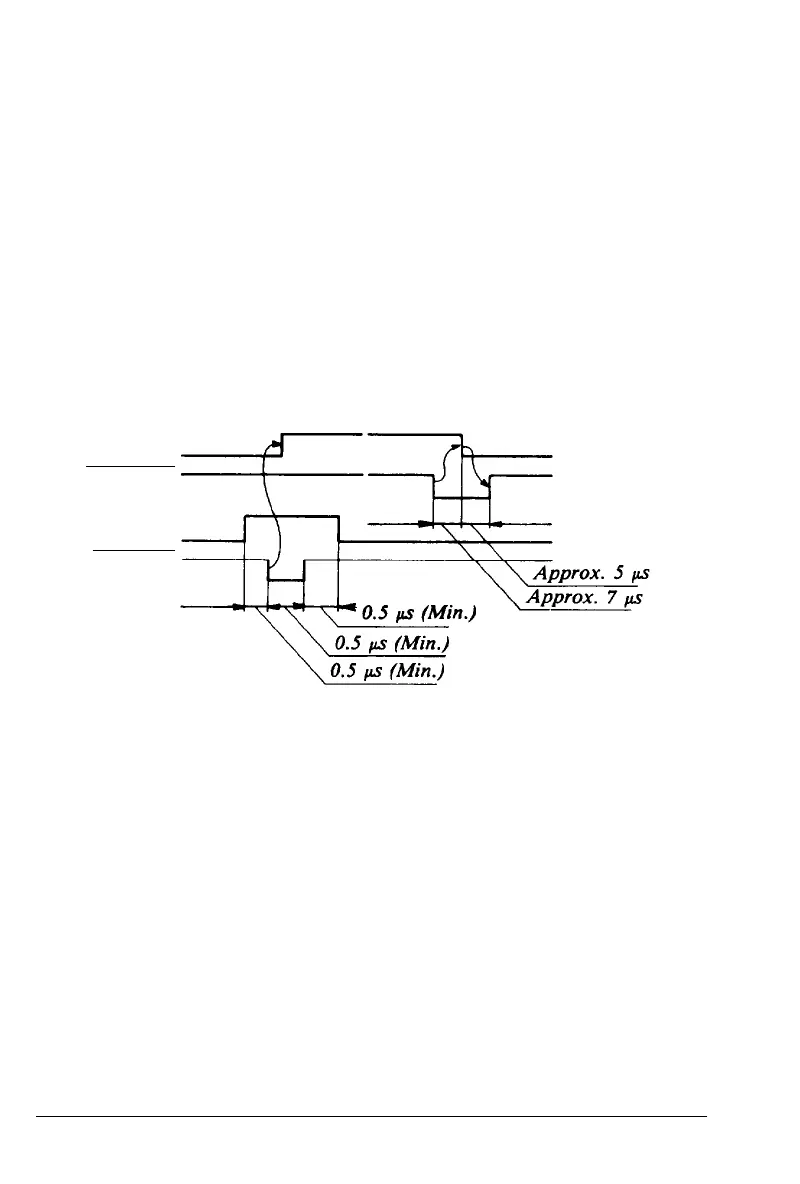

The figure below shows the timing for the parallel interface.
BUSY
ACKNLG
DATA
STROBE
Technical Specification 7-9

Epson LX-810 Specifications

General

Print Method	Impact dot matrix
Number of Pins	9
Character Sets	96 characters (USASCII)
Line Spacing	1/6 inch
Paper Path	Rear
Interface	Centronics parallel
Noise Level	55 dB (A)
