Functions 6. Operation Mode (TEACH/AUTO/TEST)
RC700 Series Rev.3 119
6.4.3 Setup from Control Device
Set the control device from EPSON RC+.
(1

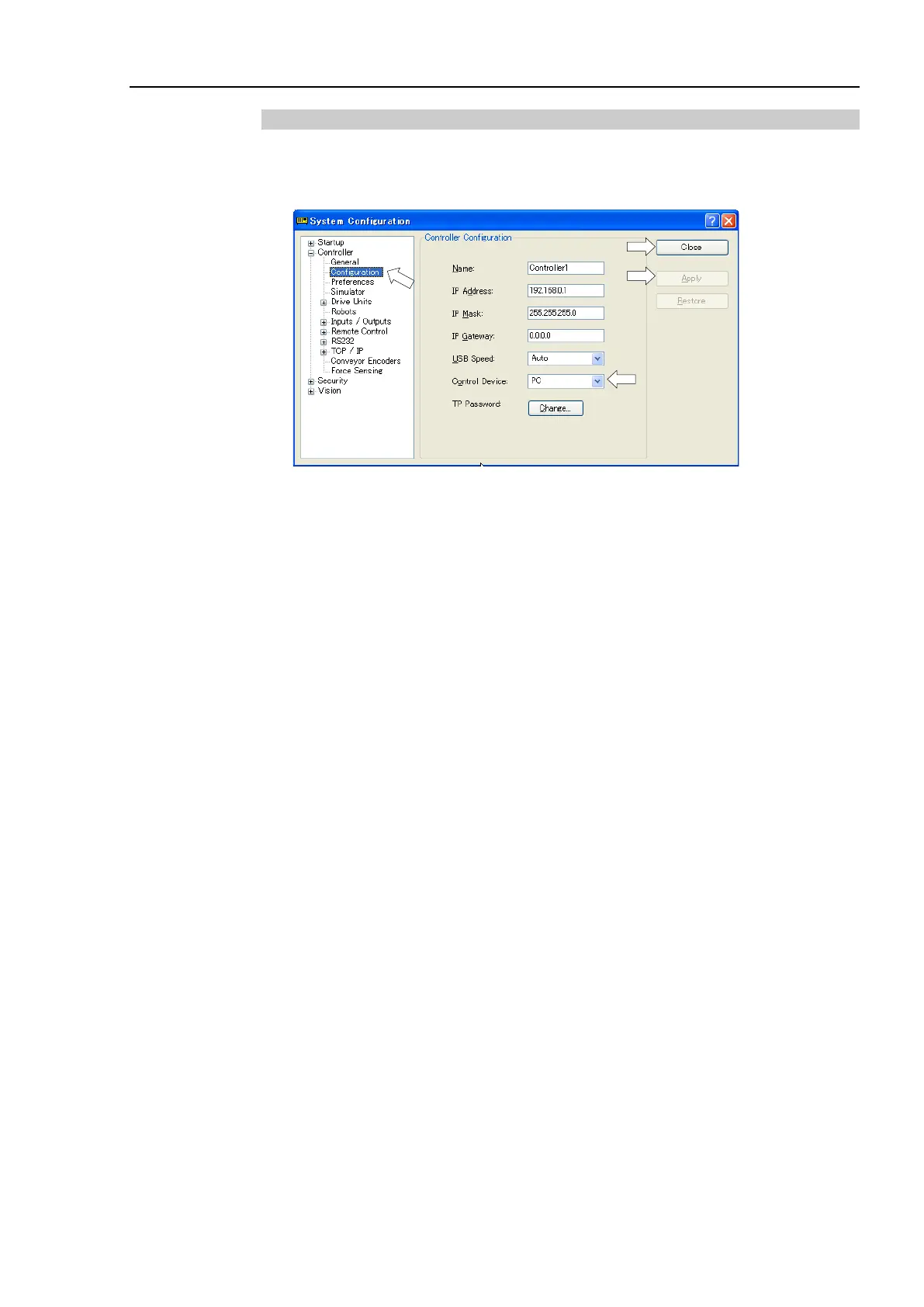

) Select EPSON RC+ menu-[Setup]-[System Configuration] to display the [System
Configuration] dialog.
(2)
(5)
(3)
(4)
(2) Select [Controller]-[Configuration].
(3) Select [Setup Controller]-[Control Device] to select the control device from the
following two types.
- PC
- Remote (I/O)
(4) Click the <Apply> button.
(5) Click the <Close> button.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
