Epson RC700 Series Original Instructions

Installation 2. Installation
52 RC700 Series Rev.3

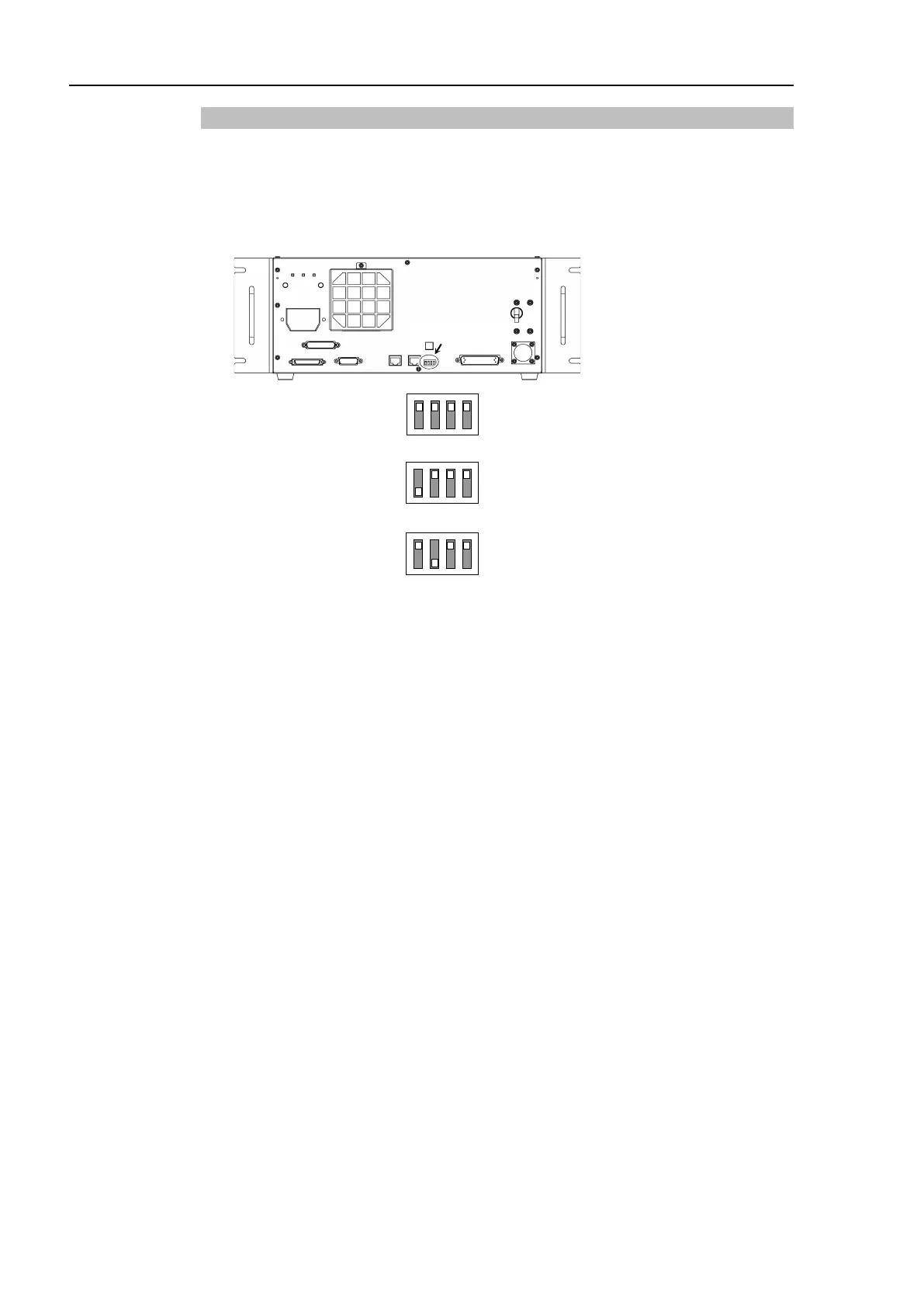

2.7.4 Drive Unit Setup
The DIP switch is equipped on the front side to configure 1st, 2nd, and 3rd Drive Unit.
Follow the steps below to set up the Drive Unit.
(1)
Turn OFF the Drive Unit.
(2)
Change the DIP
switch.
DIP swicth
1
st
Drive Unit
1 2 3 4
ON
OFF
ALL OFF
2
nd
Drive Unit
1 2 3 4
ON
OFF
ON : 1
OFF : 2, 3, 4
3
rd
Drive Unit
1 2 3 4
ON
OFF
ON : 2
OFF : 1, 3, 4
(3)
A
ttach the DU number label on Drive Unit.
DU1 : 1
st
Drive Unit
DU2 : 2
nd
Drive Unit
DU3 : 3
rd
Drive Unit
(4)
Plug in
the power connector. Turn ON the Drive Unit.

Epson RC700 Series Specifications

General

Model	RC700 series
Category	Controller
Programming Language	SPEL+
Safety Standard	ISO 10218-1
Type	Robot Controller
Communication Interface	Ethernet, RS-232, USB
Operating Temperature	0°C to 45°C (32°F to 113°F)
Humidity	20% to 80% (non-condensing)
Number of controllable robots	4
